Custom Vacuum Fixtures
for highly engineered parts
Looking for a custom solution? Our engineered Vacuum fixtures can be tailored to meet specific needs with options for internal vacuum generation or external feed.
Manual steadies rests
Rigid construction for heavy duty applications
With three arms approximately 120 degrees, manually adjusted by leadscrew.
Telbrook setting tables
customized APS setting tables 800-1200
Accurate to within 0.010, Rotation speed variable between 0 and 3 r.p.m. Hand set jogging function with 3 speed selections Reduce set up time for loading component to fi xture & fi xture to machine, Safety pull chord
UNIVERSAL GRIPPERS 2 FINGERS
2PXS, 2PXM, and 2PXL
Proofline-sealed and with a clamping force facilitated by a piston and a two-fingers low-weight design, UNIVERSAL GRIPPERS provide spring force mechanisms for both OD and ID clamping.
NEWS & EVENTS
Custom vacuum fixtures for highly engineered parts
Looking for a custom solution? Our engineered Vacuum fixtures can be tailored to meet specific needs with options for internal…
Read MoreHIGHLIGHTED PRODUCTS
BP-D BP-M
The BP chucks brings all the advantages of the sealed chucks in our “proofline” series also to the open center standard chucks.
GO TO CATALOGIEP-D Ø 400-1600
New 6 jaws power chucks IEP with 2+2+2 clamping High accuracy machining of thin walled components became an important market.

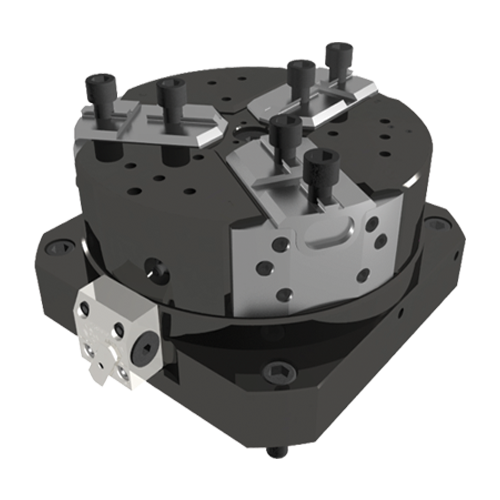

GO TO CATALOGSTV-2 125-180-225
The modern hi-production processes for Industry 4.0 applications requested a new range of products: the Twin Vices.
GO TO CATALOGSJL-C
The new SJL six-jaw chuck from SMW-AUTOBLOK offers the highest accuracy for the sensitive clamping of workpieces sensitive to deformation.

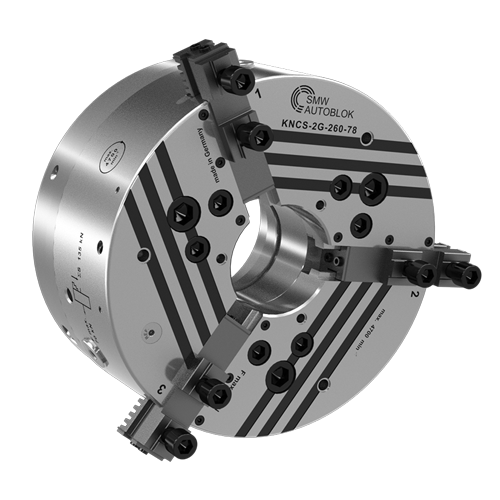

GO TO CATALOGKNCS-2G
35 years after the invention of the world’s best-selling quick jaw change KNCS chucks, SMW-Autoblok has managed to solve the main drawback of this type of spindle.
GO TO CATALOGCCS
The CCS chuck changing system can be installed onto new machines or can be retrofitted to any existing CNC lathe.
GO TO CATALOGSCG
2+2 jaw hydraulic actuation. Quick change center or adjustable. Oil bath lubricated and low maintenance.
GO TO CATALOGAP-D AP-M AP-C
The market requested a new line of chucks sealed withouth through hole in high production processes where the part could be clamped with the simple radial movement.
GO TO CATALOGCENTCO4
The new CENTCO4 SMW-Autoblok chuck is the perfect clamping solution for a wide range of workpieces geometry.
GO TO CATALOGMM e-motion
Completely new clamping functions like self centering, compensation or individual jaw movement - within one chuck.
GO TO CATALOGHIGHLIGHTS
SALES
Our sales local team and sales contacts worldwide are ready to help you with your needs. Wherever you are in the world, we have someone close to support you.
CATALOGS
Discover all SMW‑AUTOBLOK's current product lines and new products in our catalogs. They're designed to help you find the product you need.
INTERNATIONAL FAIRS
SMW‑AUTOBLOK has been at EMO Hannover 2023, the world’s premier trade fair for the metalworking industry.
News from the most innovative workholding company
