AUTOMATIC+3 FEEDINGS ROTARY PLATE
AUTOMATIC Rotary Plate Ø202
with 3 pneumatic feedings on pallet
with APS 190 automatic operation
Automatic or manual tooling fast set-up for Ø 170 and Ø 210 turning workholding
- Pallet/Tooling fast set-up on turning spindles
- 3 pneumatic feedings available on pallet
- Positioning accuracy < 0,005 mm
- Case hardened main components to assure better accuracy and long life
- Pneumatic opening (OPEN) / Closing by spring + Turbo function
- Opening/closing automatically operated
AUTOMATIC Rotary Plate Ø260
with 3 pneumatic feedings on pallet
with APS 250 automatic operation
Automatic or manual tooling fast set-up for Ø210-250 and Ø 315 turning workholding
- Pallet/Tooling fast set-up on turning spindles
- 3 pneumatic feedings available on pallet
- Positioning accuracy < 0,005 mm
- Case hardened main components to assure better accuracy and long life
- Pneumatic opening (OPEN) / Closing by spring + Turbo function
- Opening/closing automatically operated
AUTOMATIC Rotary Plate Ø330
with 3 pneumatic feedings on pallet
with 3 APS 140 automatic operation
Automatic or manual tooling fast set-up for Ø330 turning workholding
- Pallet/Tooling fast set-up on turning spindles
- 3 pneumatic feedings available on pallet
- Positioning accuracy < 0,005 mm
- Case hardened main components to assure better accuracy and long life
- Pneumatic opening (OPEN) / Closing by spring + Turbo function
- Opening/closing automatically operated
AUTOMATIC Rotary Plate Ø420
with 3 pneumatic feedings on pallet
with 4 APS 140 automatic operation
Automatic or manual tooling fast set-up for Ø330 turning workholding
- Pallet/Tooling fast set-up on turning spindles
- 3 pneumatic feedings available on pallet
- Positioning accuracy < 0,005 mm
- Case hardened main components to assure better accuracy and long life
- Pneumatic opening (OPEN) / Closing by spring + Turbo function
- Opening/closing automatically operated
AUTOMATIC Rotary Plate Ø520
with 3 pneumatic feedings on pallet
with APS 190 and 4 APS 160 automatic operation
Automatic or manual tooling fast set-up for Ø500 turning workholding
- Pallet/Tooling fast set-up on turning spindles
- 3 pneumatic feedings available on pallet
- Positioning accuracy < 0,005 mm
- Case hardened main components to assure better accuracy and long life
- Pneumatic opening (OPEN) / Closing by spring + Turbo function
- Opening/closing automatically operated

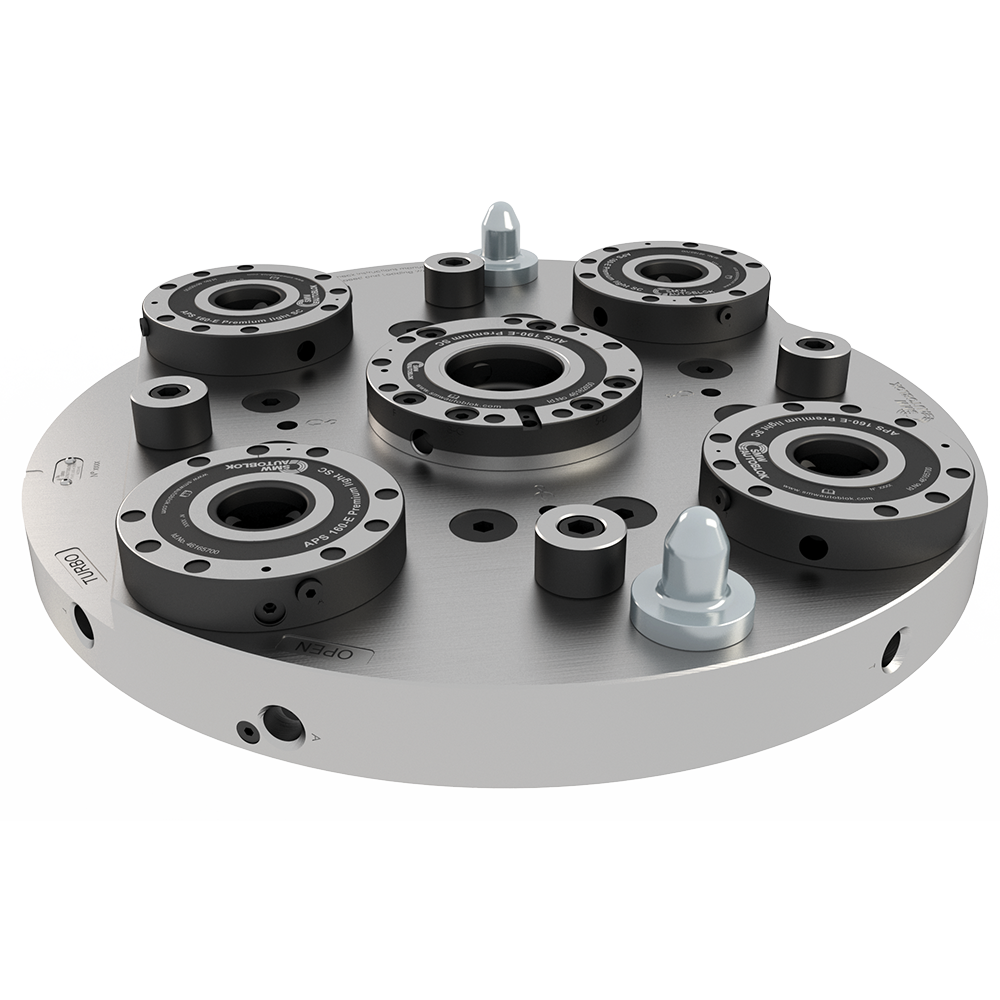

AUTOMATIC Rotary Plate Ø650
with 3 pneumatic feedings on pallet
with APS 190 and 4 APS 160 automatic operation
Automatic or manual tooling fast set-up for Ø500 turning workholding
- Pallet/Tooling fast set-up on turning spindles
- 3 pneumatic feedings available on pallet
- Positioning accuracy < 0,005 mm
- Case hardened main components to assure better accuracy and long life
- Pneumatic opening (OPEN) / Closing by spring + Turbo function
- Opening/closing automatically operated
Rotary Plate accessories
Pneumatic rotating manifolds / Adaptors / Cover
Accessories available for Rotary Plates
- Pneumatic manifolds: 4 PNEUMATIC Feedings ROTATING MANIFOLD to use with standard RU 2-22 rotating joint
- Pneumatic manifolds: 3 PNEUMATIC Feedings ROTATING MANIFOLD for APS modules Automatic operation
- Adaptors FLANGE ISO-A: direct, reduction and increasing assembly
- Covers: magnet protection covers for 140 APS and 160 APS
- Covers: magnet protection covers for 190 APS and 250 APS
