Chuck switching system / Chuck flanges / Top jaws / T-nuts / Grippers / Gripping force meter / Grease / Accessories

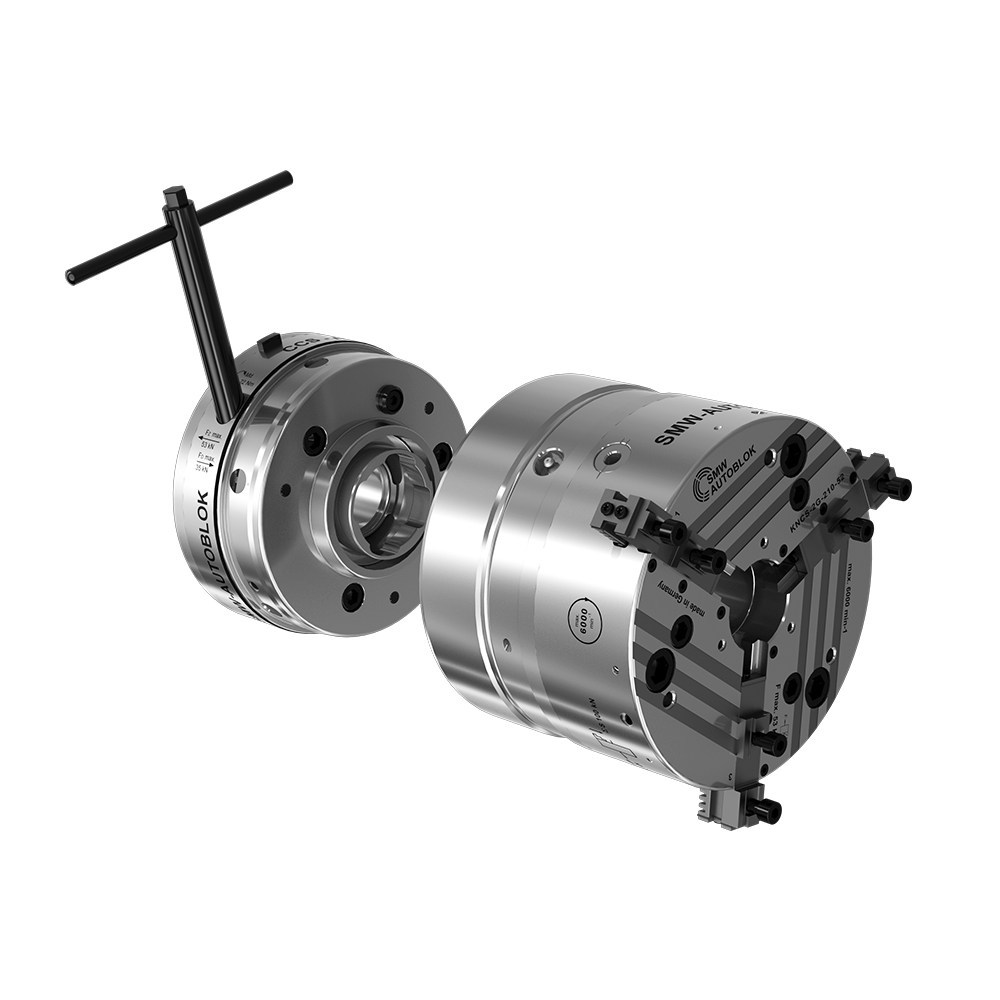

CCS

CHUCK SWITCHING SYSTEM

Manual chuck switching system

• Highest repeatability and change-over accuracy
• Automatic coupling of chuck in a single actuation
• Large through hole
• Optical control for the locking status

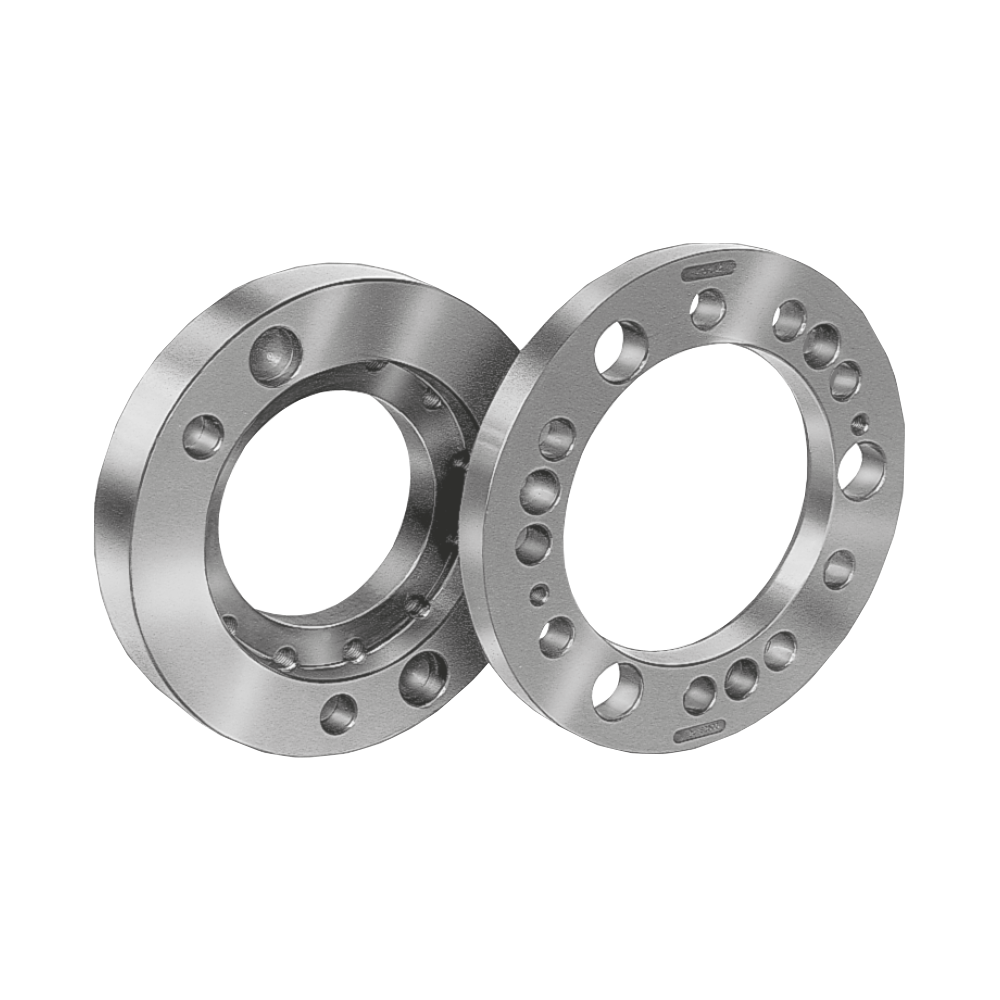

ISO-A FLANGE

DIN 55026 / ISO-A 702/1

Mounting fl anges on short taper spindle noses

• Direct and indirect mounting
• Reduction and increase mounting

TOP JAWS, T-NUTS

Soft and hard top jaws

T-nuts

Hard top jaws, Soft top jaws and T-Nuts

GRIPPERS UGE FGH + HDS CLAMPING TIPS MGH

Grippers and Clamping tips

Grippers, special steel hardened-Grippers carbide, clamping tips

PRECISION GRIPPER G14 + G25

Grippers

Precision gripper controlled penetration

• With pull down effect

PRECISION GRIPPER G15 + G30

Grippers

Precision gripper controlled penetration

• For highest torque transmission

ROTORI

Jaw boring set to bore jaws on the chuck

• high flexibility
• high precise
• Increased profitability

BORING RINGS ADS

Boring rings

Boring rings to bore jaws on the clamping chuck

• Complete set to bore all diameters from 20 to 150 mm
• Set consisting of 36 rings Ø 20-50 mm each stepped 2 mm
• Clearly organized in packing box
• Rings from Ø 105 mm and up have 3 tapped holes for clamping bolts to machine jaws for internal gripping
• Rigid design. Rings are 10 mm thick, quenched for greater durability
• Loading tool is used for the safe insertion of the rings without danger of injuries

RPS

Dress and cleaning plate

Dress and cleaning plate RPS for dressing and cleaning of top jaw serrations

• 2 different serrations per plate (upper and lower side)

GFT-X 4.0

Gripping force tester

Gripping force tester GFT-X 4.0 multi device tablet with expert apps

• Wireless handheld with rechargeable battery
• Dynamic or static gripping force measuring
• Speed measuring
• Display Software

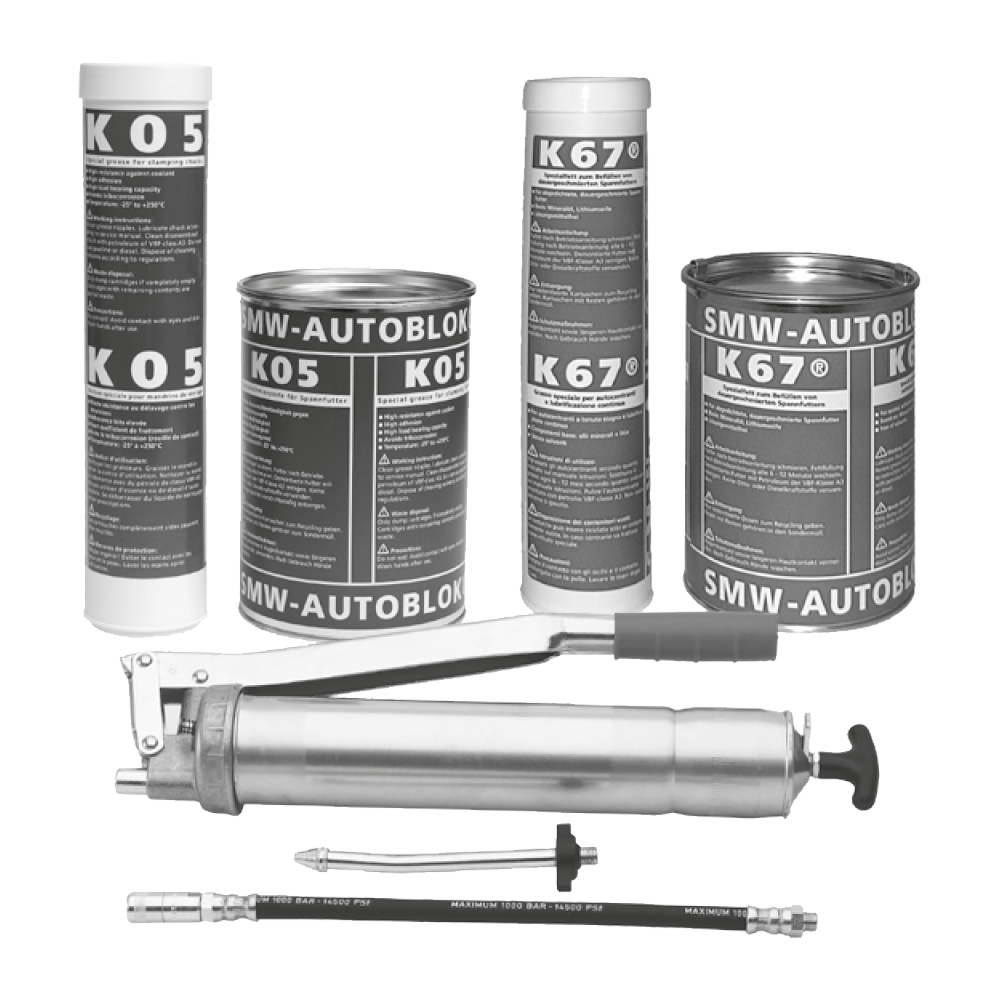

GREASE K05 K67 GREASE PUMP

Grease for chucks

Grease to lubricate the chucks

• Grease K05 for manual and power chucks
• Grease K67 special grease for sealed chucks included proofline® series
• Grease gun important for safe operation and maintenance
