Closed center cylinders / Open center cylinders / Double piston cylinders

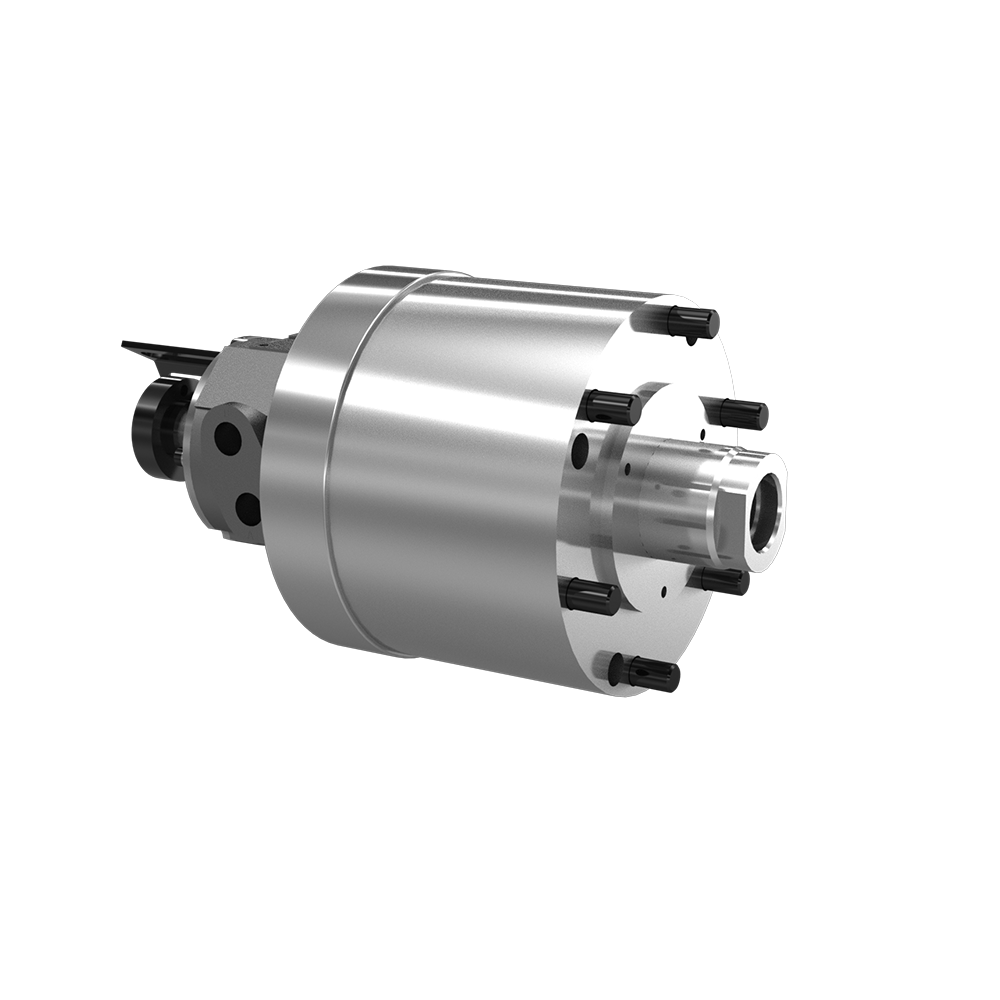

SIN-S
Closed center
rotating hydraulic cylinder
Closed center rotating hydraulic cylinders
- Up to 70 bar
- Central bore for media supply
- Stroke control via proximity switch or linear positioning system

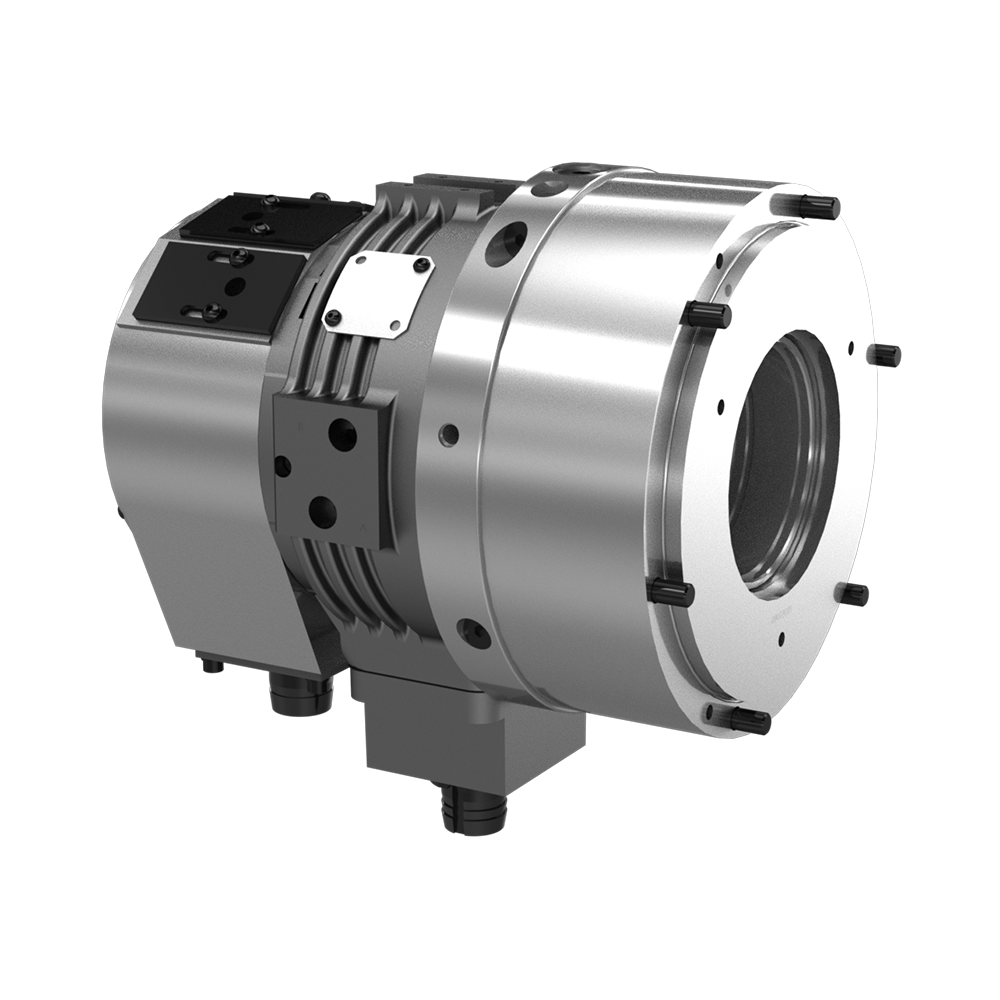

VNK-T2
Open center
rotating hydraulic cylinder
Open center rotating hydraulic cylinders
- Up to 45 bar
- Through-hole Ø37.5-127.5mm
- Short design / low mass
- Stroke control via proximity switch or linear positioning system

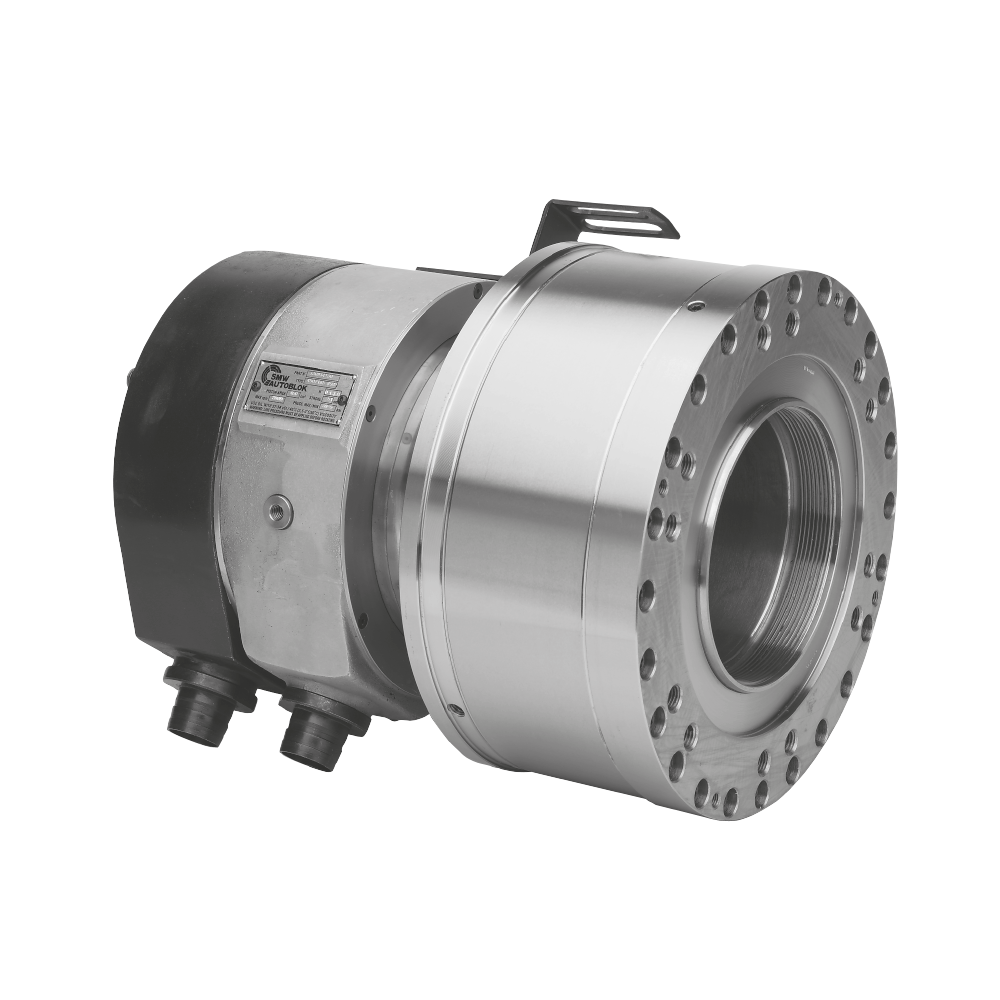

VSG
Open center
rotating hydraulic cylinder
Open center rotating hydraulic cylinder with extra large through hole
- Up to 30 bar
- EXTRA large through hole Ø 165-204 mm
- Stroke control via proximity switch

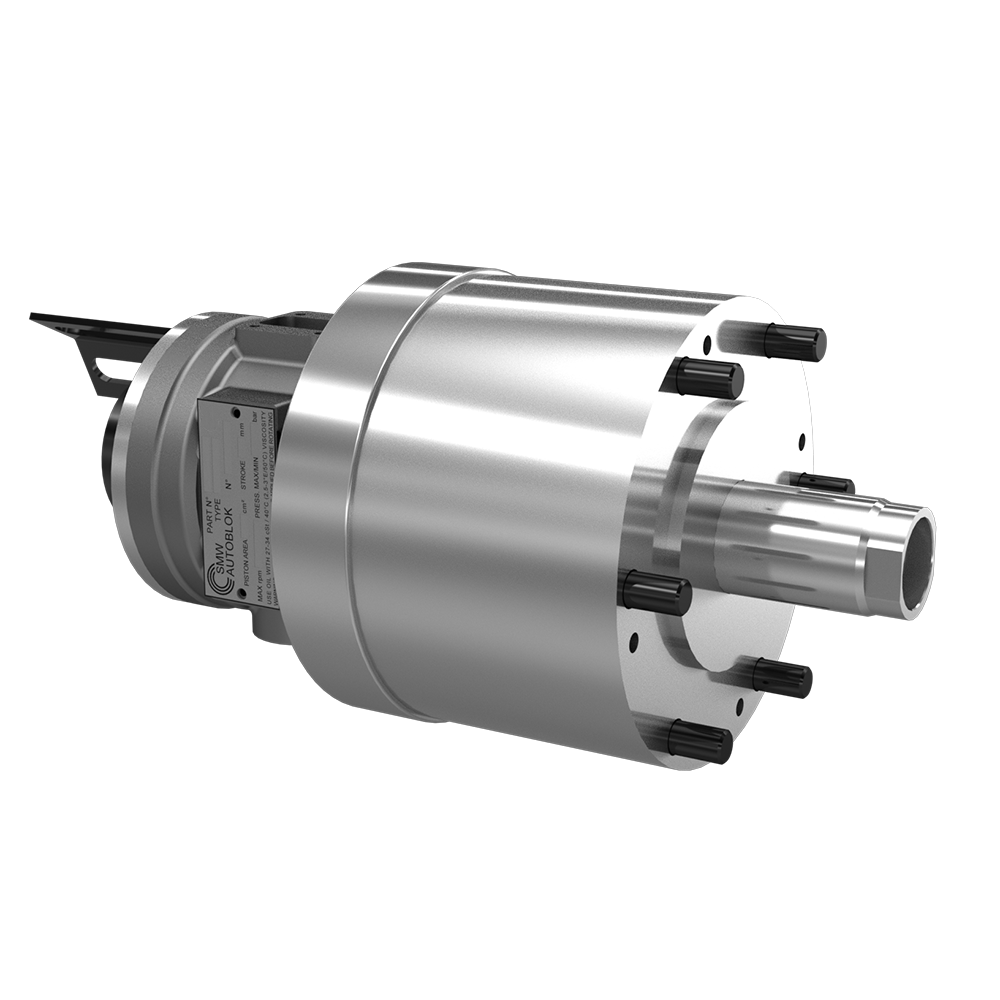

SIN-HL
Closed center
rotating hydraulic cylinder
Closed center rotating hydraulic cylinders
- High-low clamping
- Up to 70 bar
- Central bore for media supply
- Stroke control via proximity switch or linear positioning system

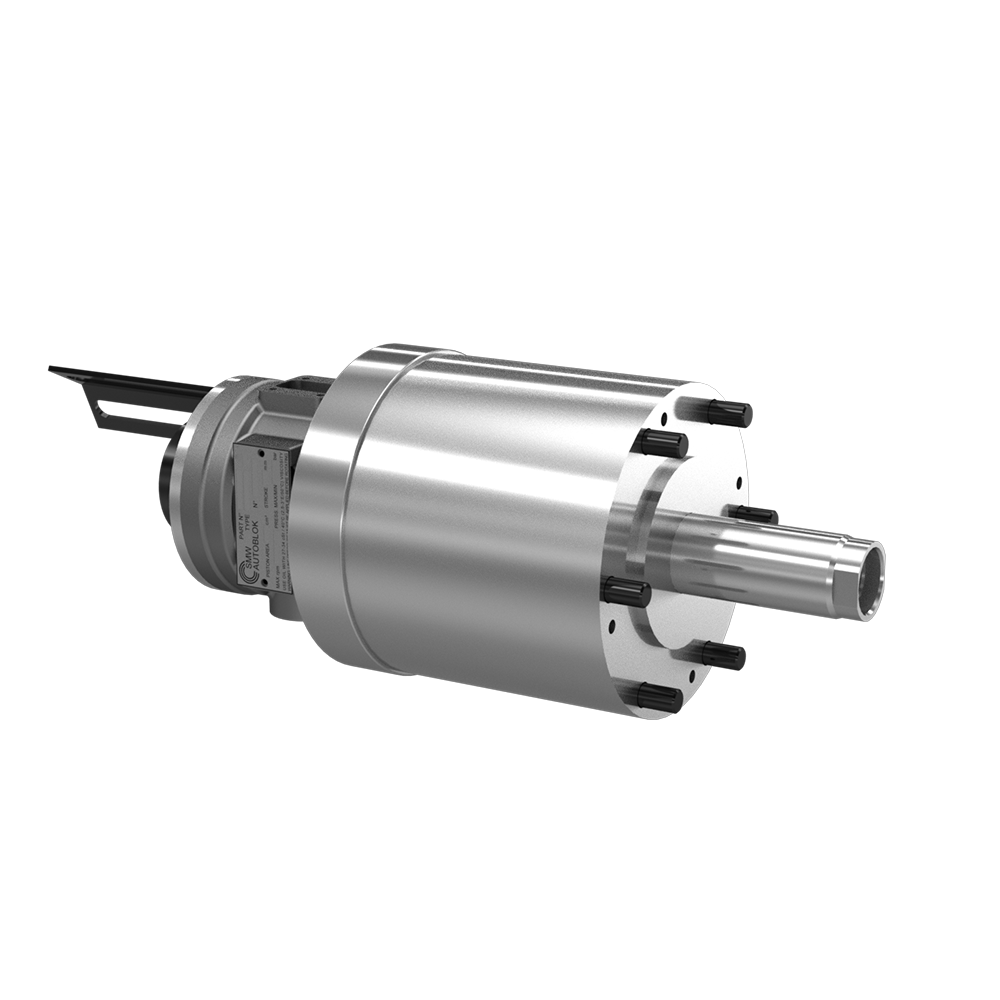

SIN-L
Closed center
rotating cylinder
Closed center rotating hydraulic cylinders
- EXTRA long stroke
- Up to 70 bar
- Central bore for air, coolant or oil
- Stroke control via proximity switch or linear positioning system

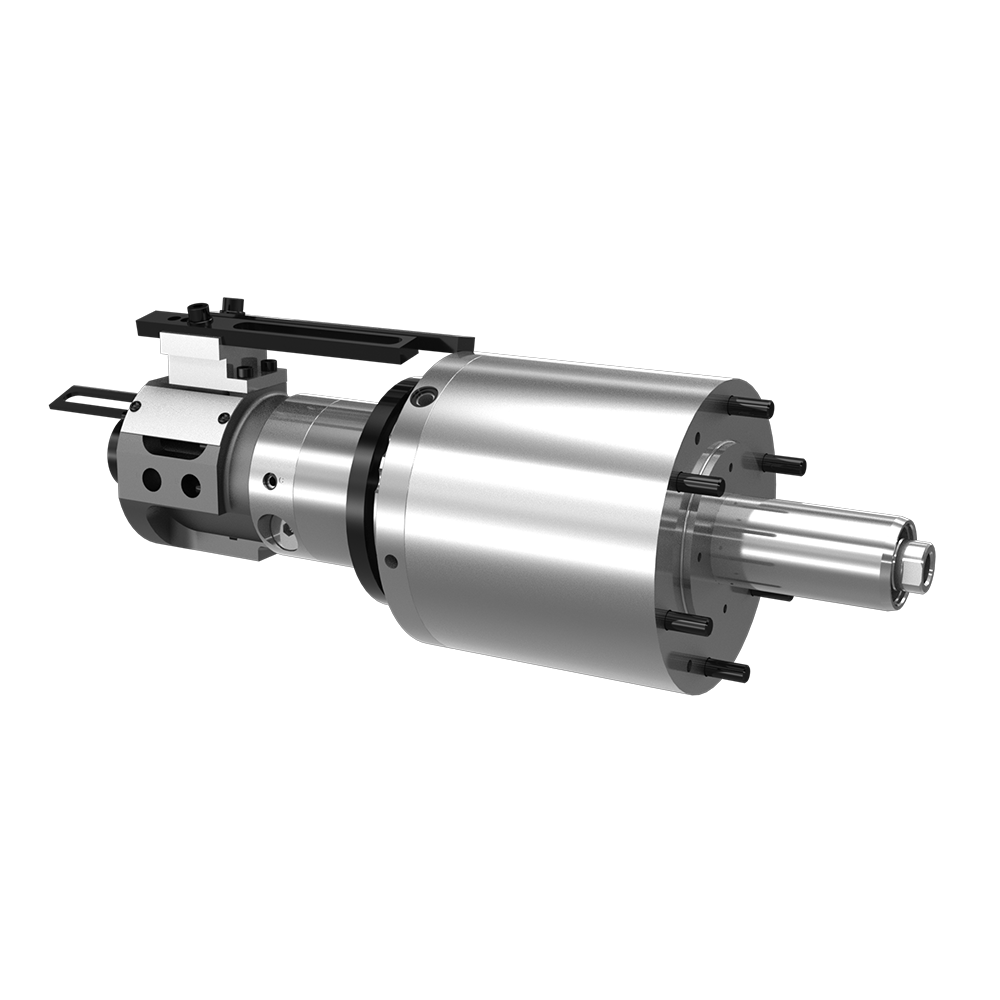

DCN DCU DCR
Rotating hydraulic cylinder with 2 independent pistons
Double piston rotating hydraulic cylinders
- Modular system for different piston strokes
- Up to 70 bar
- Central bore for air / coolant / oil
- Stroke control via proximity switch or linear positioning system

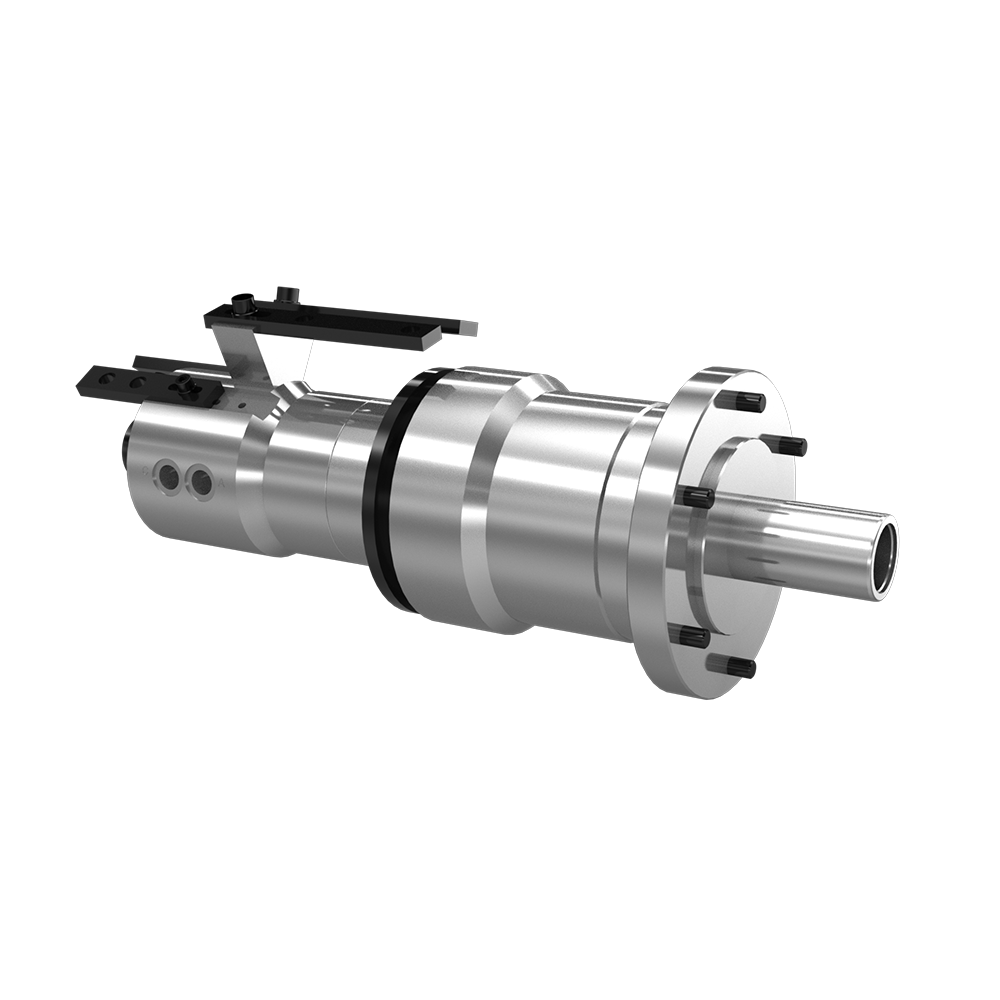

ZHVD-SZ
Rotating hydraulic cylinder with 2 independent pistons
Double piston rotating hydraulic cylinders
- Up to 80 bar
- Central bore for air / coolant / oil
- Stroke control via proximity switch or linear positioning system

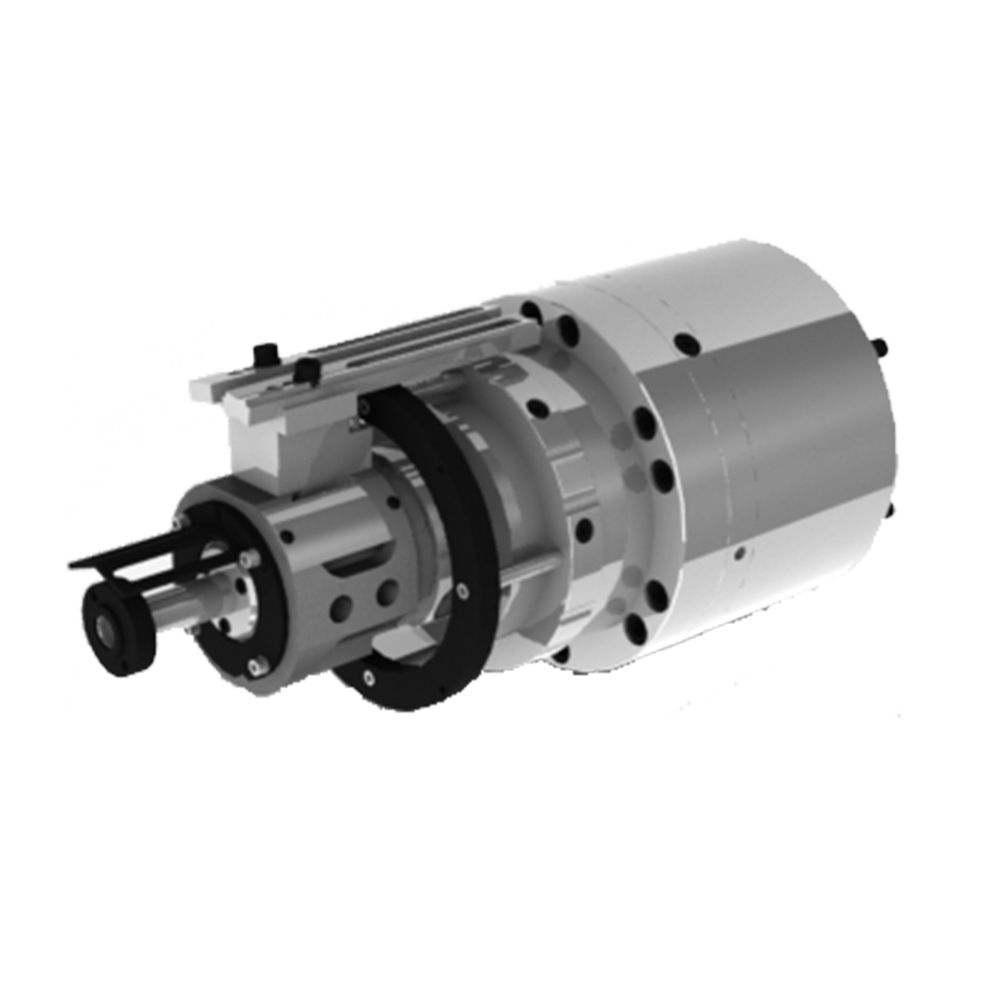

DCE
Equal piston area and stroke
2 independent pistons
Double piston rotating hydraulic cylinders
- Double piston rotating hydraulic cylinder
- Up to 70 bar
- Central bore for air / coolant / oil
- Stroke control via proximity switch or linear positioning system

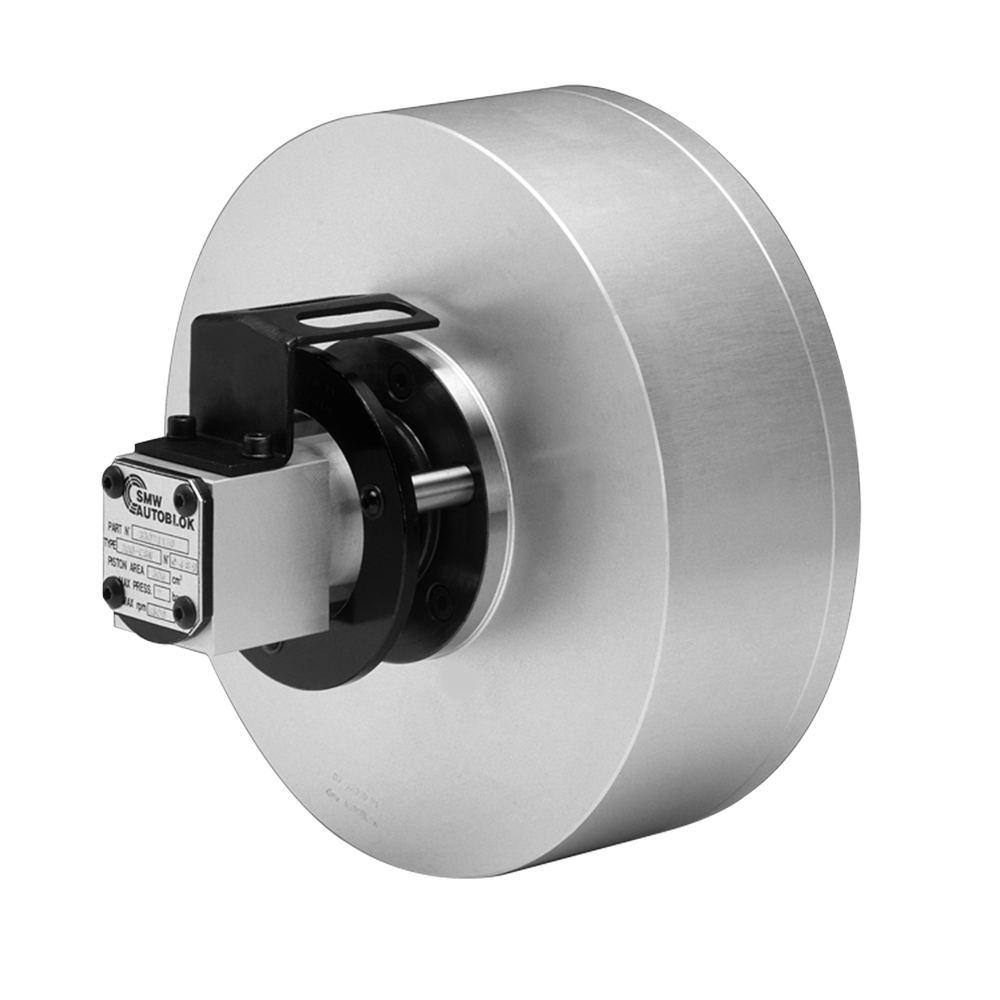

CSN
Closed center
pneumatic cylinders
Closed center rotating pneumatic cylinders
- Up to 7 bar
- Stroke control
- Safety valve (optional)

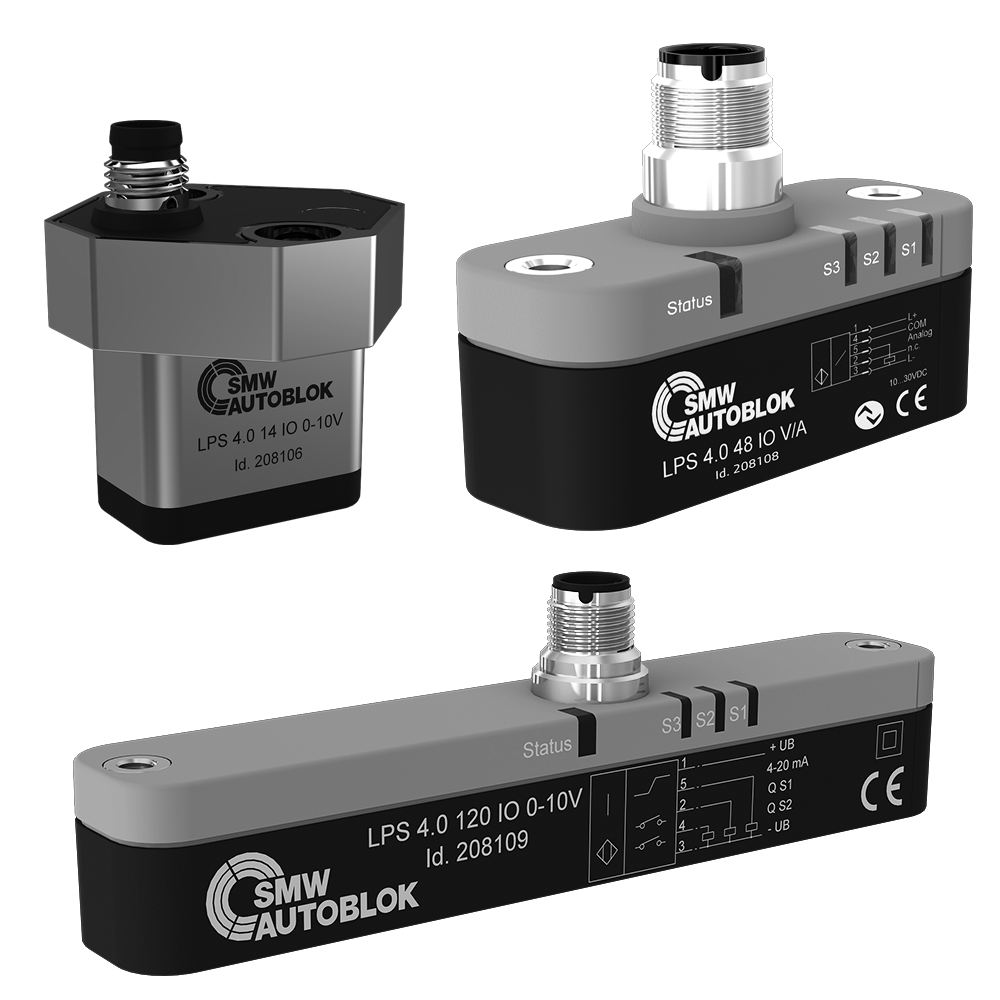

LPS 4.0
Linear Position Sensor
Sensore di posizione Lineare
- per cilindri idraulici SMW-AUTOBLOK
- campo di misura: 14 mm
- campo di misura 48 mm
- campo di misura 120 mm

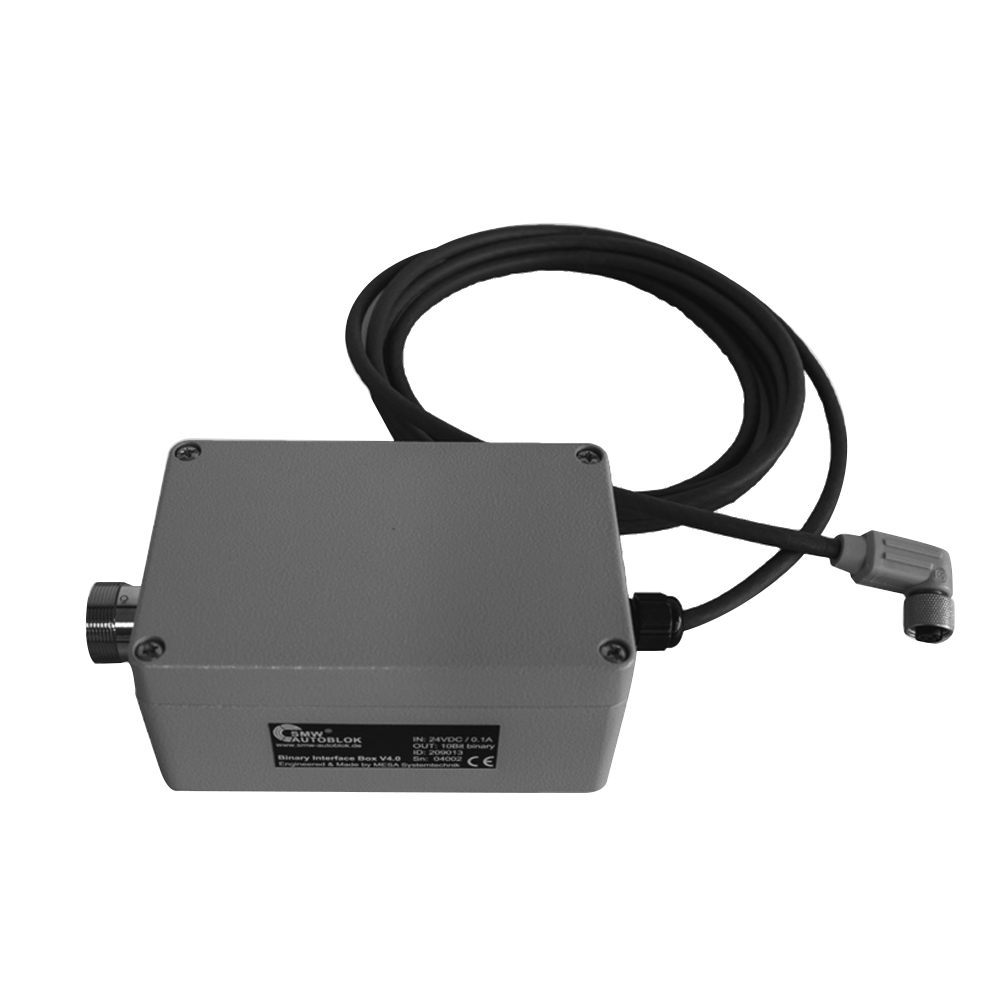

Binary Box 4,0
Binary Interface Box
- Binary output signal
- Suitable to LPS 4.0 series
- Easy setup – Plug & Play
- Binary signal backward compatible to LPS 4.0

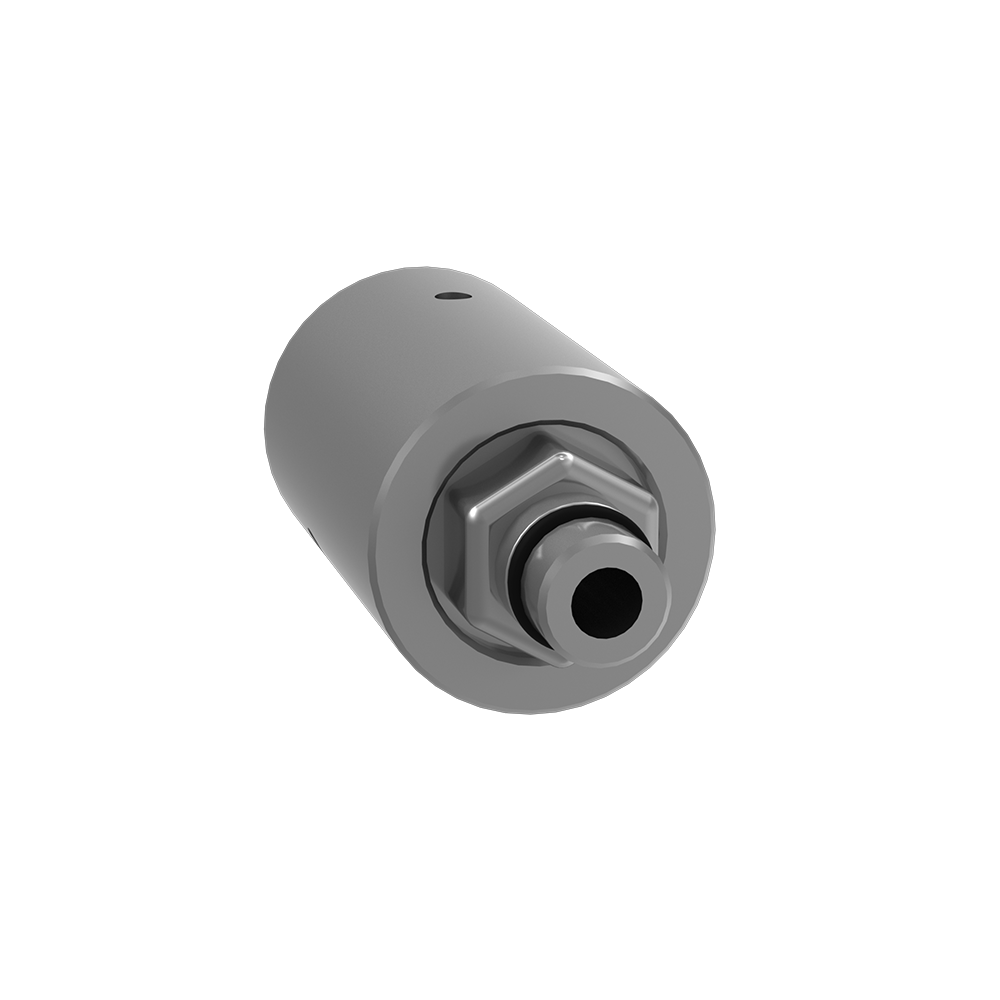

RU-1-10
Rotary union for 1 medium
RU-1-16
Rotary union for 1 medium
Rotary union for 1 medium for closed and open center cylinders
- Media: air, oil or coolant

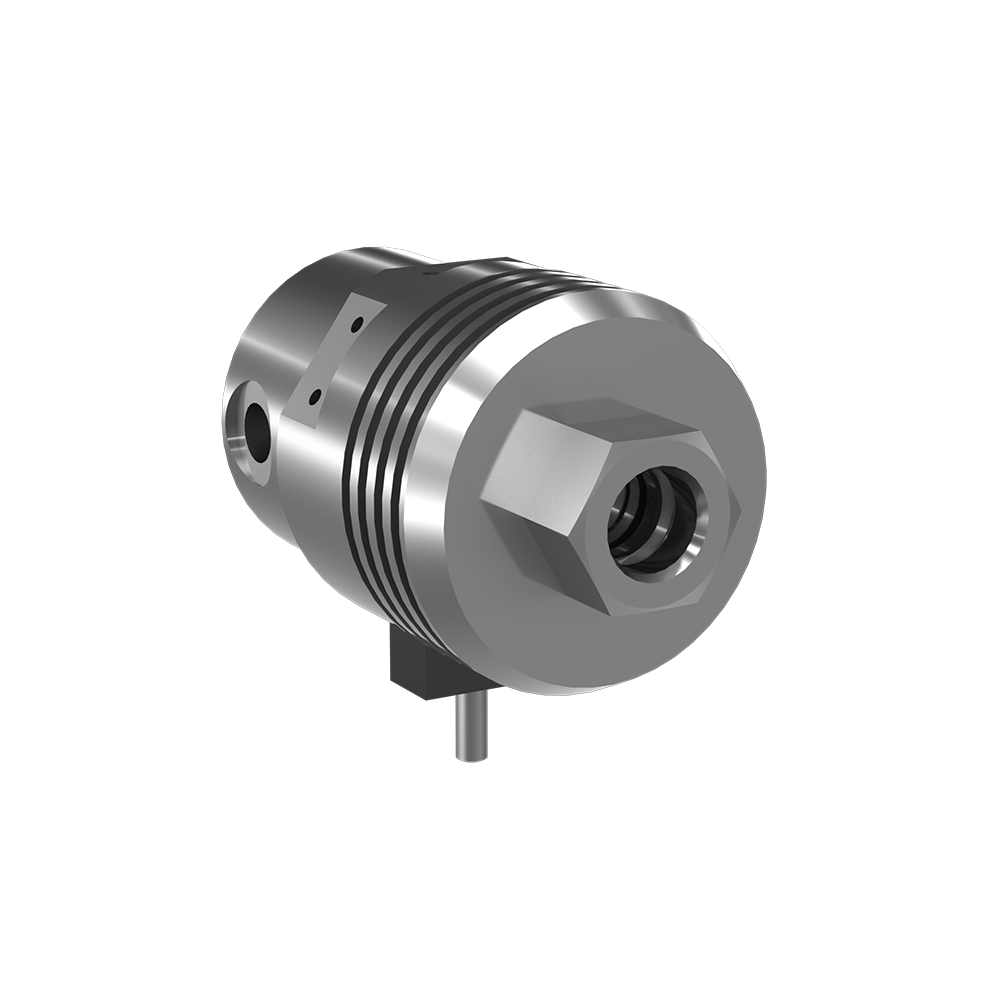

RU-2-22
Rotary union for 2 media
Rotary union for 2 media for closed and open center cylinders (not for ZHVD-DFR)
- Media: air, oil or coolant
