Mandrins statiques pneumatiques or hydrauliques
MANUAL JACK - MJ
Manual Jack to operate a power chuck
with Ø300-520 Plain Back
The large variety of SMW-Autoblok power chucks allow the customer to clamp the workpiece with the best chuck alternatives
- Irreversible mechanism based on an operating screw driven by a worm gear
- With spring energy storage for safe clamping
- Sealed mechanism and constantly lubricated
- Very low profile and possibility to integrate it in the machine pallet

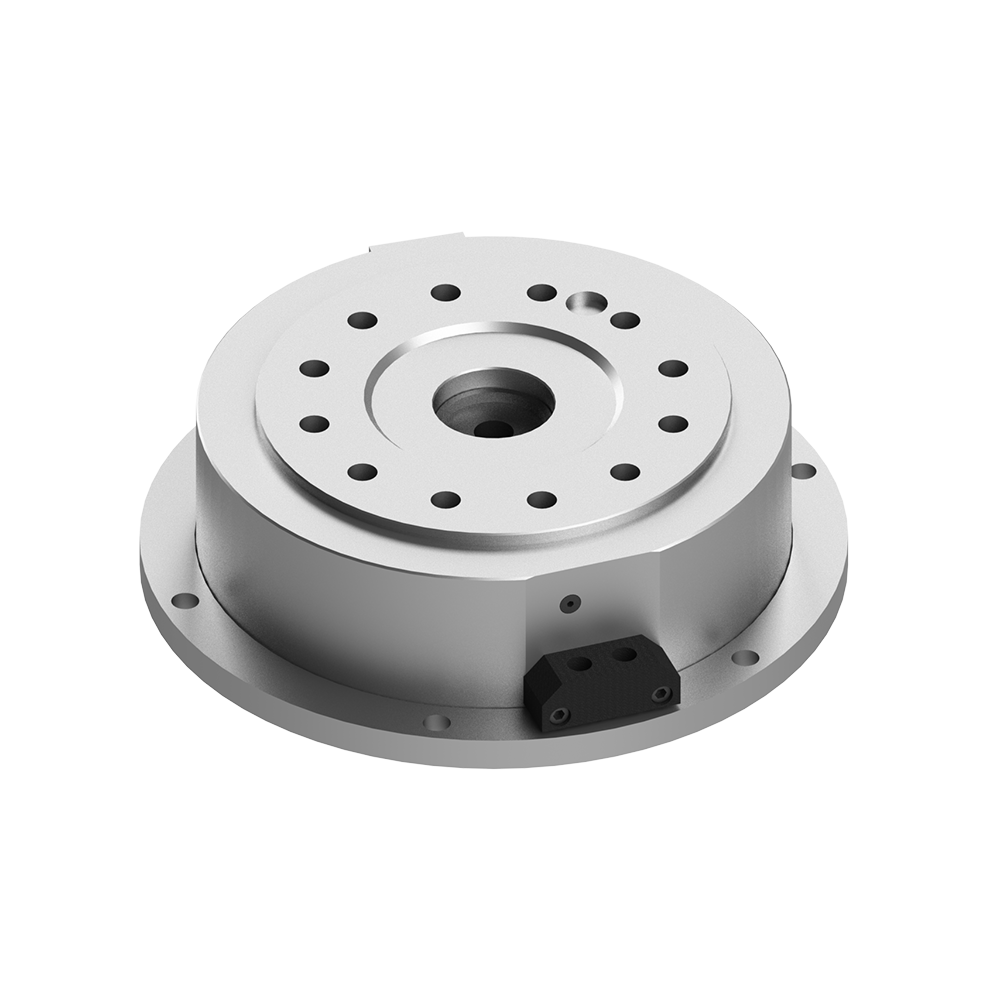

USC
Cylindres statiques pneumatiques
Cylindres statiques pneumatiques Ø 140 - 260 mm
- Adaptation sur différents types de mandrins
- Avec contrôle de course

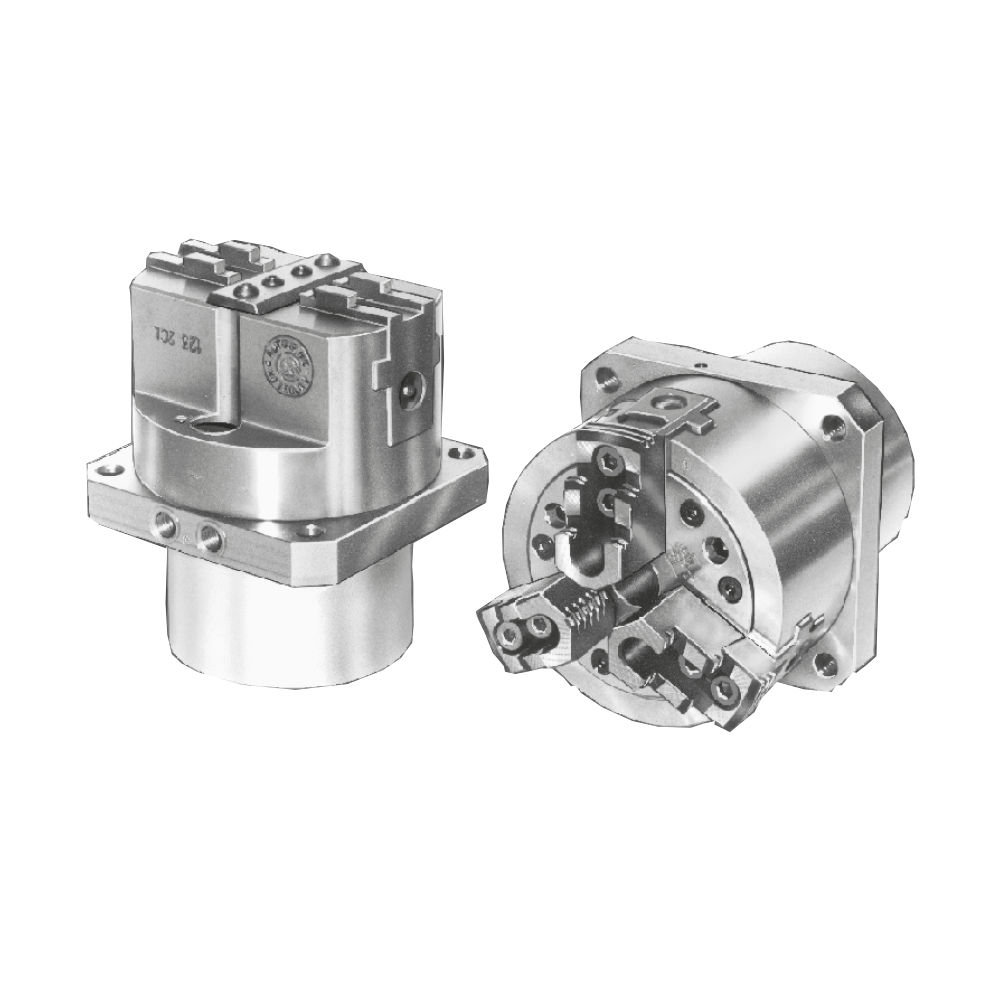

US-CL
Mandrin à 2 mors
Course normale et grande
US-A
unité avec cylindre statique et mandrin
mandrins sans passage type CL/AN/AL
Mandrin à 3 mors Course normale et grande Cylindres statiques hydraulique Ø 80 - 315 mm
- Unité avec cylindre statique et mandrin
US-BIG DIAMETERS
Cylindres statiques pneumatiques pour mandrins 2, 3 ou 4 mors
Unité avec cylindre statique et mandrin Ø 400 - 800 mm
- Fixation pour mors à denture ou tenon rainure
- Mandrin étanche ou standard
- 2, 3 ou 4 mors en fonction du mandrin et de sa taille
- Course des mors longue ou courte en fonction du mandrin

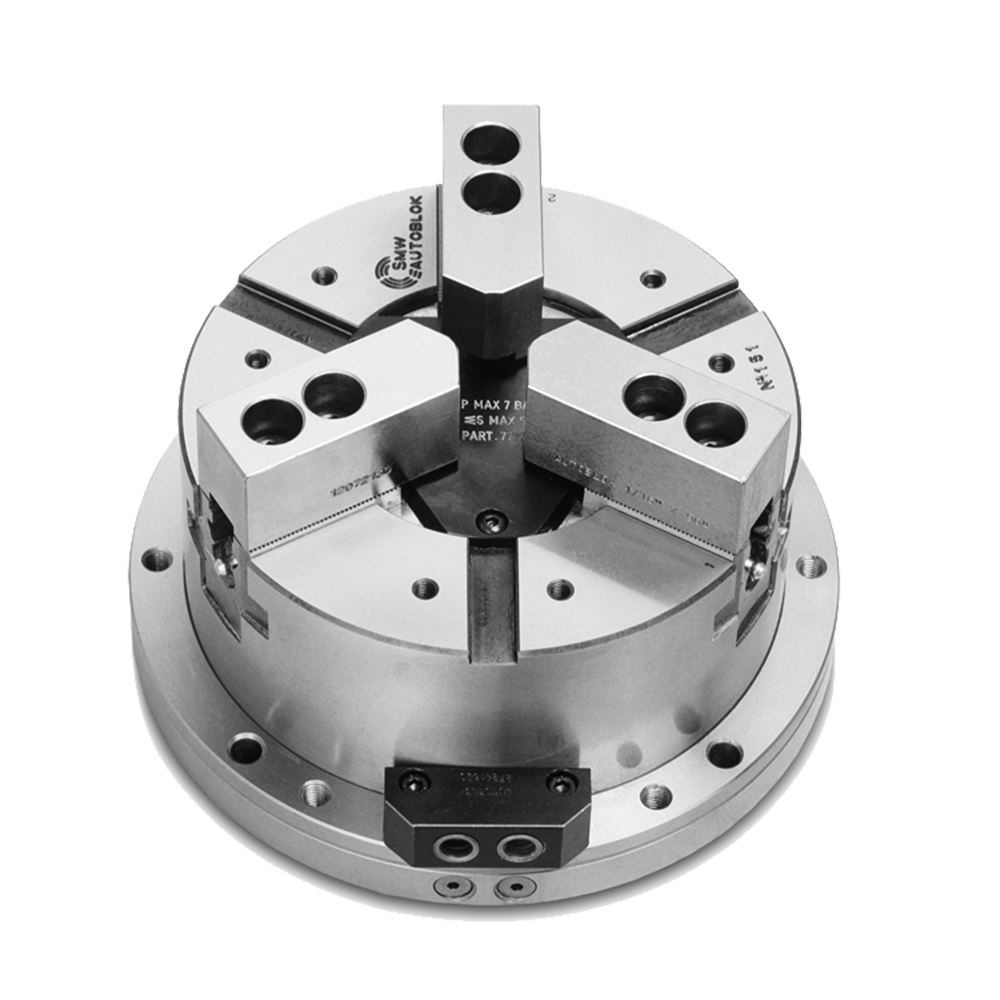

HB-D
Denture en POUCE
2 ou 3 mors
HB-C
Tenons croisés
3 mors
Mandrin hydraulique statique à cylindre incorporé Ø 130 - 315 mm
- à cylindre incorporé
- 2 ou 3 mors

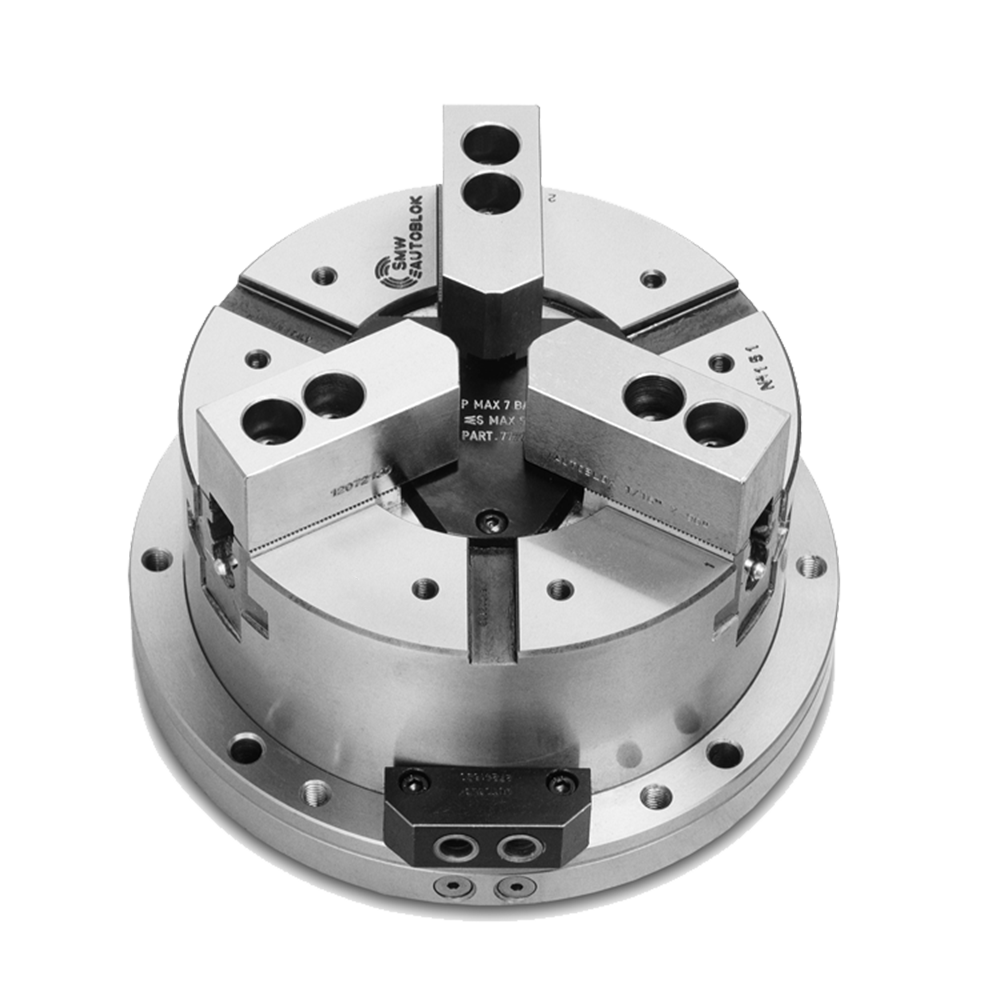

PB-D
Denture en POUCE
2 ou 3 mors
PB-C
Tenons croisés
3 mors
Mandrin pneumatique statique à cylindre incorporé Ø 130 - 315 mm
- à cylindre incorporé
- 2 ou 3 mors
STP
Denture en POUCE
3 mors
Mandrin pneumatique statique à cylindre incorporé Ø 125 - 280 mm
- à cylindre incorporé
- avec passage de barre
