Diaphragm chucks for Grinding

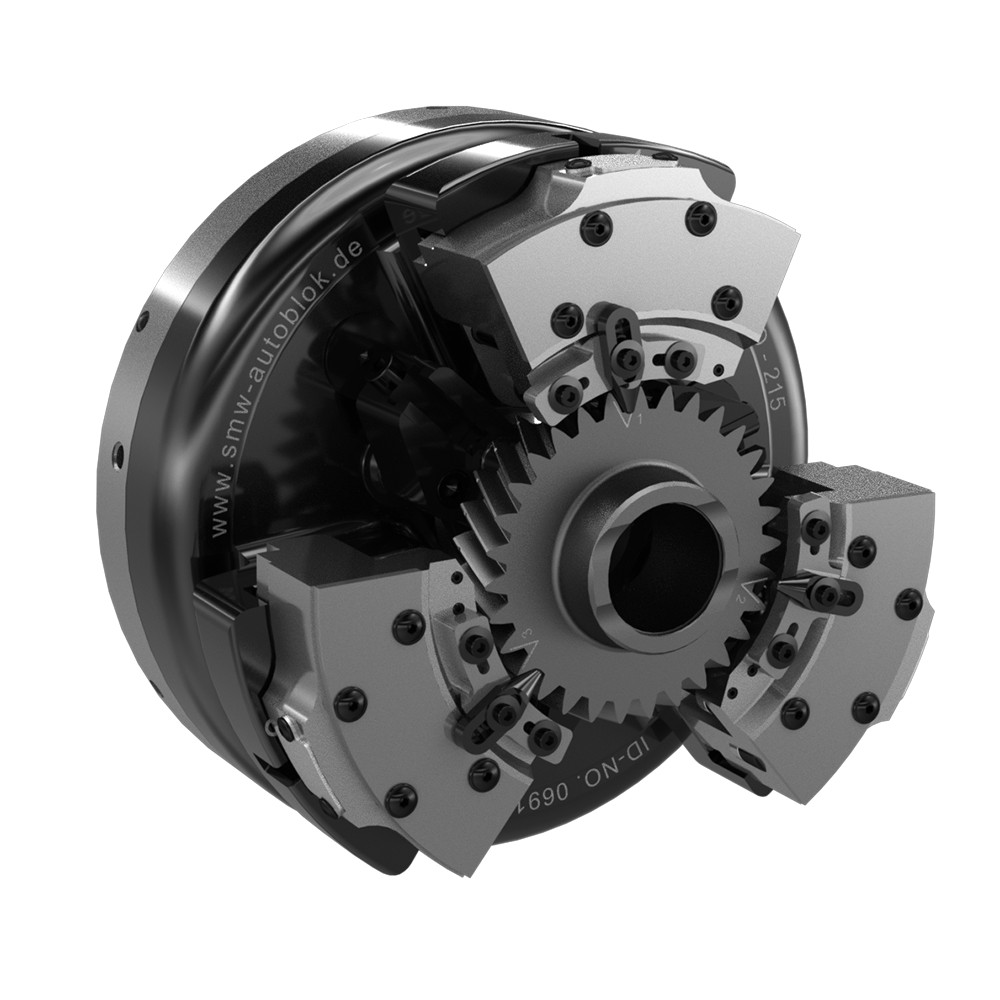

D-VARIO
Diaphragm chuck
Flexible modular system
Diaphragm chuck with radial fine adjustment of the center line
- Ø 215 mm
- Radial fine adjustment of the center line
- Key Lock System=Quick positioning of jaws for gears with different number of teeth
- Modular System with jaws for pitch line or outside clamping
- Proofline® chucks = fully sealed–low maintenance
D-KOMBI
Radial-axial clamping
Quick jaw change systems
Diaphragm clamping technology with pull-down fingers jaw/pull-down finger quick change
- Ø 210-400 mm
- Radial and axial clamping
- Flat gripping force curve
- Proofline® chucks = fully sealed–low maintenance
D-PLUS
Diaphragm chuck - open center
Quick jaw change systems
Open center diaphragm chuck with quick jaw change systems
- Ø 260-315 mm
- Radial O.D. or pitch line clamping
- With central bore
- Centrifugal force compensation
- Proofline® chucks = fully sealed–low maintenance
D
Diaphragm chuck
Quick jaw change systems
Diaphragm clamping technology with quick jaw change at its best for hard turning, grinding and high precision turning
- Ø 210-315 mm
- O.D. or pitch line clamping
- Centrifugal force compensation
- Proofline® chucks = fully sealed–low maintenance
Download Full Catalog: Grinding
