Soft top jaws Inch serration

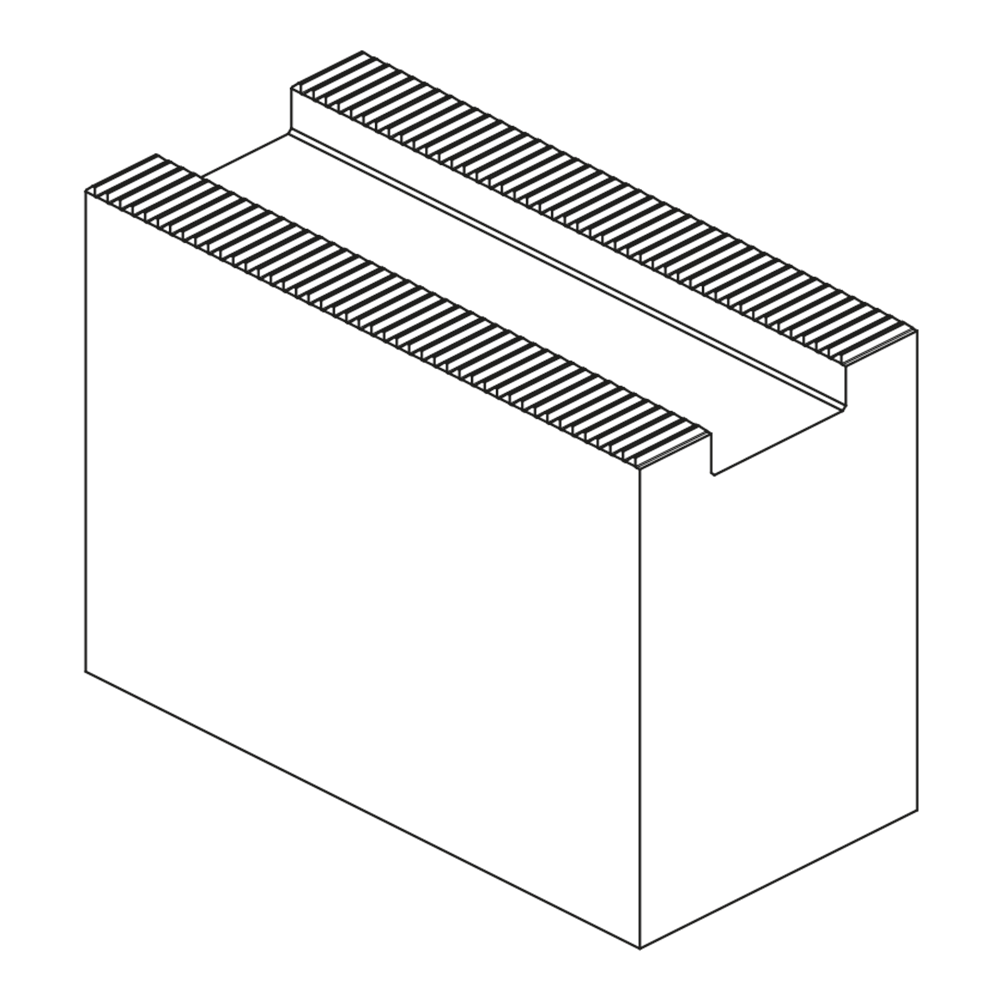

MAB-D
Without holes 16MnCr5
MAB-DL
Without holes 16MnCr5 Long version
Soft top jaws
- Inch serration 1/16" x 90° or 3/32" x 90°
- Material: 16MnCr5 , Serration ground

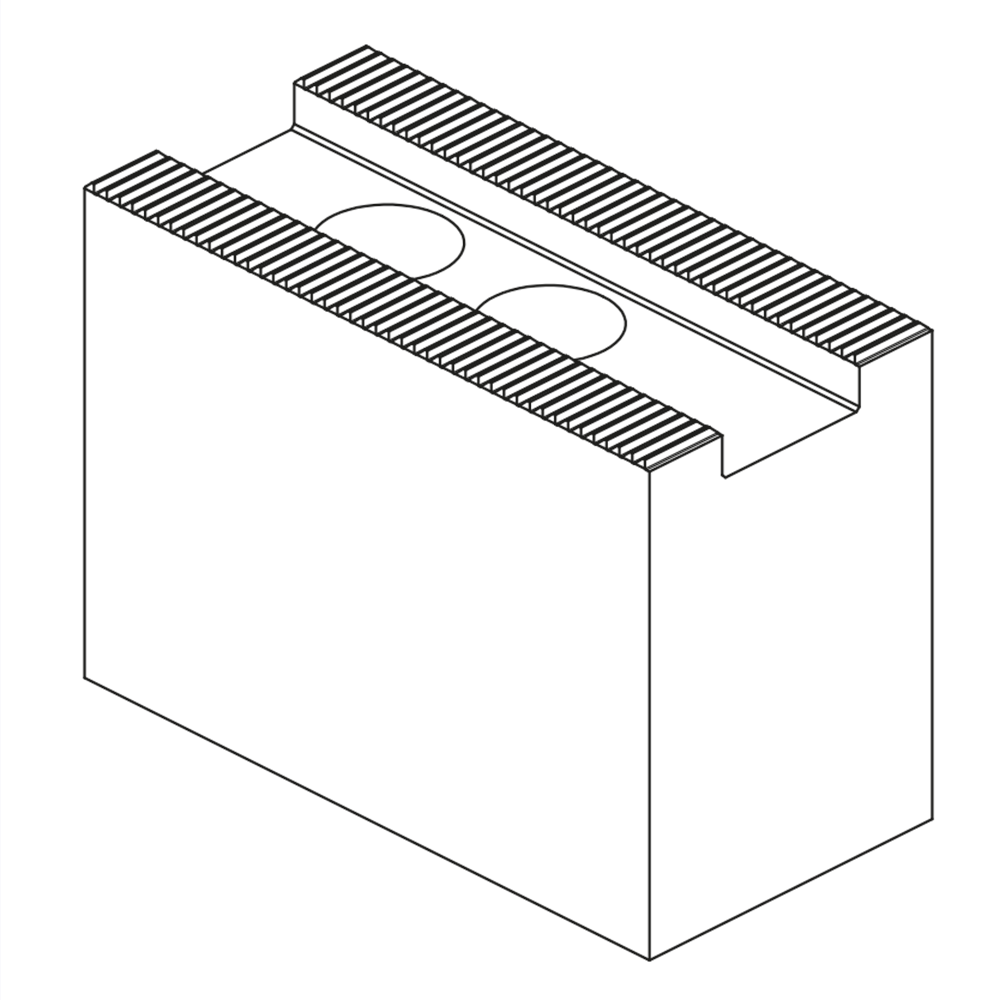

MAB-D
With holes 16MnCr5
Soft top jaws
- Inch serration 1/16" x 90° or 3/32" x 90°
- Bolt pattern to customer request

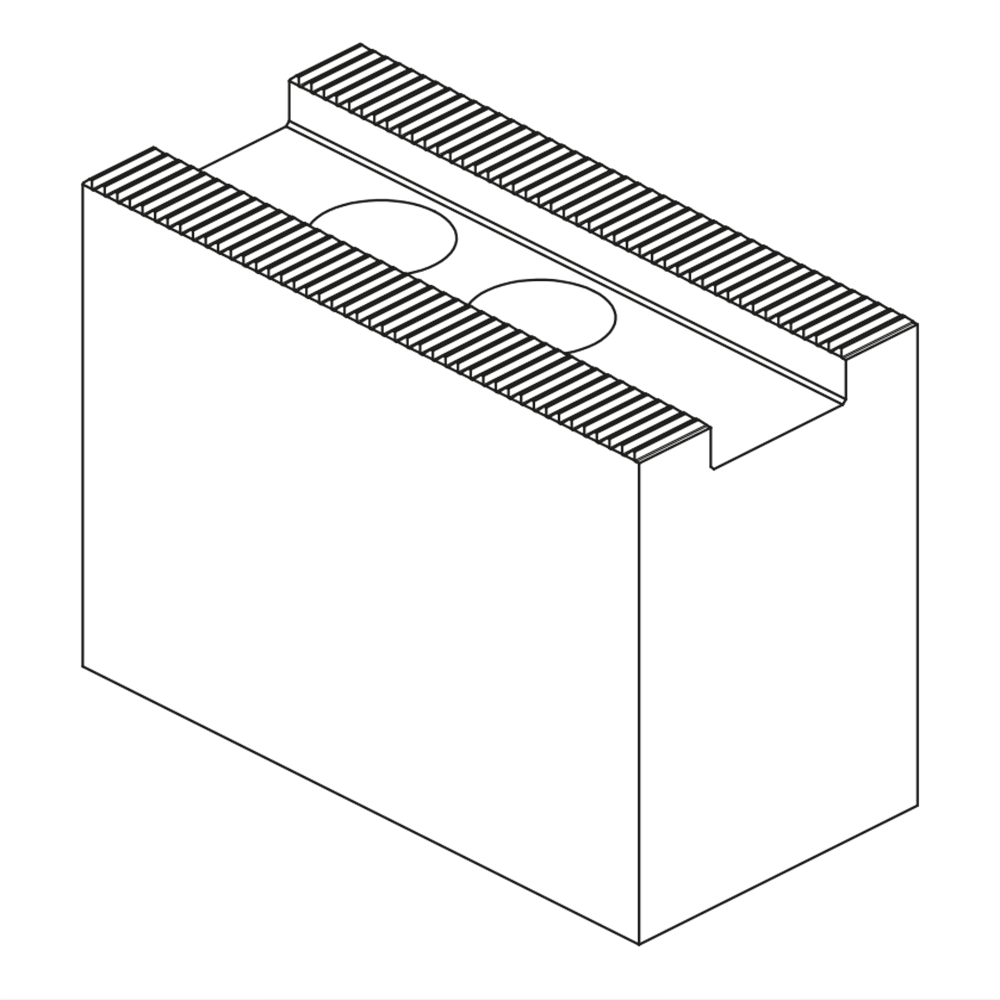

MWB-D
Tall version 16MnCr5
Soft top jaws
- Inch serration 1/16" x 90° or 3/32" x 90°
- Material: 16MnCr5, Serration ground

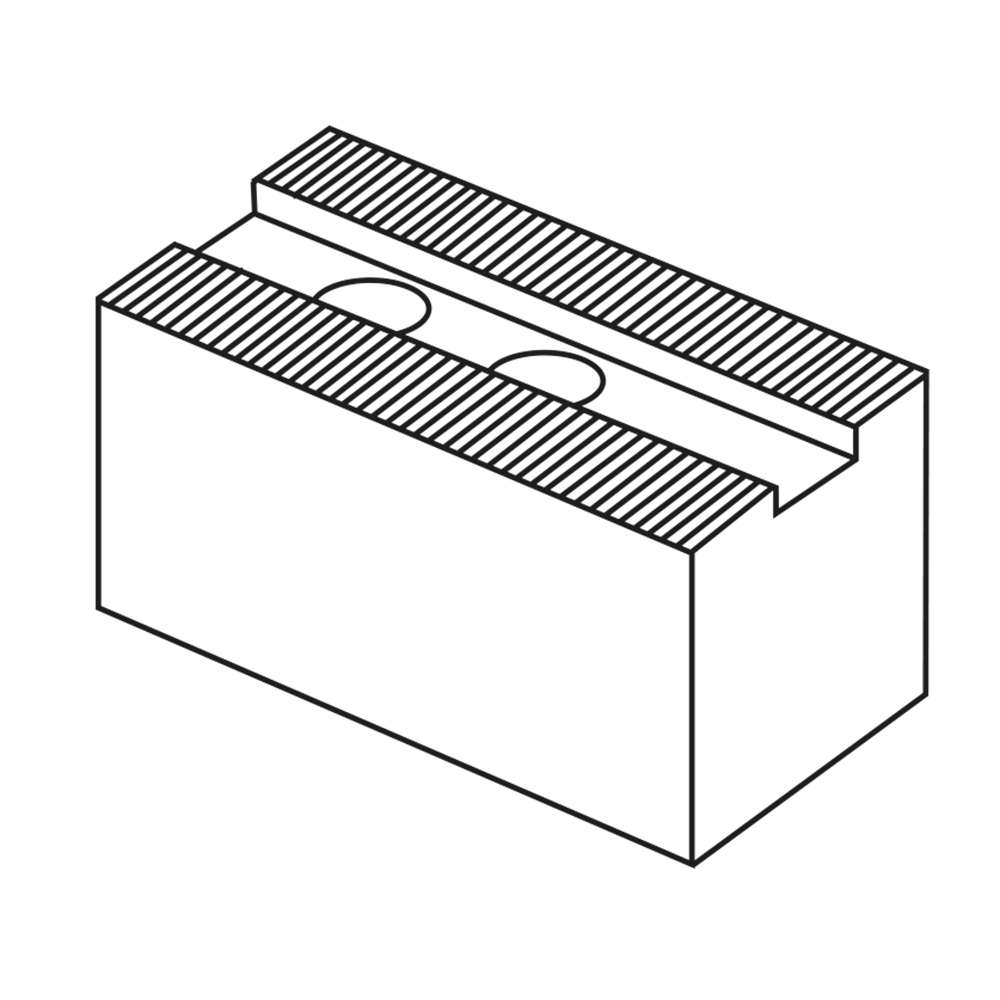

MWB-DA
Light version Aluminium F50
Soft top jaws aluminium
- Inch serration 1/16" x 90° or 3/32" x 90°
- Less jaw mass (3 x lighter than steel jaws)
- Higher chip removal at higher speeds
- Material: aluminium (tensile strength = 500 N/mm2)
LWB-D
Low version 16MnCr5
Soft top jaws
- Inch serration 1/16" x 90° or 3/32" x 90°
- Material: 16MnCr5, Serration ground

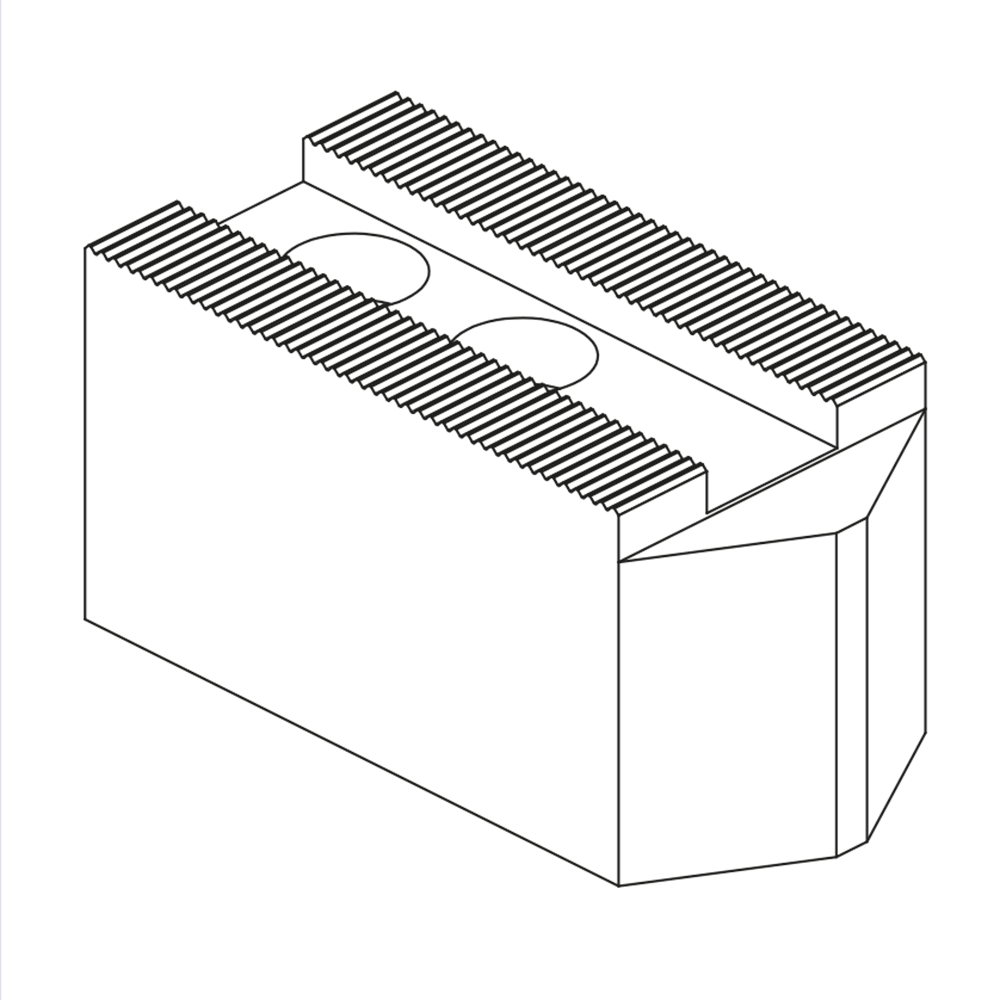

AWB-D
Low / pointed version 16MnCr5
Soft top jaws
- Inch serration 1/16" x 90°
- Material: 16MnCr5, Serration ground
SBS-D
16MnCr5
Soft pie jaws
- Inch serration 1/16" x 90° or 3/32" x 90°
- Material: 16MnCr5, Serration ground
- Less deformation of easy deformed parts with wrap around jaws

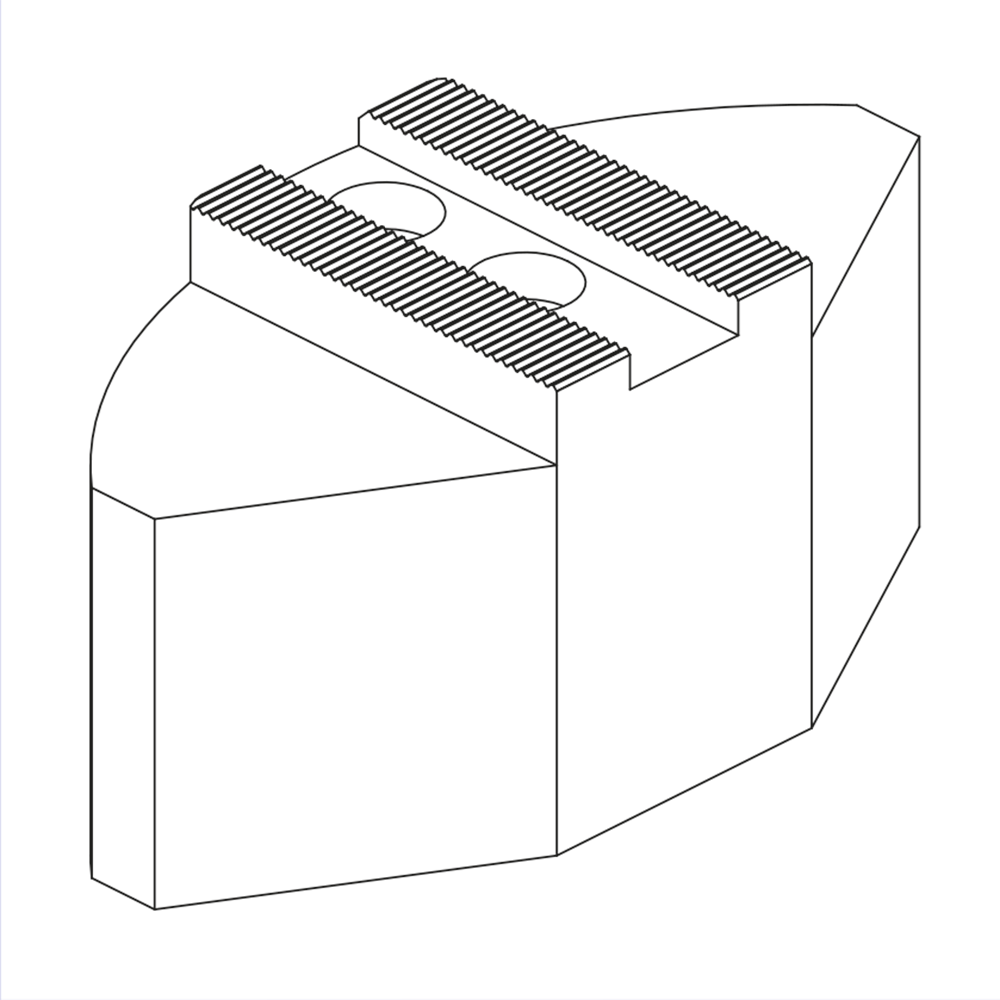

SBA-D
Aluminium F50
Soft pie jaws alluminium
- Inch serration 1/16" x 90° or 3/32" x 90°
- Less deformation of easy deformed parts with wrap around jaws
- Less jaw mass (3 x lighter than steel jaws)
- Higher chip removal at higher speeds
- Material: aluminium (tensile strength = 500 N/mm2)
MAB-D
With holes for 2-jaw chucks 16MnCr5 / C45
Soft top jaws for 2-jaw chucks
- Inch serration 1/16" x 90°
- Material: 16MnCr5/ C45

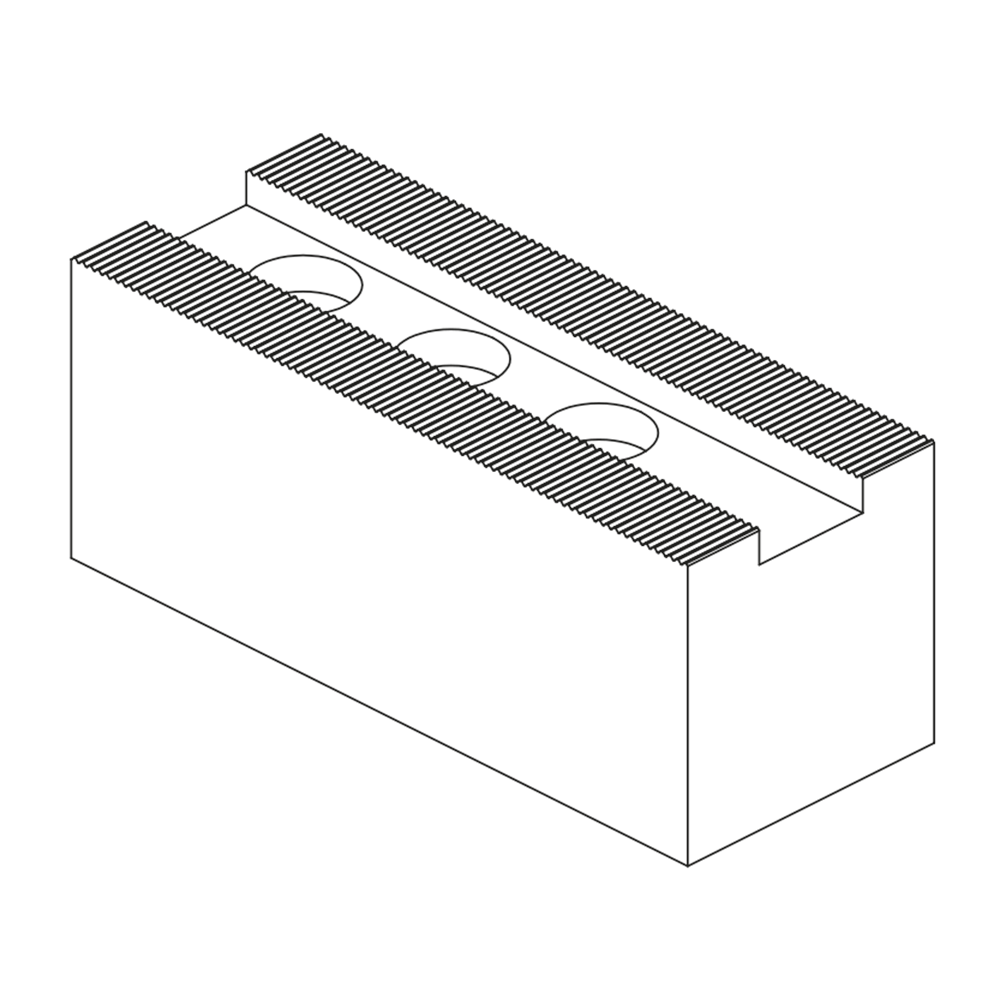

WBSA-D
for SMW-AUTOBLOK power chucks C45 (flame hardenable)
Soft top jaws
- Inch serration 1/16" x 90° or 3/32" x 90°
- Material: C45

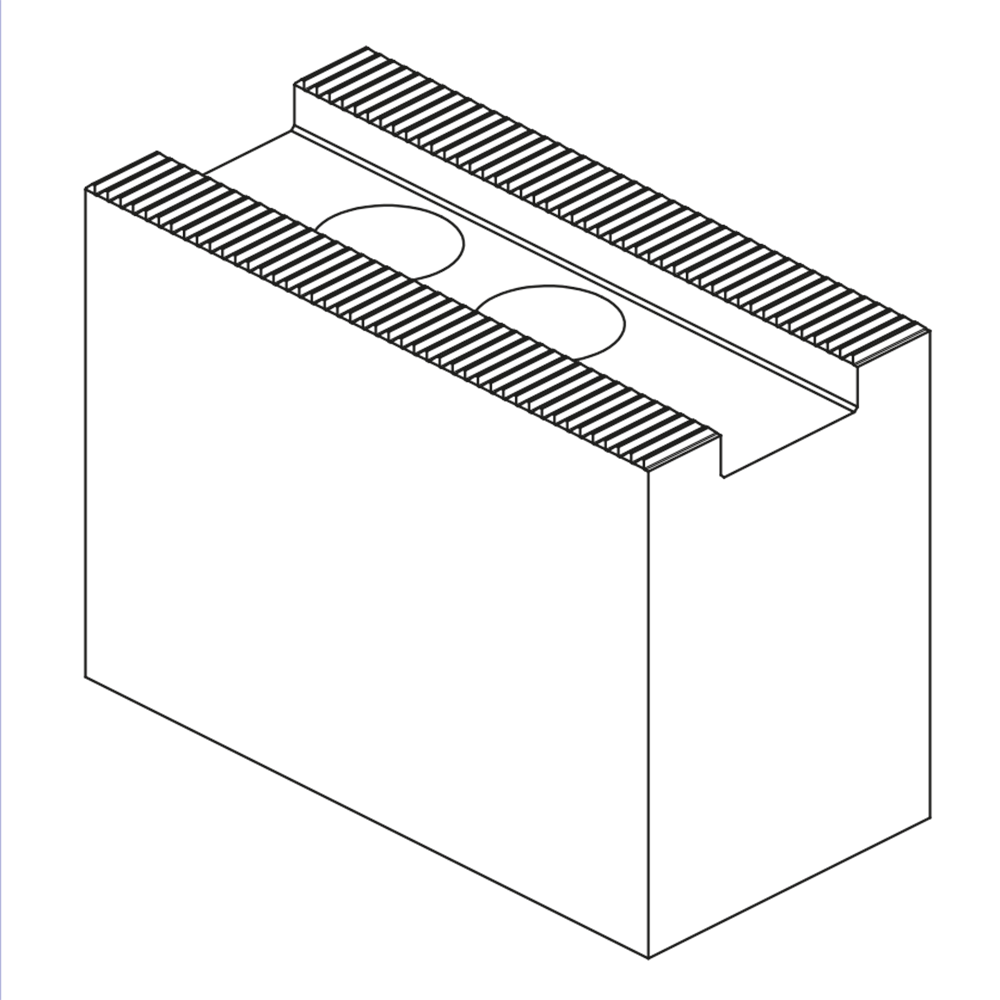

WBB-D
for Berg power chucks type KH 16MnCr5
Soft top jaws
- Inch serration 1/16" x 90° serration ground
- Material: 16MnCr5 , Serration ground
WBR-D
for Röhm power chucks type KFD-HS for Schunk power chucks type HSG 16MnCr5
Soft top jaws
- Inch serration 1/16" x 90° serration ground
- Material: 16MnCr5 , Serration ground

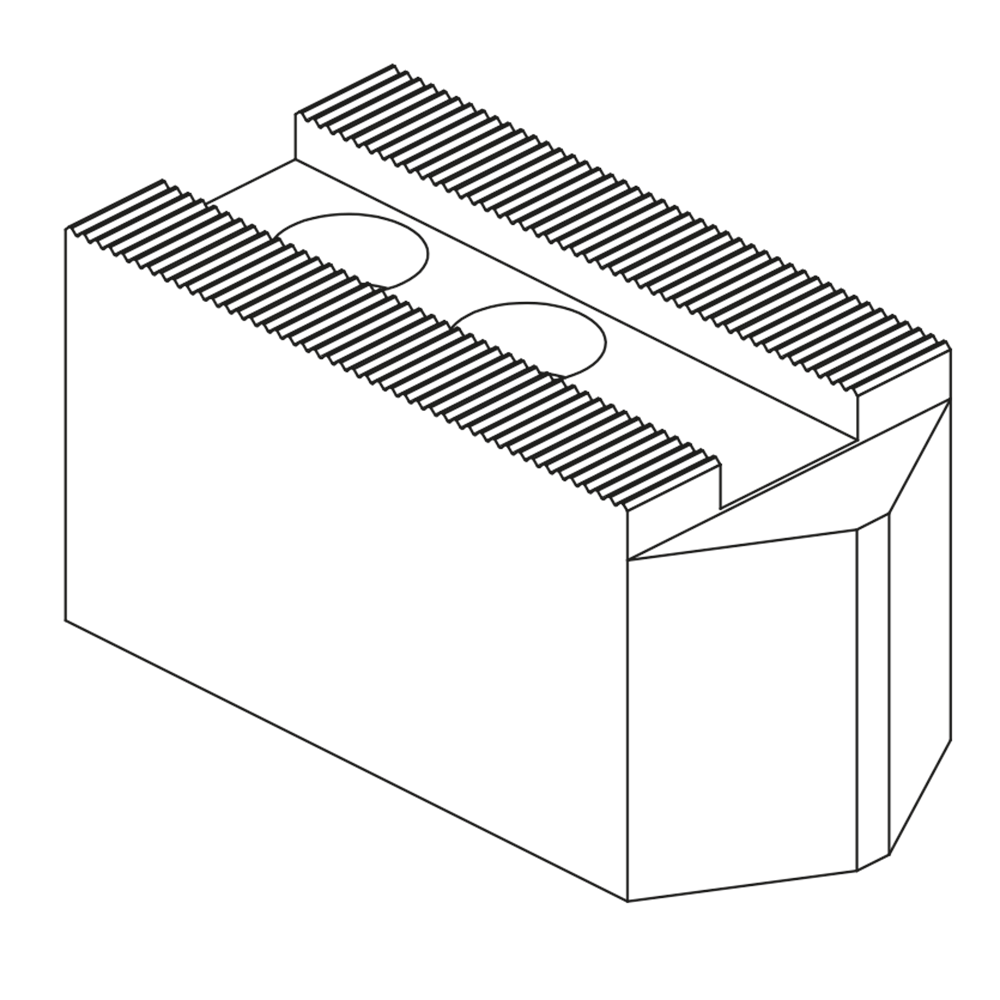

SOFT TOP JAW
for front end power chucks 16MnCr5 / C45 (flame / induction hardening)
Soft top jaws
- Inch serration 1/16" x 90° or 3/32" x 90°
