Diaphragm chucks

D

D

Diaphragm chuck

Quick jaw change systems

Diaphragm clamping technology with quick jaw change at its best for hard turning, grinding and high precision turning

  • ├ś 160-400 mm
  • O.D. or pitch line clamping
  • Centrifugal force compensation
  • Proofline┬« chucks = fully sealedÔÇôlow maintenance

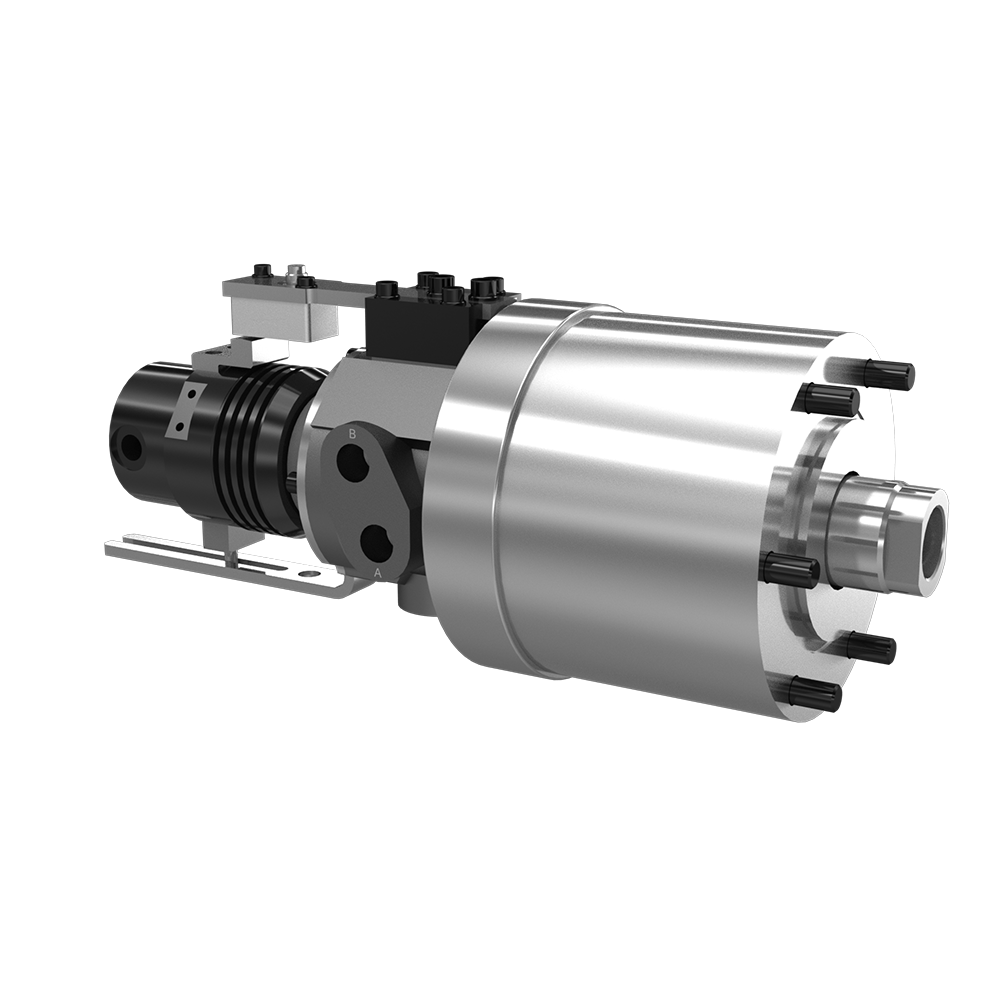

SIN-DFR

SIN-DFR

Cylinder for Diaphragm chuck type D D-PLUS D-VARIO

Closed center rotating hydraulic cylinder

  • Special cylinder to actuate diaphragm chuck
  • Up to 70 bar
  • Large piston area for opening small piston area for clamping
  • Central bore for air/coolant, 1 or 2 media
  • Stroke control via LPS
D-KOMBI

D-KOMBI

Radial-axial clamping

Quick jaw change systems

Diaphragm clamping technology with pull-down fingers jaw/pull-down finger quick change

  • ├ś 210-400 mm
  • Radial and axial clamping
  • Flat gripping force curve
  • Proofline┬« chucks = fully sealedÔÇôlow maintenance

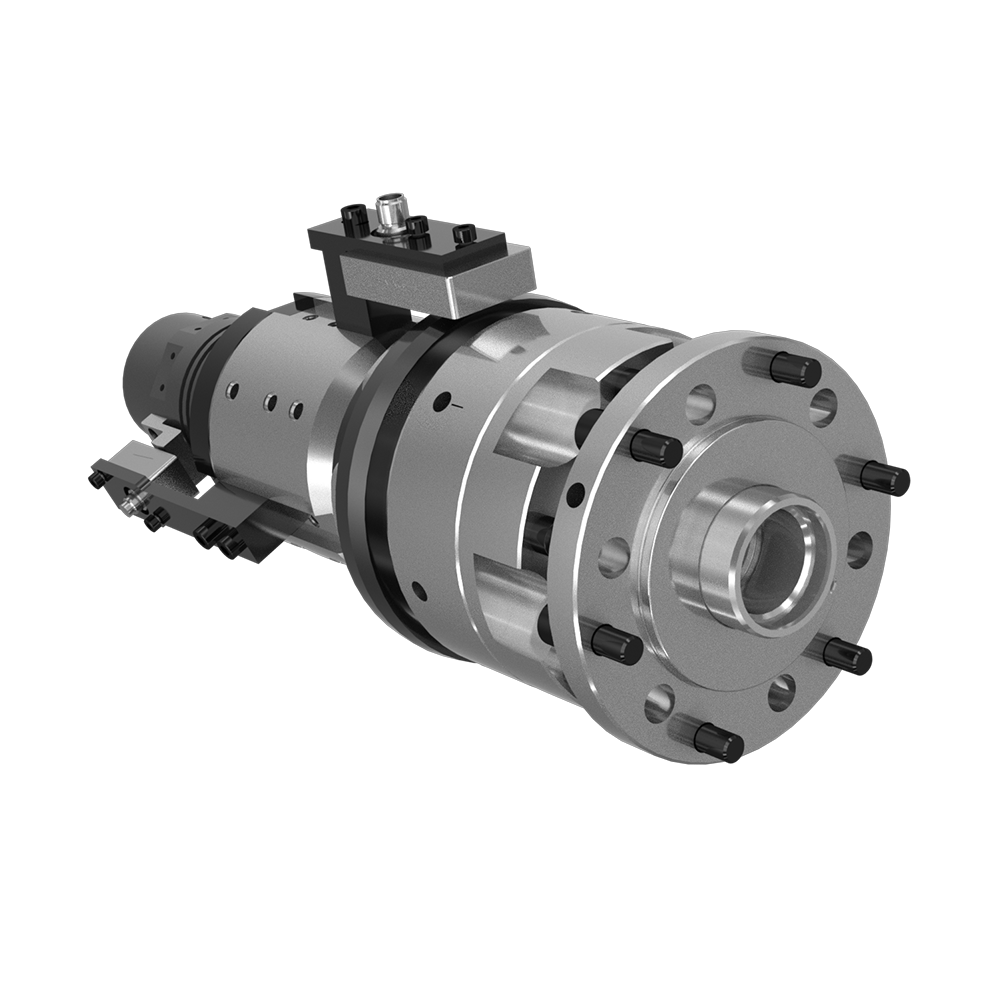

ZHVD-DFR

ZHVD-DFR

Cylinder for Diaphragm chuck type D-KOMBI

Double piston rotating hydraulic cylinder

  • Special cylinder to actuate diaphragm chuck D-KOMBI
  • Up to 60 bar
  • 1 piston for actuating diaphragm
  • 1 piston for actuating axial clamping
  • Central bore for air/coolant, 1 or 2 media
  • Stroke control via 2 per LPS
D-PLUS

D-PLUS

Diaphragm chuck - open center

Quick jaw change systems

Open center diaphragm chuck with quick jaw change systems

  • ├ś 260-315 mm
  • Radial O.D. or pitch line clamping
  • With central bore
  • Centrifugal force compensation
  • Proofline┬« chucks = fully sealedÔÇôlow maintenance
D-VARIO

D-VARIO

Diaphragm chuck

Flexible modular system

Diaphragm chuck with radial fine adjustment of the center line

  • ├ś 215 mm
  • Radial fine adjustment of the center line
  • Key Lock System=Quick positioning of jaws for gears with different number of teeth
  • Modular System with jaws for pitch line or outside clamping
  • Proofline┬« chucks = fully sealedÔÇôlow maintenance

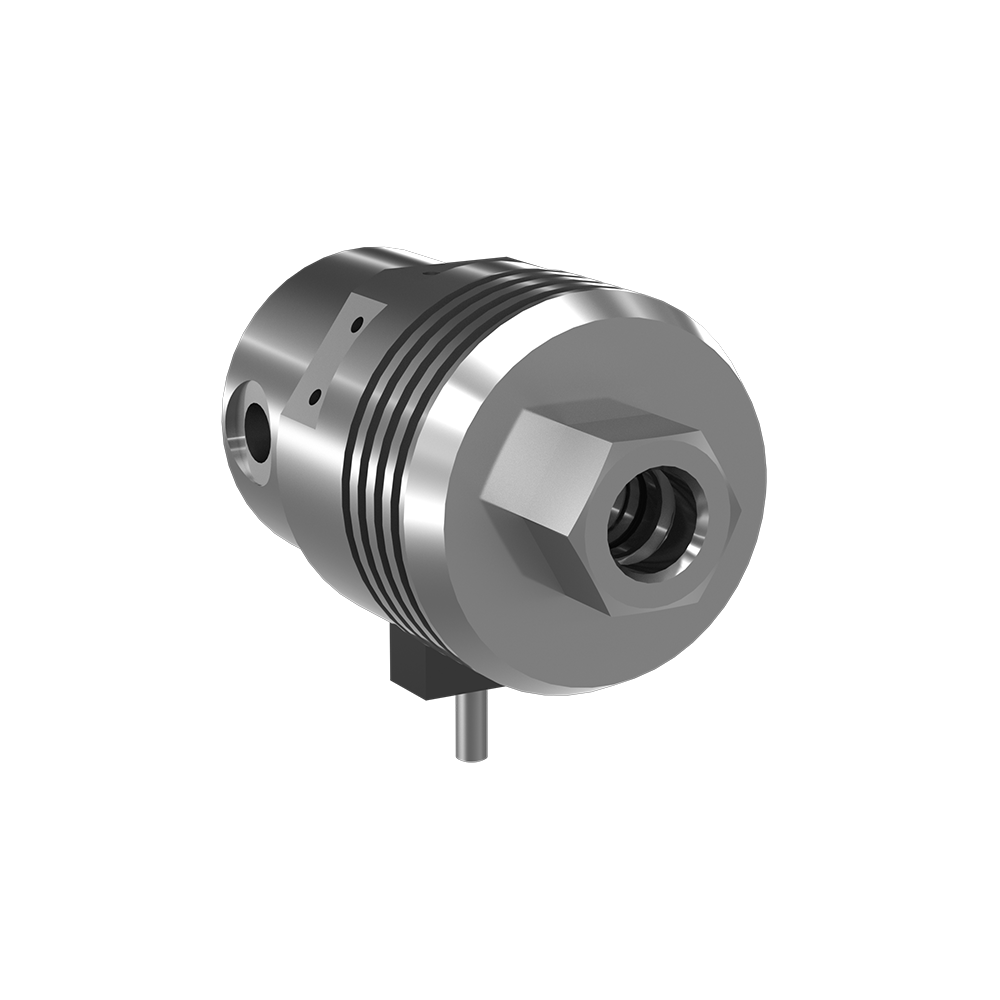

RU-2-20

RU-2-20

Rotary union

Rotary union for 2 media

  • For double piston cylinder ZHVD-DFR for D-chucks

Download Full Catalog: Turning
