Manual or power operated expanding mandrels / Adapter flanges

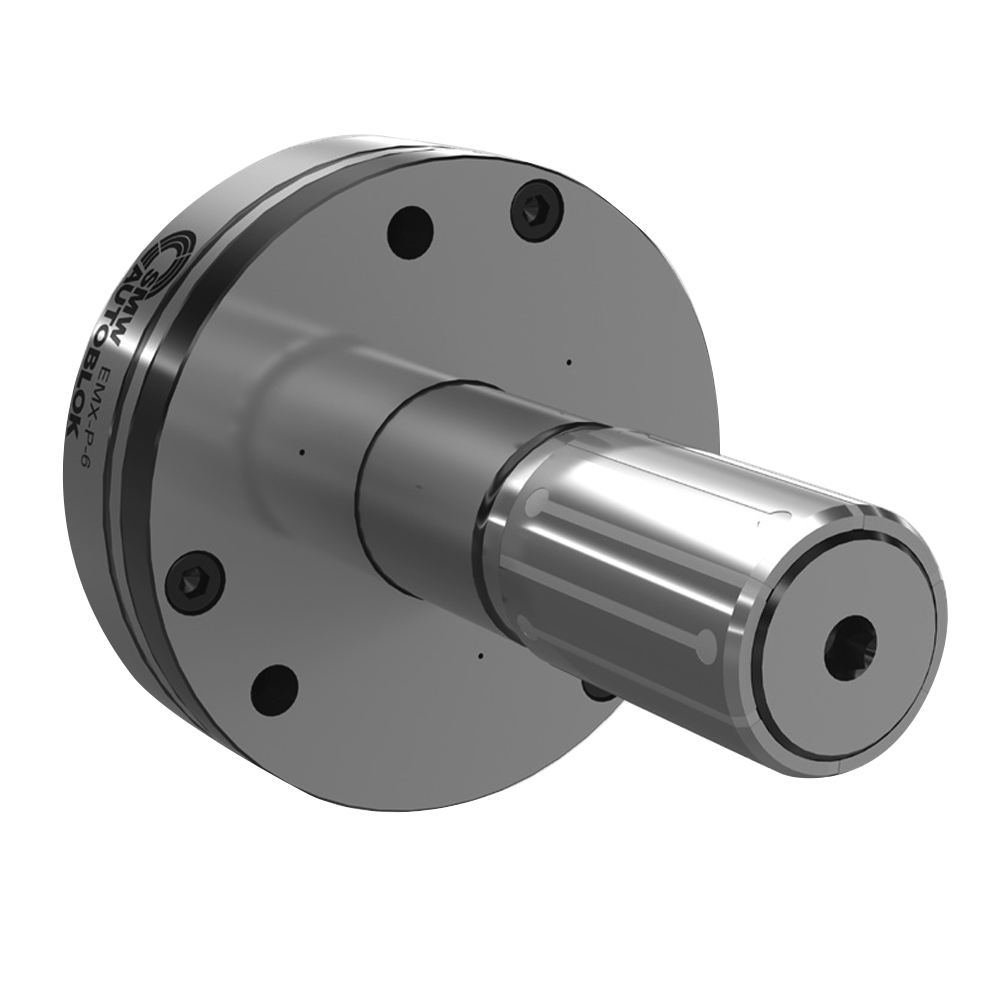

EMX-P
Expanding mandrel
Power operated
Power operated sleeve expanding mandrels Ø 14.7 - 131.7 mm
- Highest repeatability
- Size 1 - 11
- Large expansibility
- Preparation for air sensing
- Segment sleeves vulcanized (option)

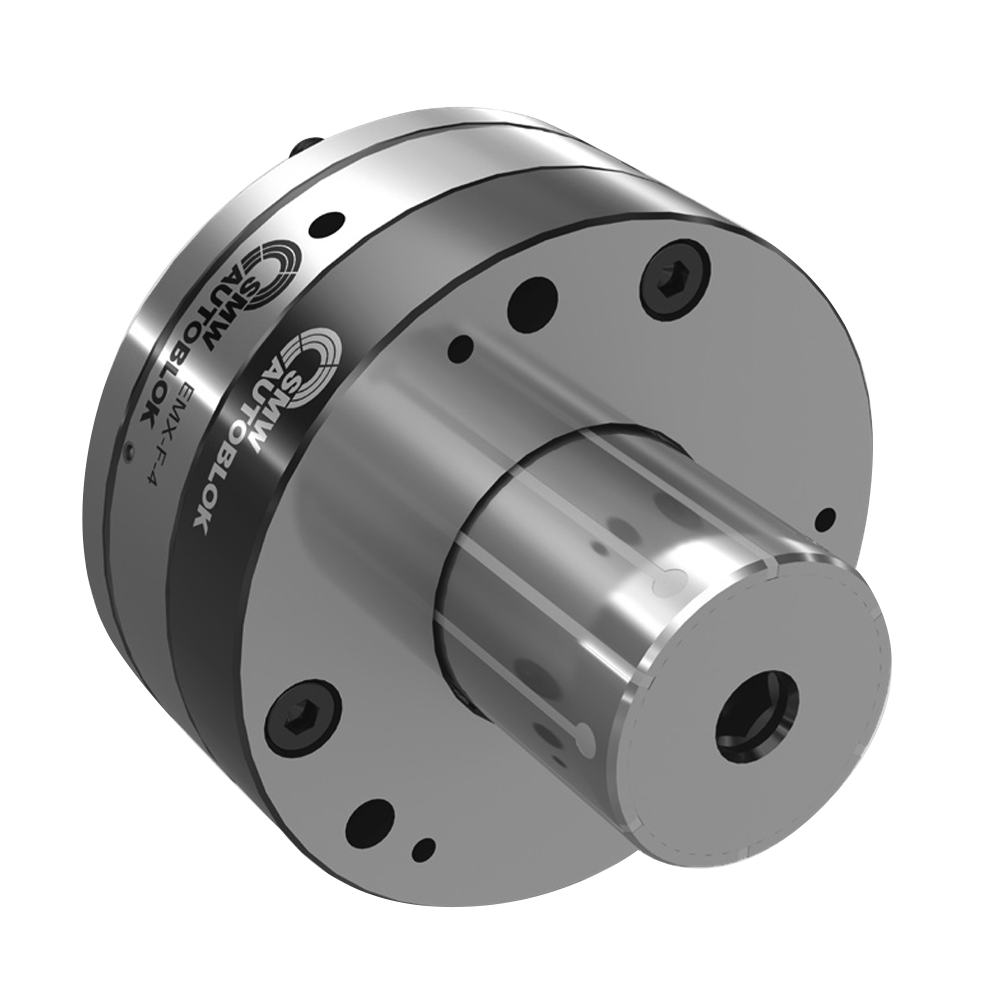

EMX-F/FP
Expanding mandrel
Power operated
Power operated sleeve expanding mandrels Ø 19.7 - 132.9 mm
- Highest repeatability
- Size 1 - 6
- Large expansibility
- Preparation for air sensing
- FP: with pull-down
- Segment sleeves vulcanized (option)

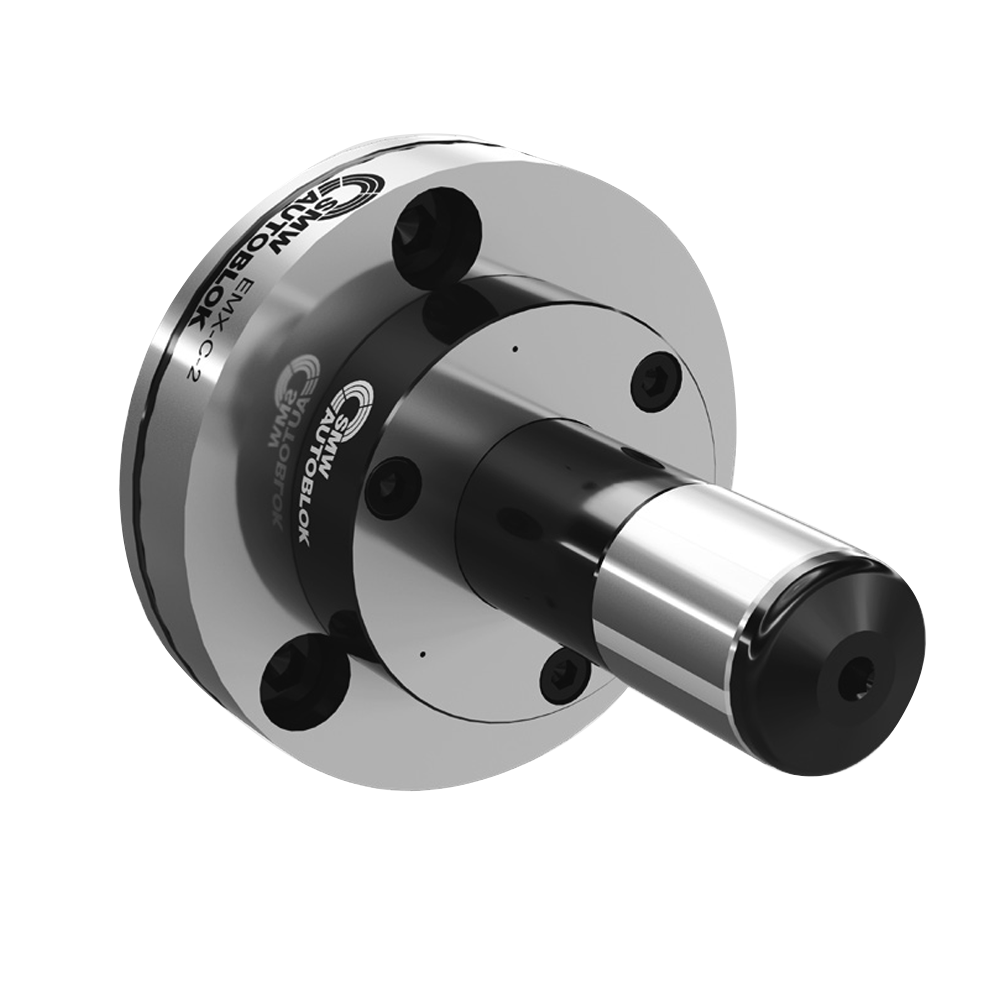

EMX-C
Segment sleeve mandrel
Power operated
Power operated segment expanding mandrels Ø 25 - 121 mm
- Highest repeatability
- Size 1 - 5
- Large expansibility
- Preparation for air sensing
- Case hardened / wear resistant segment sleeves

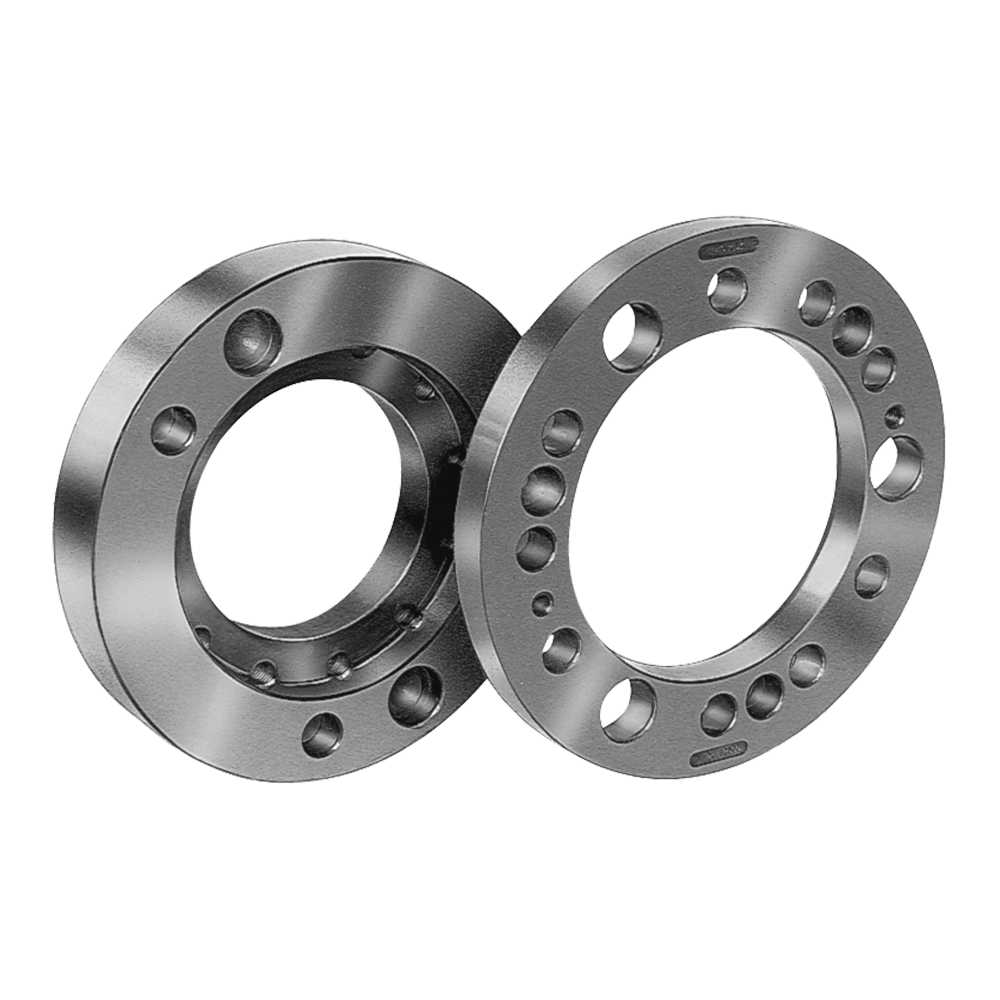

Adapter Flanges EMX
ISO-A for sleeve expanding mandrels
- The sleeve expanding mandrels have a cylindrical admission
- Flanges for machine spindle DIN 55026 / ISO-A 702/1
EMX-S
Power operated expanding mandrels Ø 18 - 105 mm
- For turning, grinding and milling
- Size 1 - 4
- Case hardened / wear resistant segment sleeves
- Large expansibility
- Very rigid design
Adapter Flanges EMX-S
ISO-A for sleeve expanding mandrels
- The expanding mandrels have a cylindrical mounting
- Flanges for machine spindle DIN 55026 / ISO-A 702/1

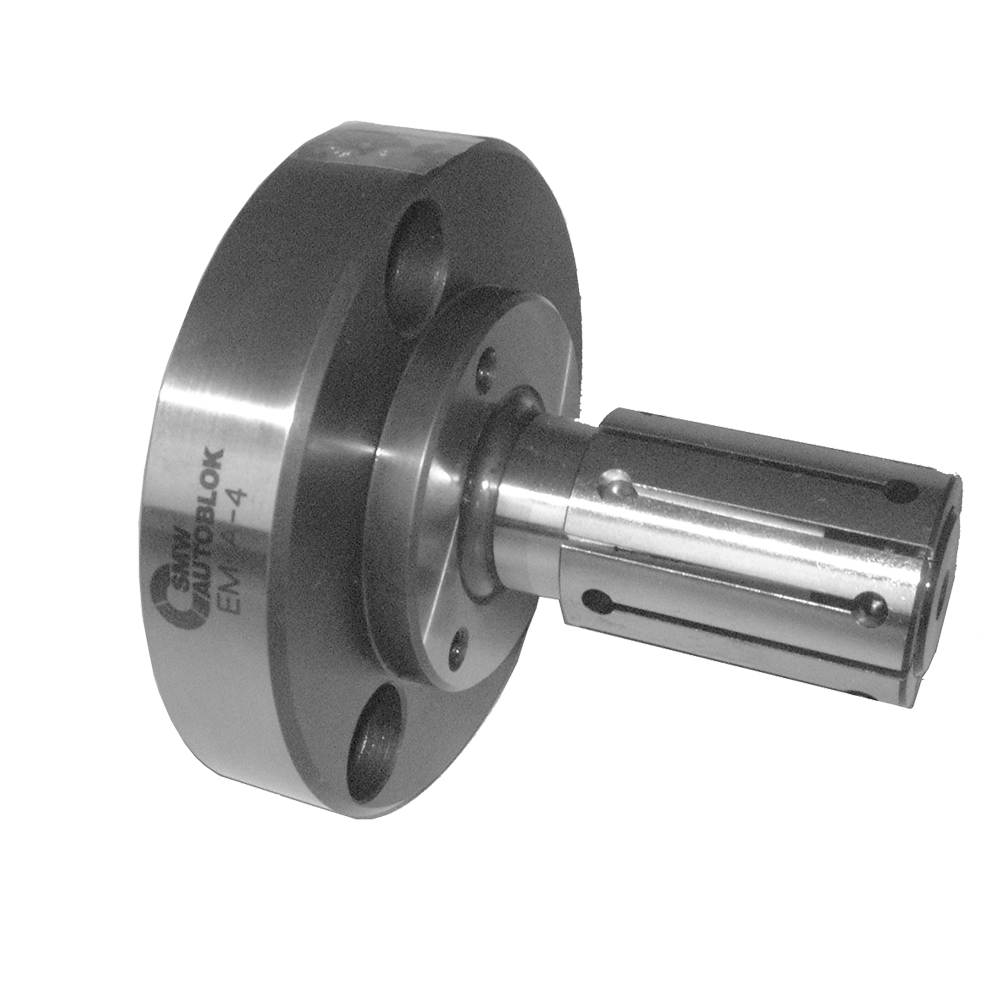

EM-A
Expanding mandrel
Manual or power operated
EM-AL
Expanding mandrels Ø 14.7 - 129.7 mm
- Size 1-11
- Large expansibility
- EM-AL: body lengthened

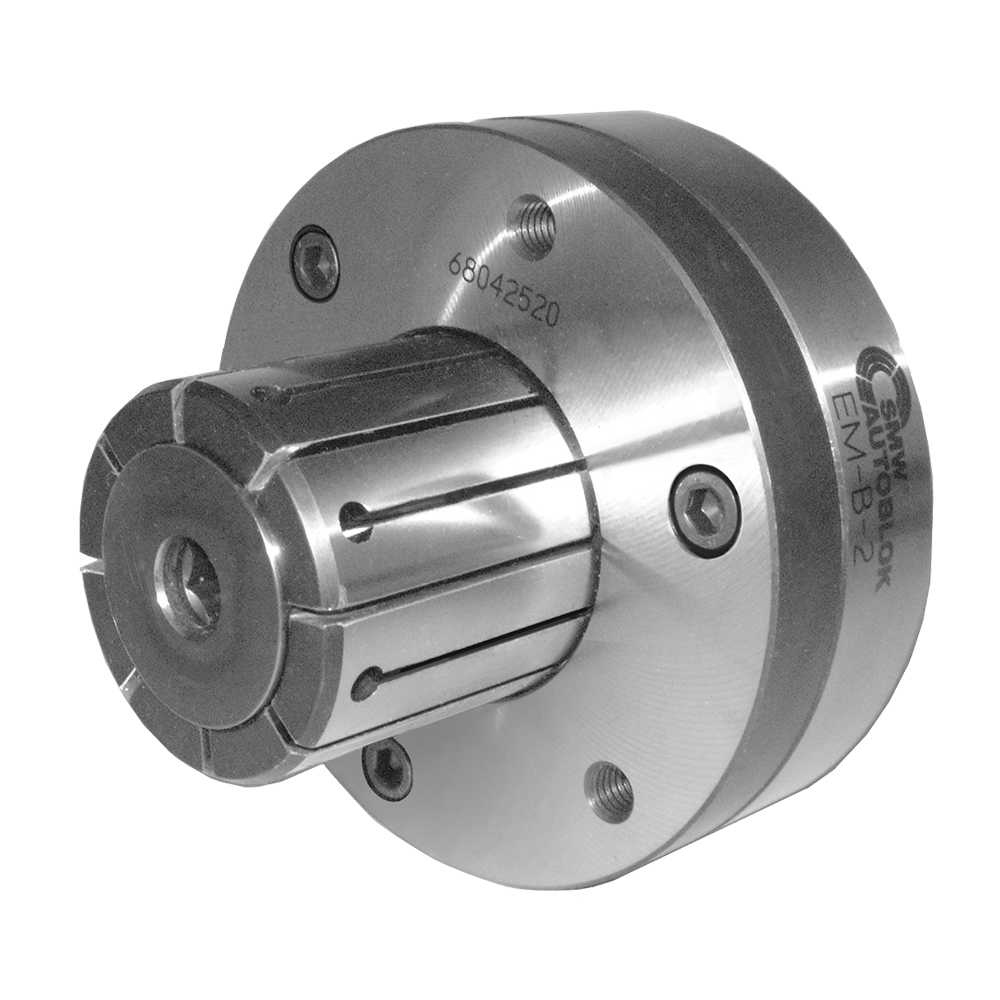

EM-B
Expanding mandrel
Manual or power operated
Expanding mandrel
- Size 0-4
- Large expansibility
Flange for EM-A EM-B
ISO-A for expanding mandrels
ISO-A Flange for Expanding mandrels
- Mandrels EM-A and EM-B have cylindrical mounting
- Adapters for DIN55026 / ISO-A702 / 1 spindlenoses

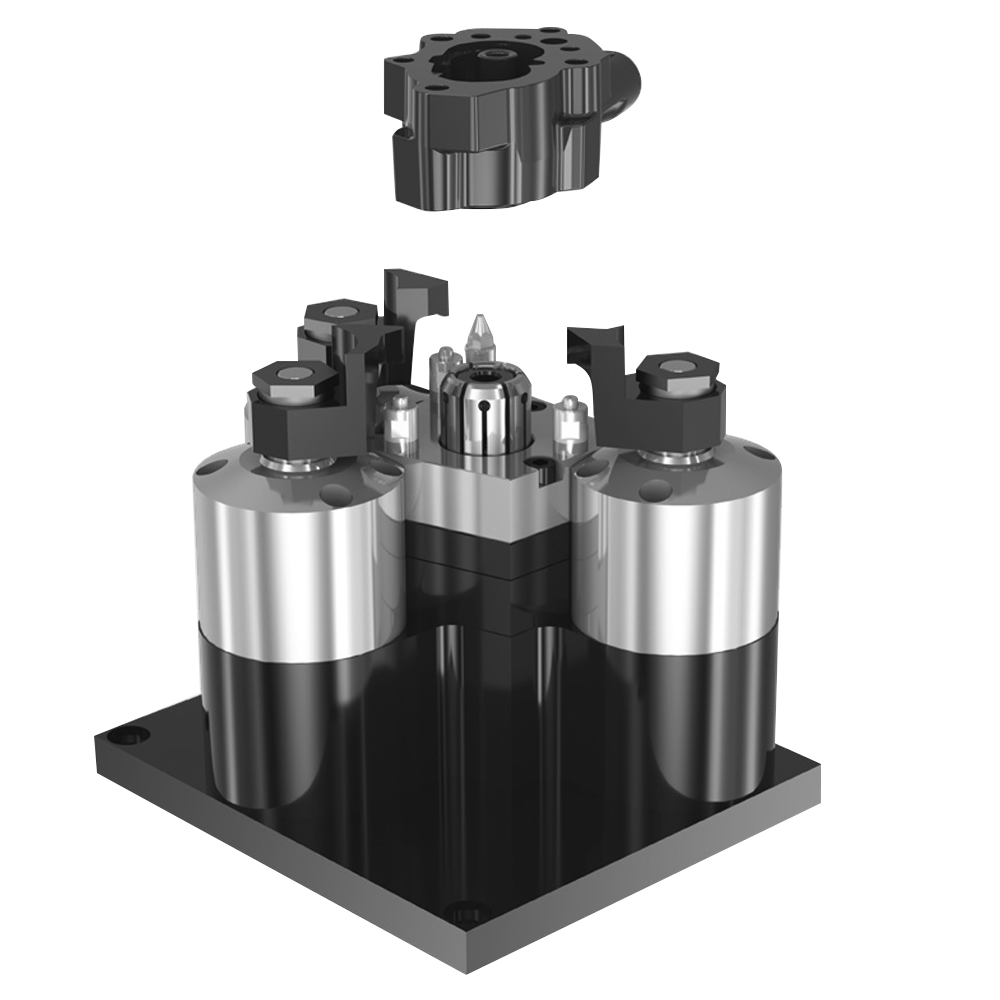

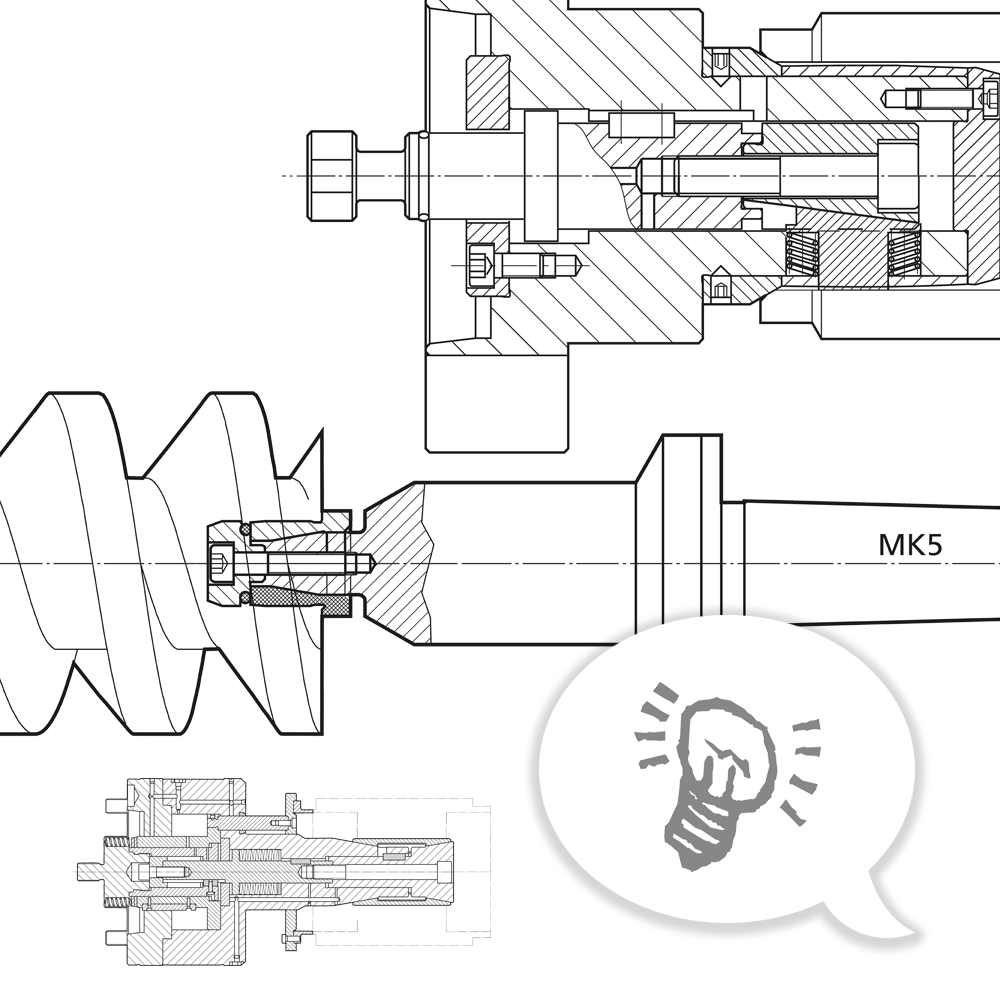

Special Clamping Solutions
Application examples
- Sliding jaw collet chuck
- Special sleeve mandrels
- Sliding jaw mandrels
- Combination chuck
