Hylschuckar / Axeldragande chuckar

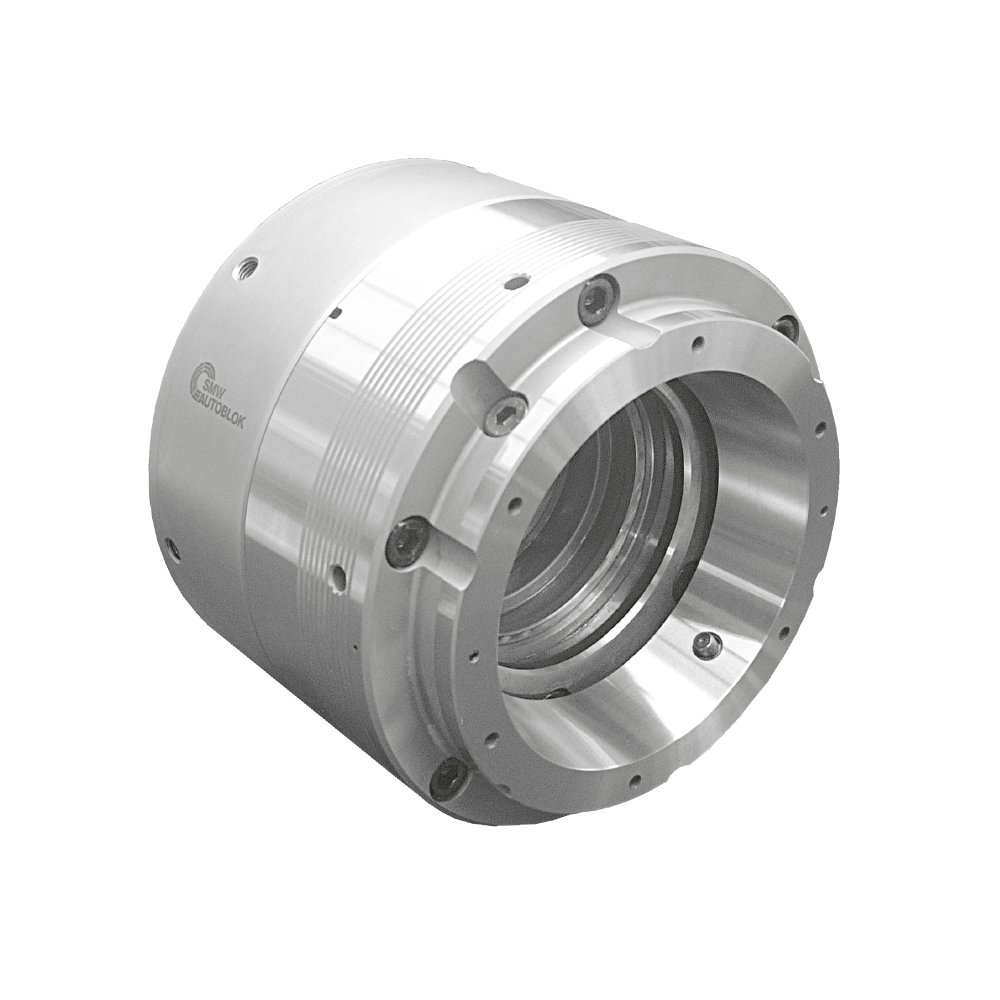

COMOT-AZ

Flexible collet chuck

Flexible collet chuck

• Use of vulcanized standard collet
• Optional premium adapter for the use of slotted high-precision collets
• Optional use of expanding mandrels of the "connect" series
• Preparation for air sensing
• Radial fine adjustment

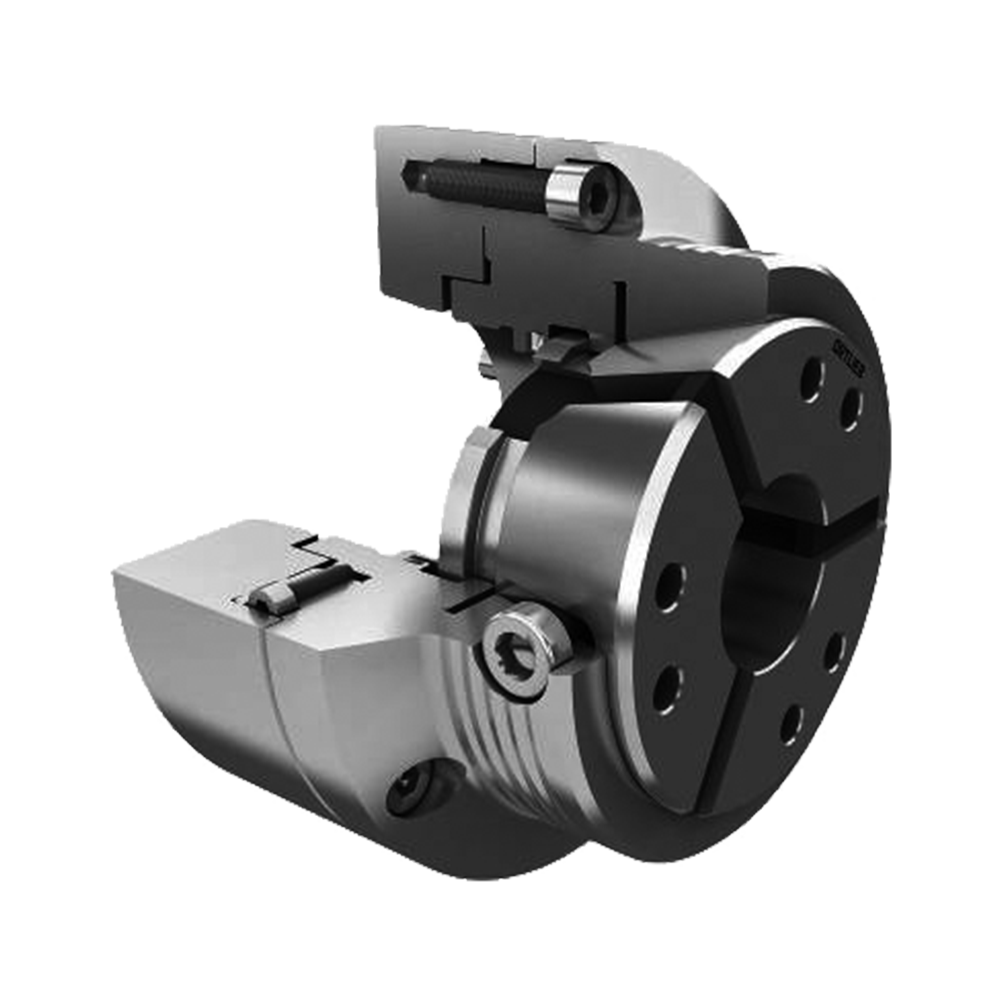

COMOT-DZ

Flexible collet chuck

Flexible collet chuck

• Use of vulcanized standard collet
• Clamping of thin walled work pieces
• Long service life due to case hardened componenets and lubrication
• Ideal for bar loader machines and Best tool accessability
• Seal against contamination of the collet
• Low weight = low inertia

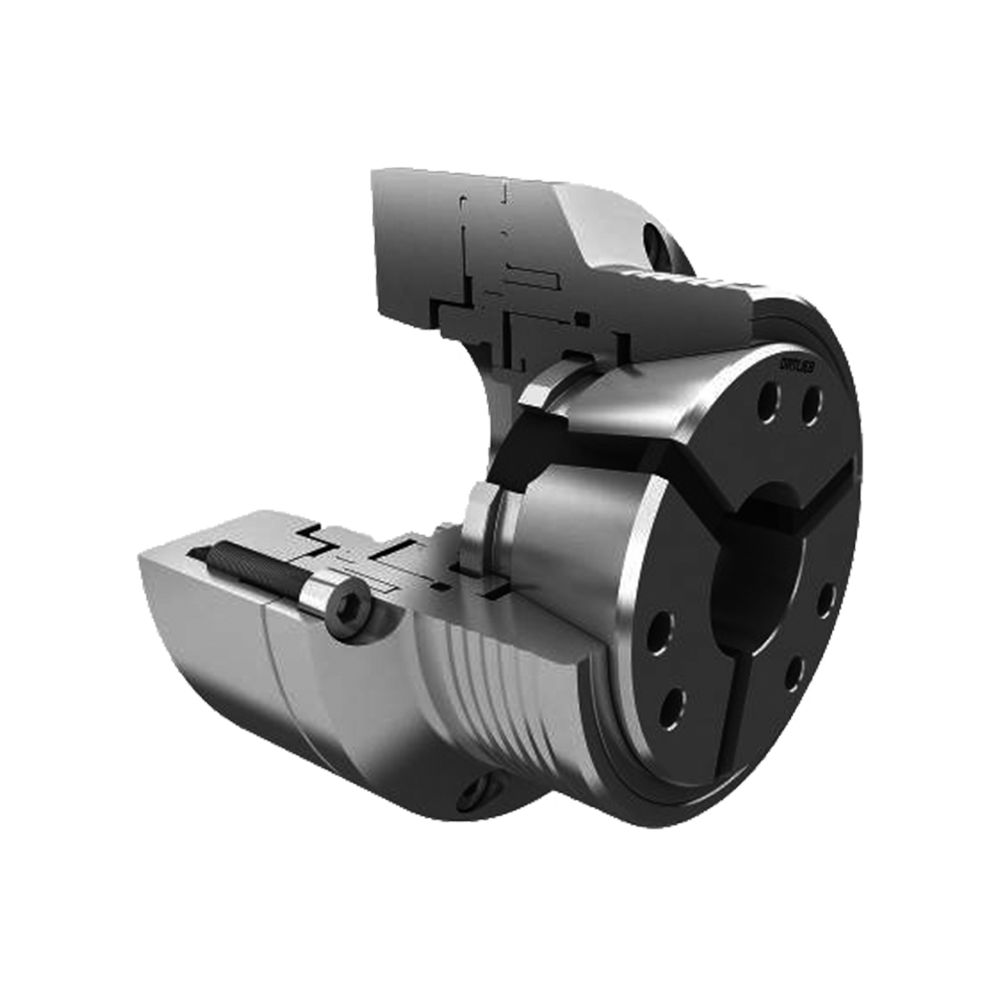

COMOT-NZ

Flexible collet chuck

Flexible collet chuck

• Use of vulcanized standard collet
• Optional use of expanding mandrels of the connect series EMX-F-CO-NZ
• Optional use of expanding mandrels of the "connect" series
• Preparation for air sensing
• Radial fine adjustment

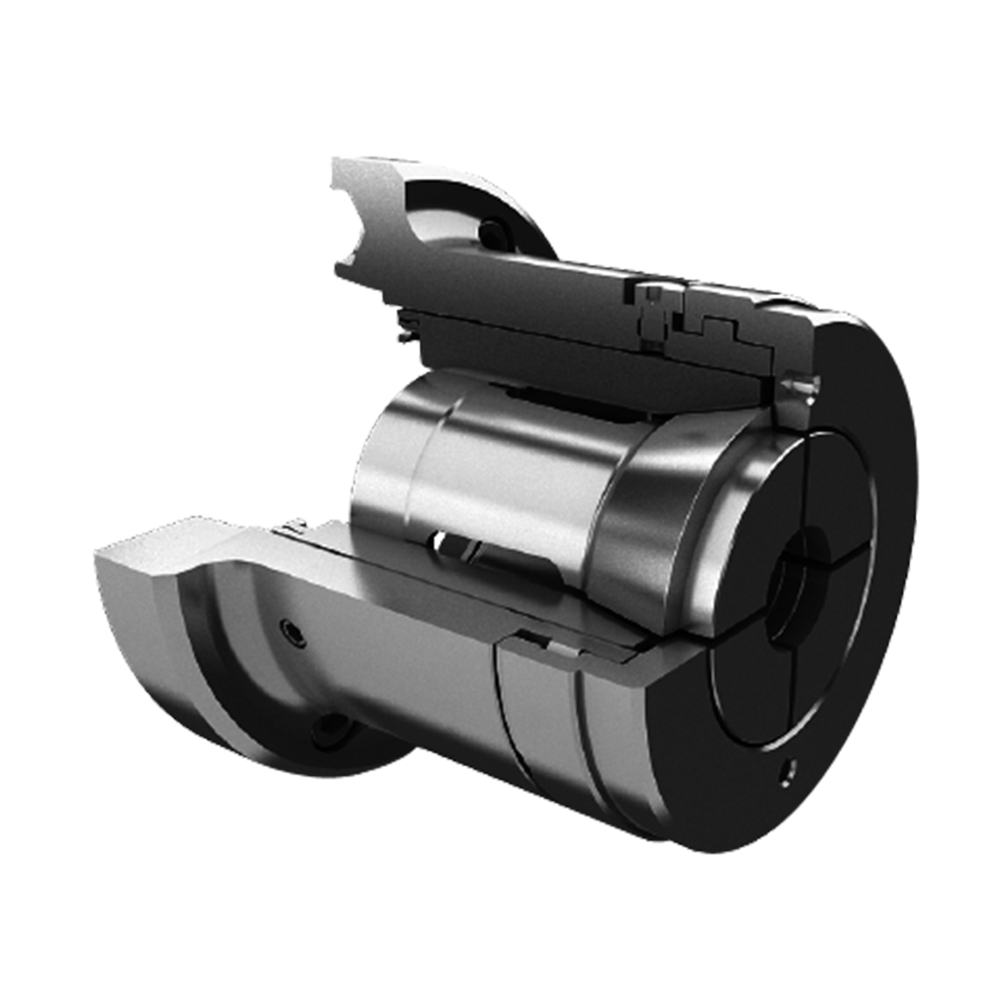

KSZ-MB

Hylschuck

Collet chuck for bar machining

• Bar Ø 3-80
• Collets DIN 6343

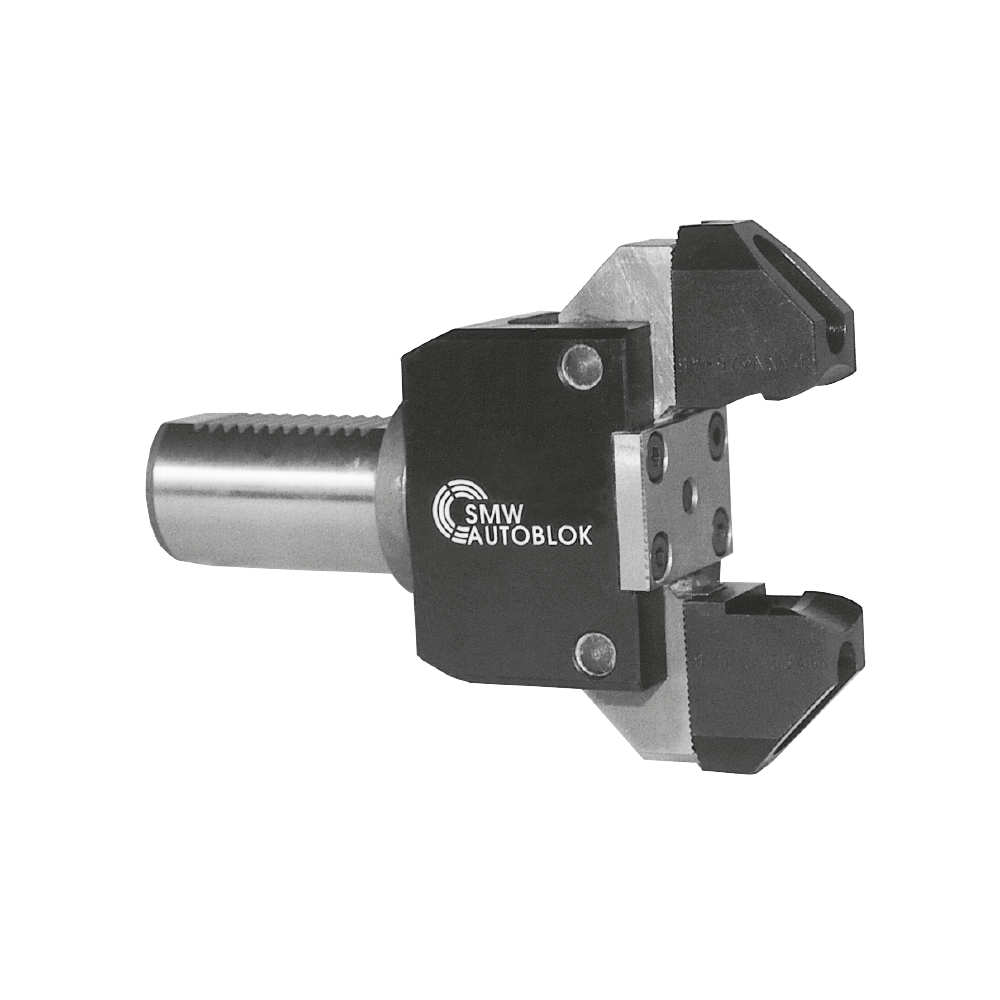

GF 80

Tandning i TUM

Stångdragande chuck

Fjädermanövrerad stångdragande chuck

• För statisk utvändig fastspänning
