Manual or power operated expanding mandrels / Adapter flanges

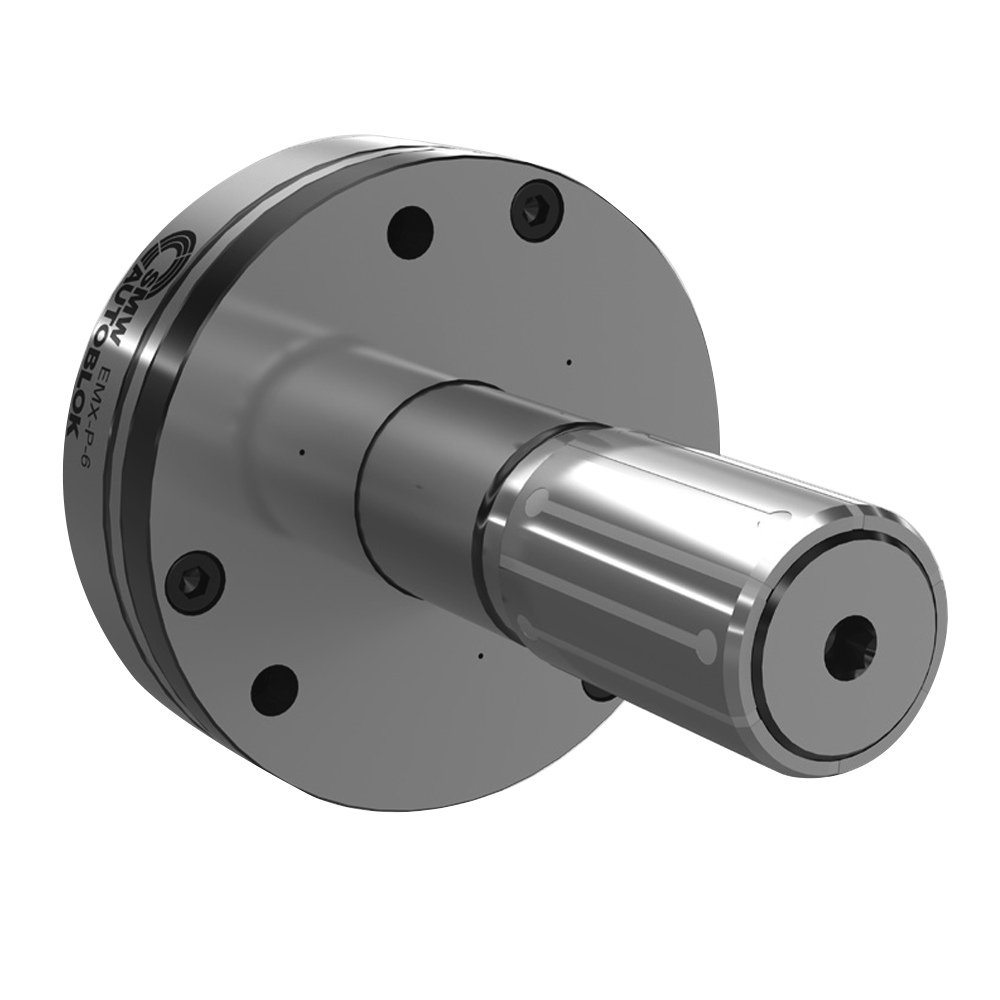

EMX-P

Expanding mandrel

Power operated

Power operated sleeve expanding mandrels Ø 14.7 - 131.7 mm

• Highest repeatability
• Size 1 - 11
• Large expansibility
• Preparation for air sensing
• Segment sleeves vulcanized (option)

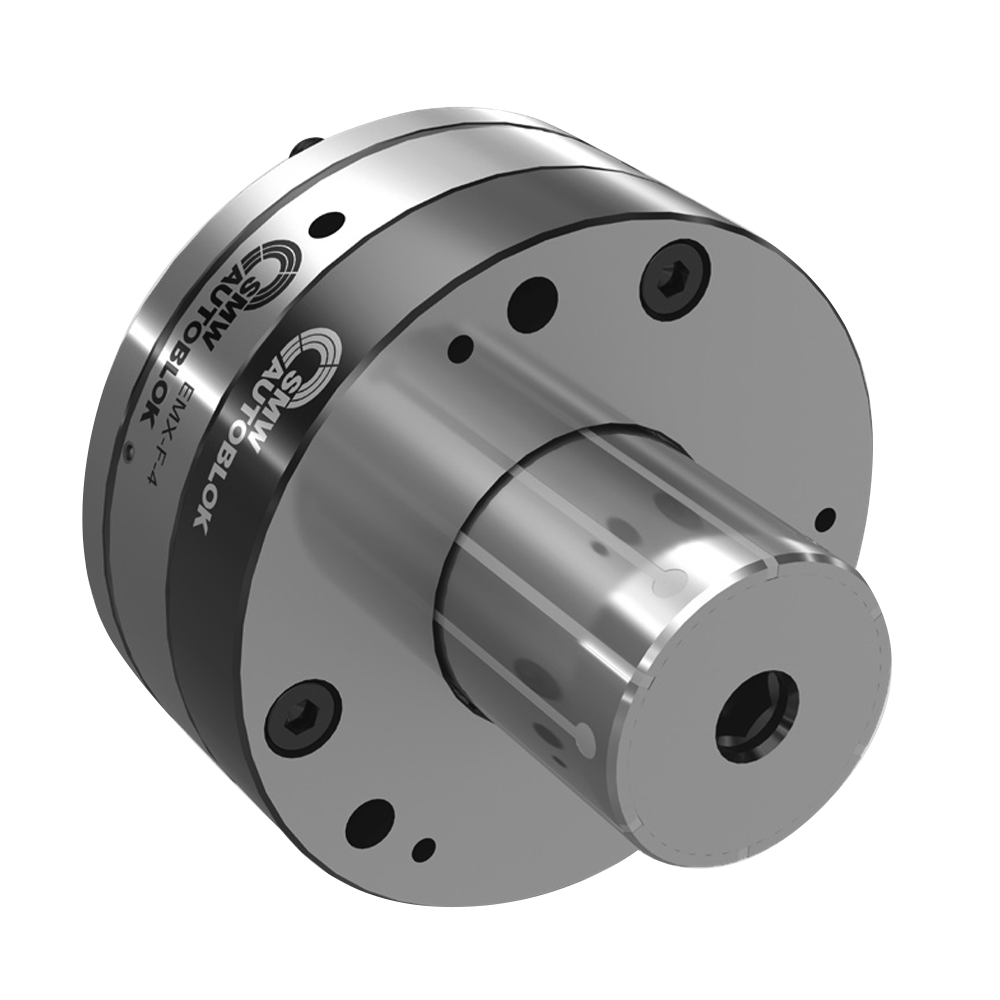

EMX-F/FP

Expanding mandrel

Power operated

Power operated sleeve expanding mandrels Ø 19.7 - 132.9 mm

• Highest repeatability
• Size 1 - 6
• Large expansibility
• Preparation for air sensing
• FP: with pull-down
• Segment sleeves vulcanized (option)

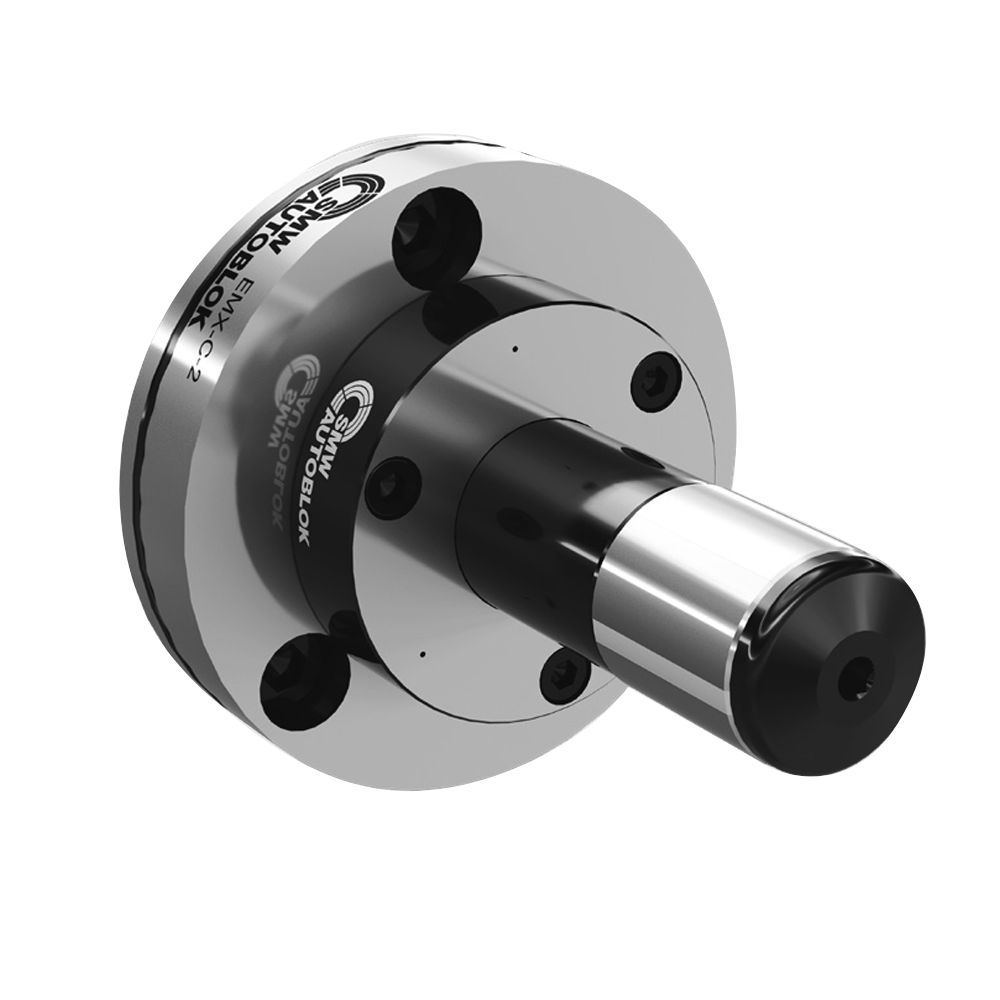

EMX-C

Segment sleeve mandrel

Power operated

Power operated segment expanding mandrels Ø 25 - 121 mm

• Highest repeatability
• Size 1 - 5
• Large expansibility
• Preparation for air sensing
• Case hardened / wear resistant segment sleeves

Adapter Flanges EMX

ISO-A for sleeve expanding mandrels

• The sleeve expanding mandrels have a cylindrical admission
• Flanges for machine spindle DIN 55026 / ISO-A 702/1

EM-S

Segment sleeve mandrel

Power operated

Segment sleeve mandrel Ø 18 - 105 mm

• Size 1-4
• Large expansibility

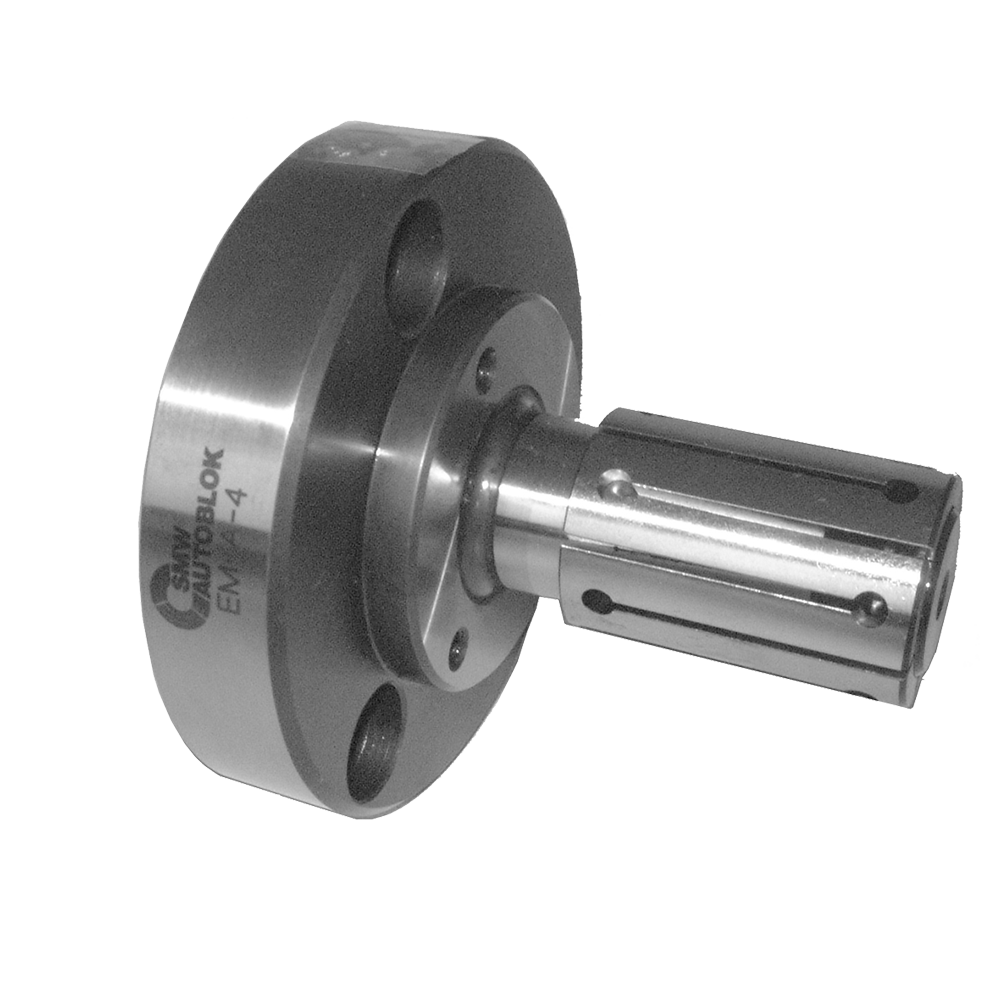

EM-A

Expanding mandrel

Manual or power operated

EM-AL

Expanding mandrels Ø 14.7 - 129.7 mm

• Size 1-11
• Large expansibility
• EM-AL: body lengthened

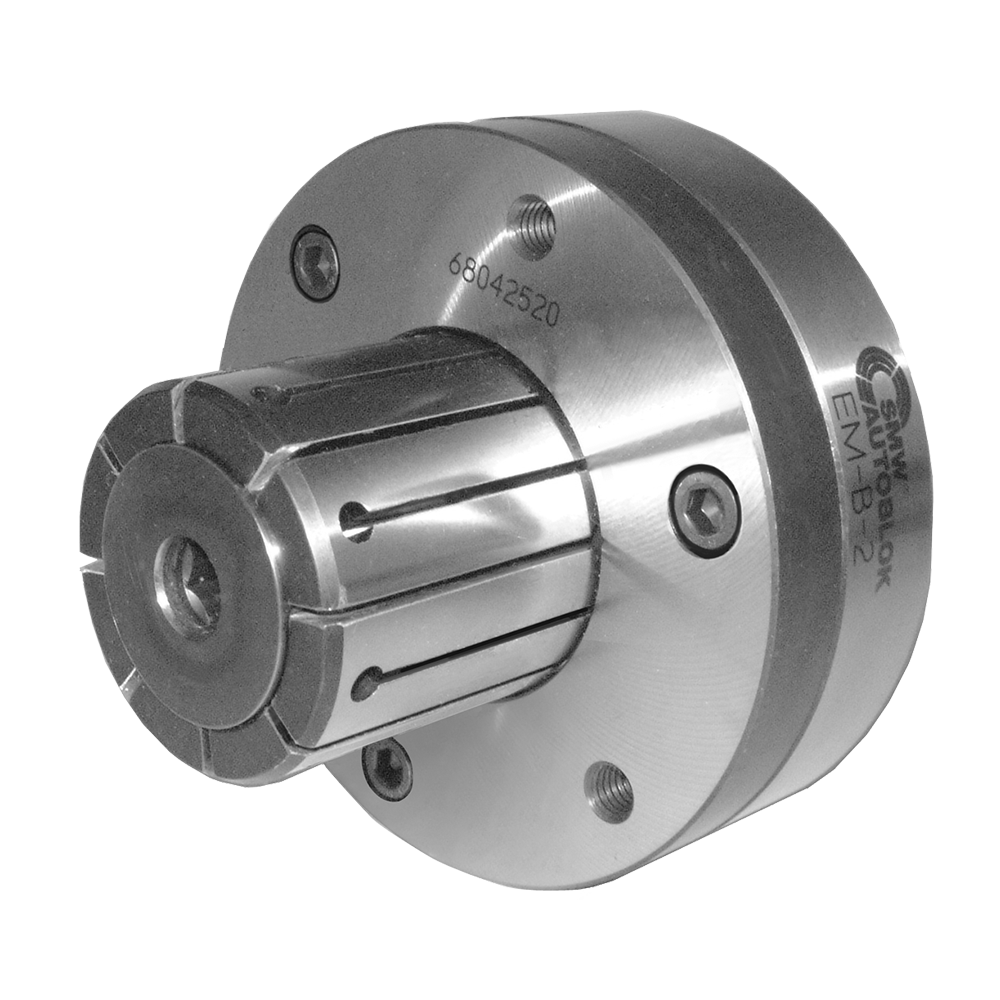

EM-B

Expanding mandrel

Manual or power operated

Expanding mandrel

• Size 0-4
• Large expansibility

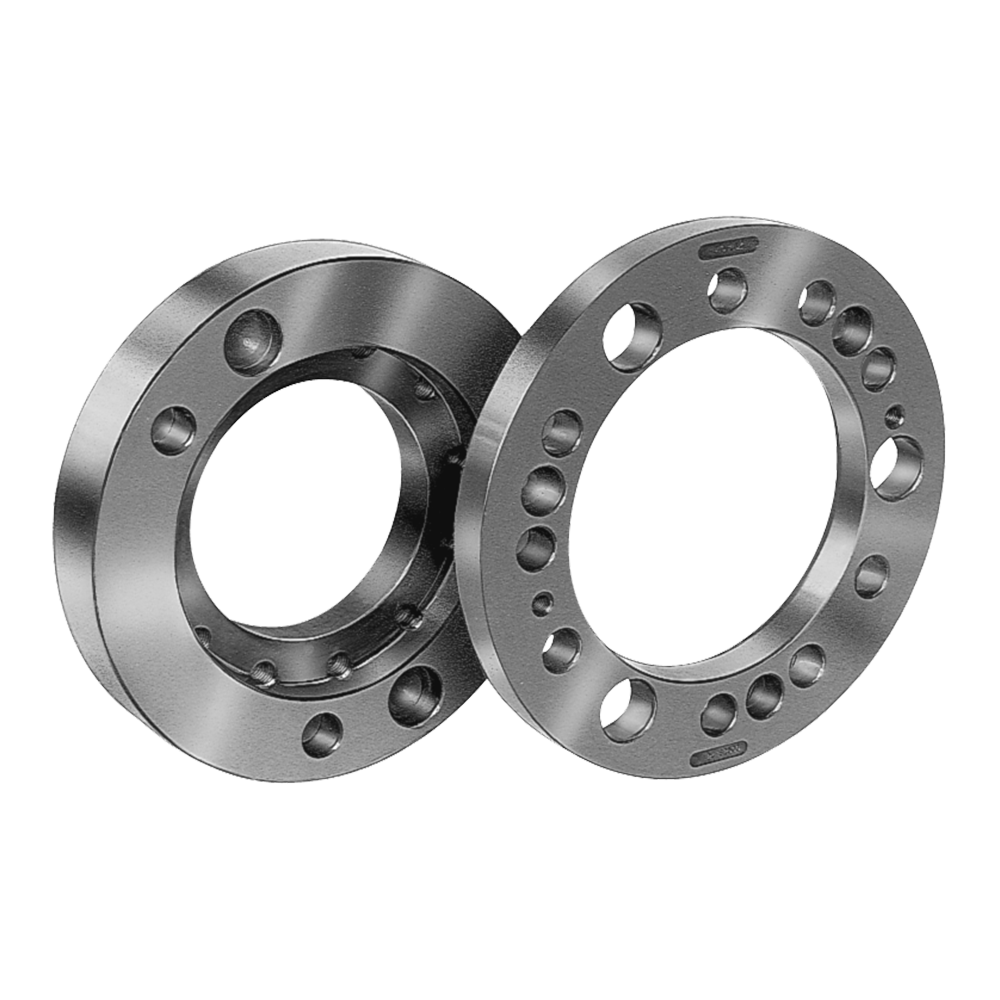

Flange for EM-A EM-B

ISO-A for expanding mandrels

ISO-A Flange for Expanding mandrels

• Mandrels EM-A and EM-B have cylindrical mounting
• Adapters for DIN55026 / ISO-A702 / 1 spindlenoses

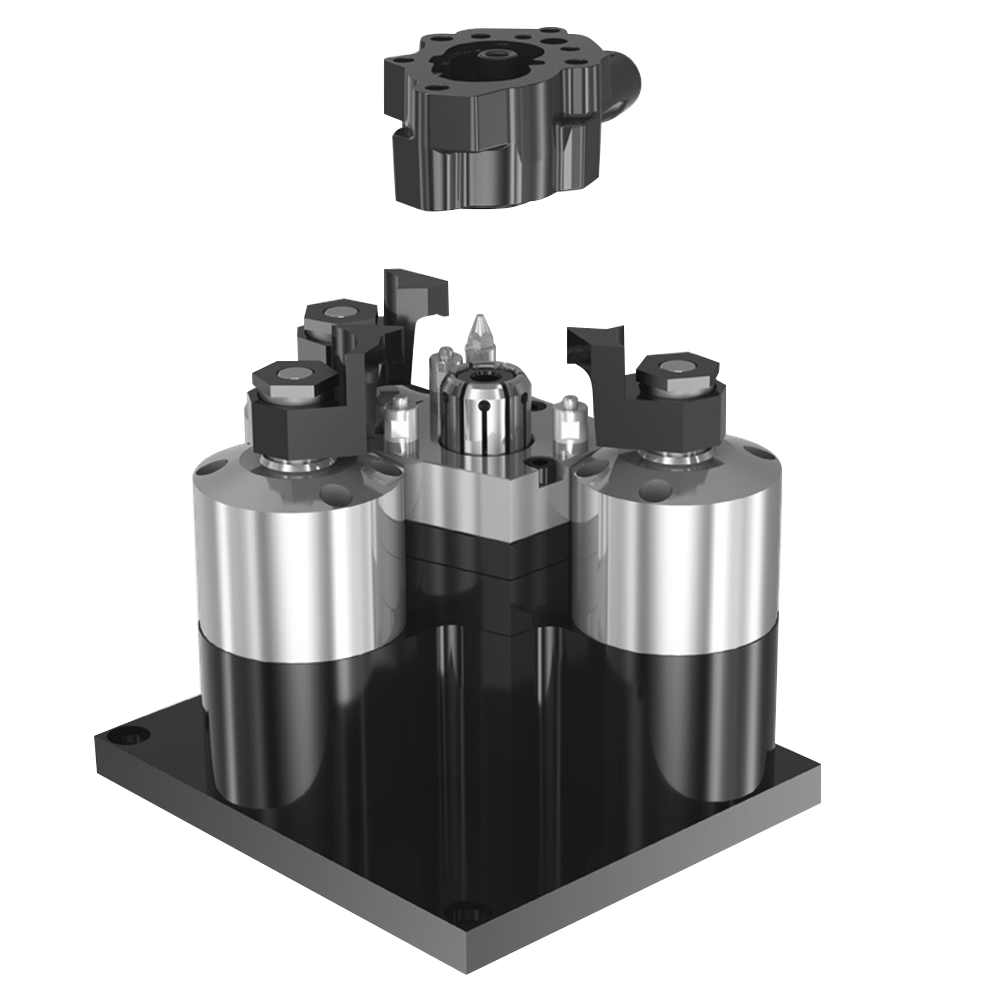

Special expanding mandrel

Special solutions for your applications

Special Clamping Solutions

Application examples

• Sliding jaw collet chuck
• Special sleeve mandrels
• Sliding jaw mandrels
• Combination chuck
