Pneumatic/hydraulic front-end chucks / Control units

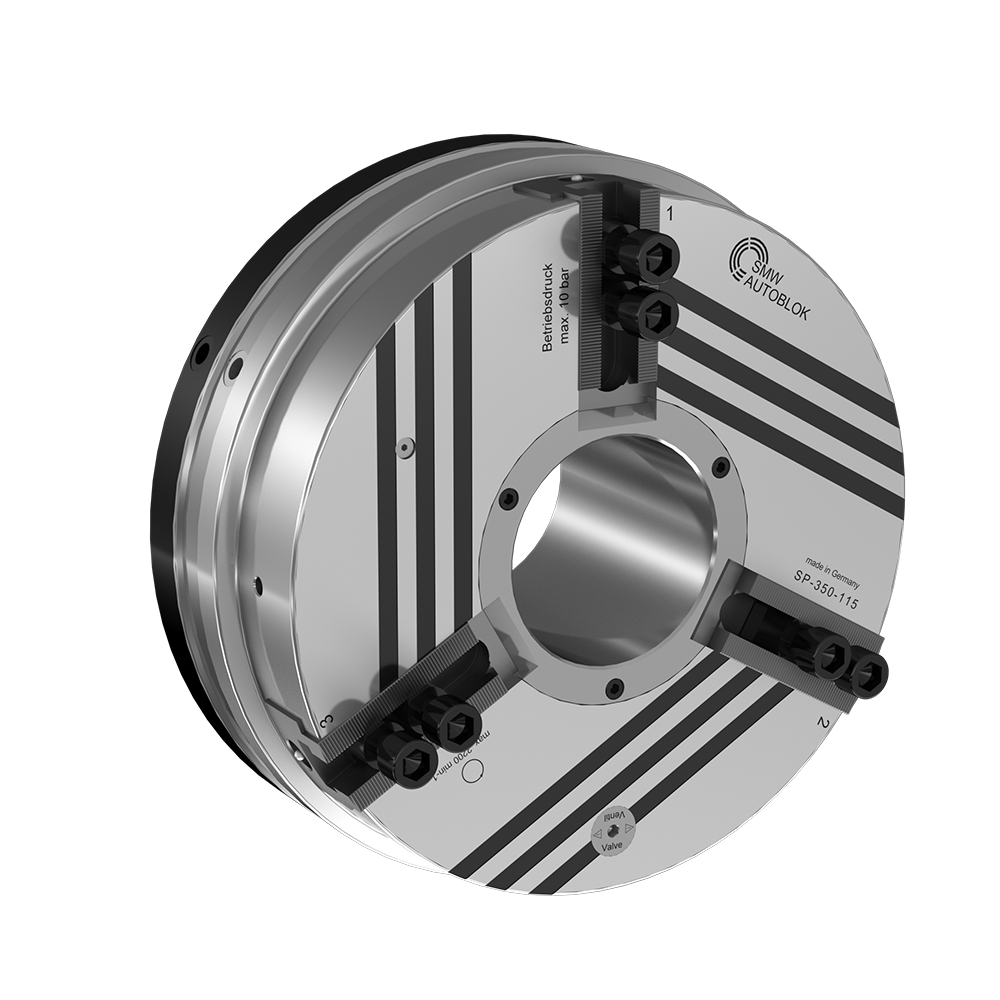

SP + SP-ES + SP-L

INCH serration

Front-end pneumatic power chucks extra large through hole Ø 26 - 115 mm

• EXTRA large through hole
• 3 jaws, chuck size 125-350
• SP-ES: chuck with rapid and clamping stroke
• SP-L: chuck with long jaw stroke

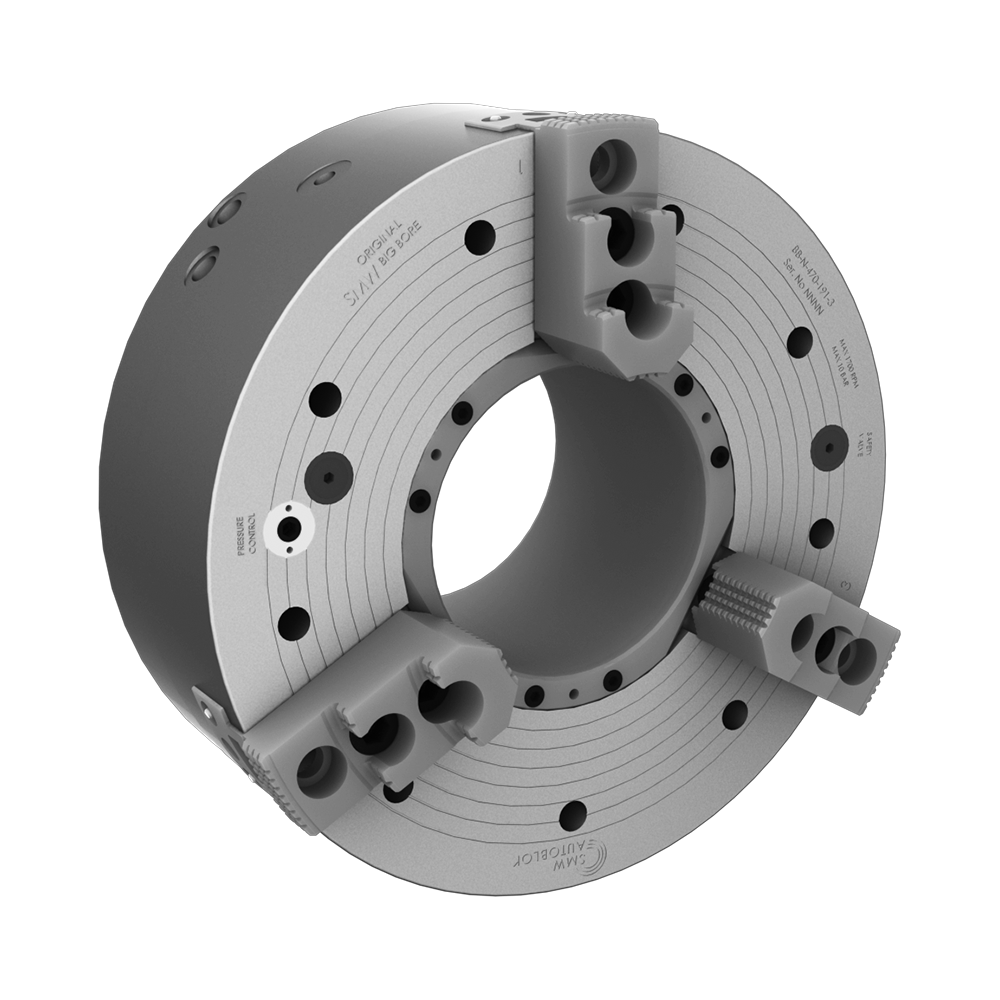

BIG BORE BB-N

INCH serration

Front-end pneumatic power chucks extra large through hole Ø 140 - 410 mm

• Chuck size 400-800
• Standard jaw stroke
• 3 jaws

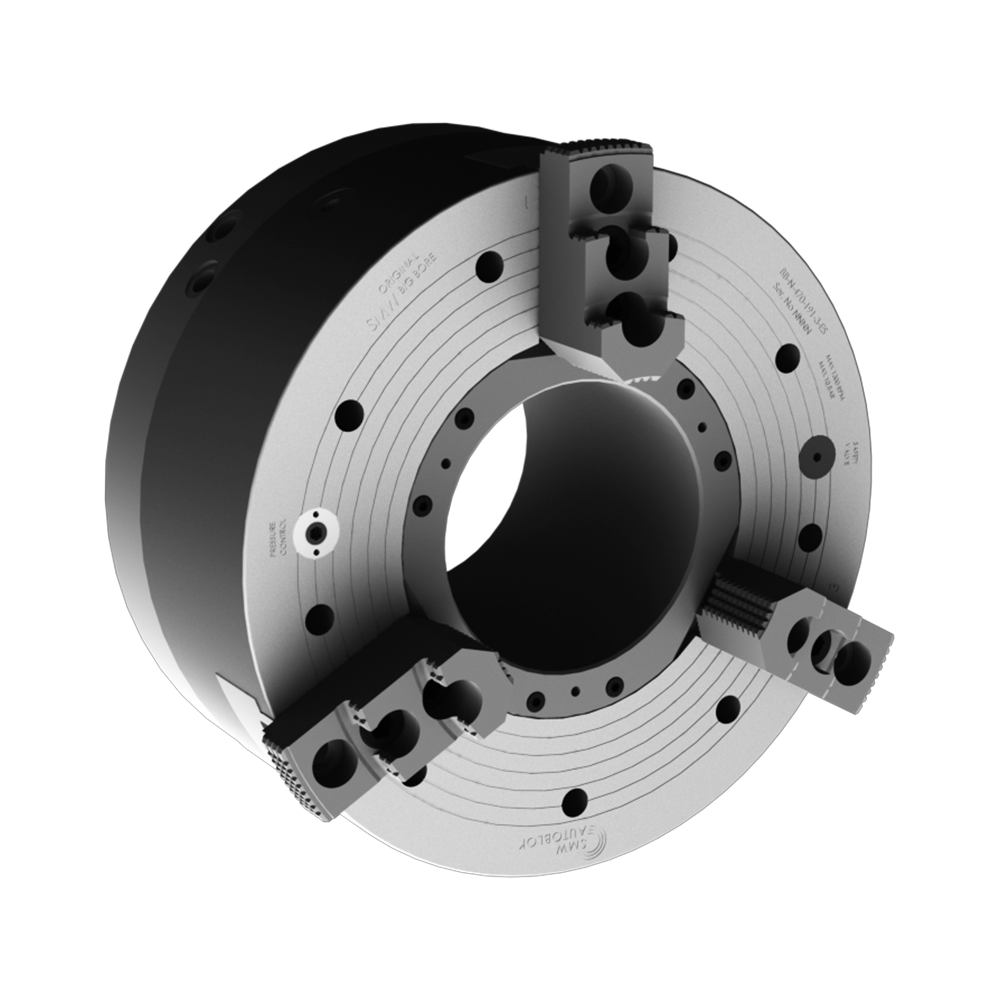

BIG BORE BB-N-ES

INCH serration

Front-end pneumatic power chucks

• extra large through hole Ø 140 - 560 mm
• Chuck size 400-1000
• Extended jaw stroke
• 3 jaws

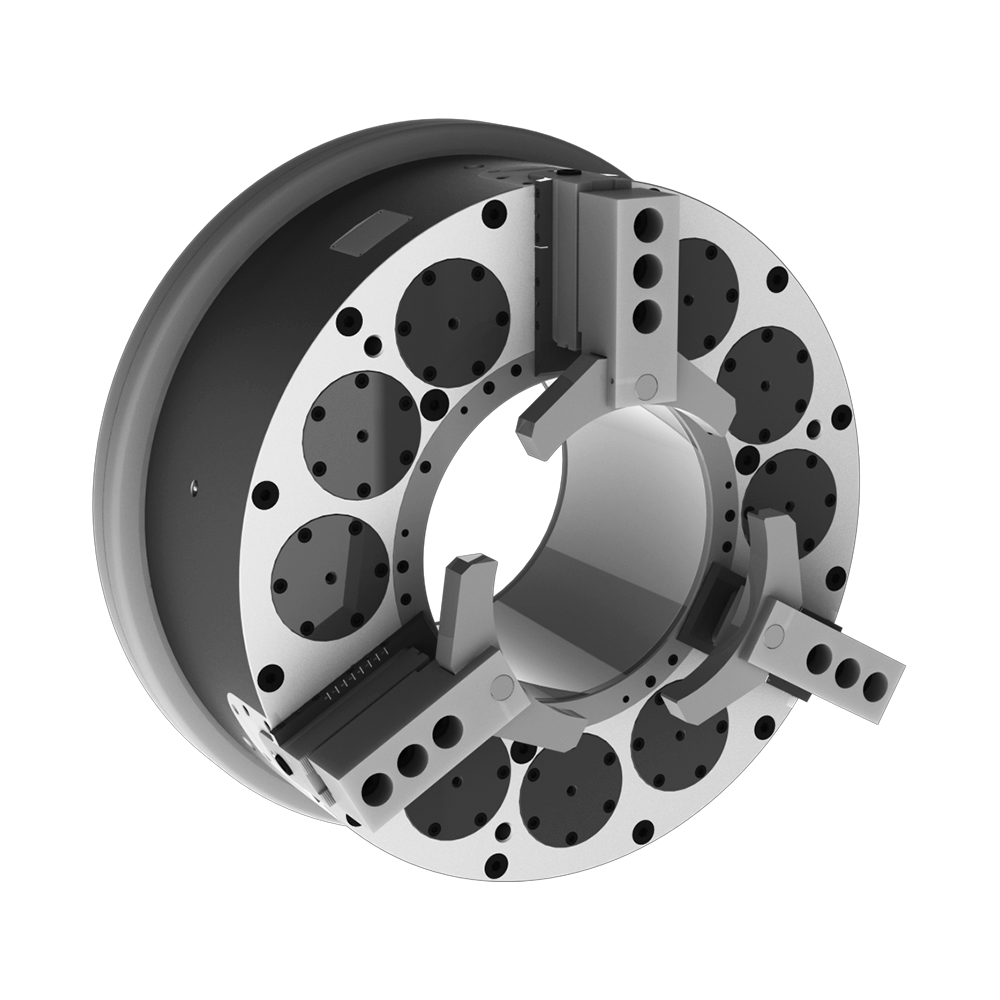

BIG BORE BB-SC

INCH serration

Front-end spring clamp power chucks

• EXTRA large through hole Ø 275 - 565 mm
• Chuck size 600-1020
• Clamping with spring packs
• Rapid and clamping stroke

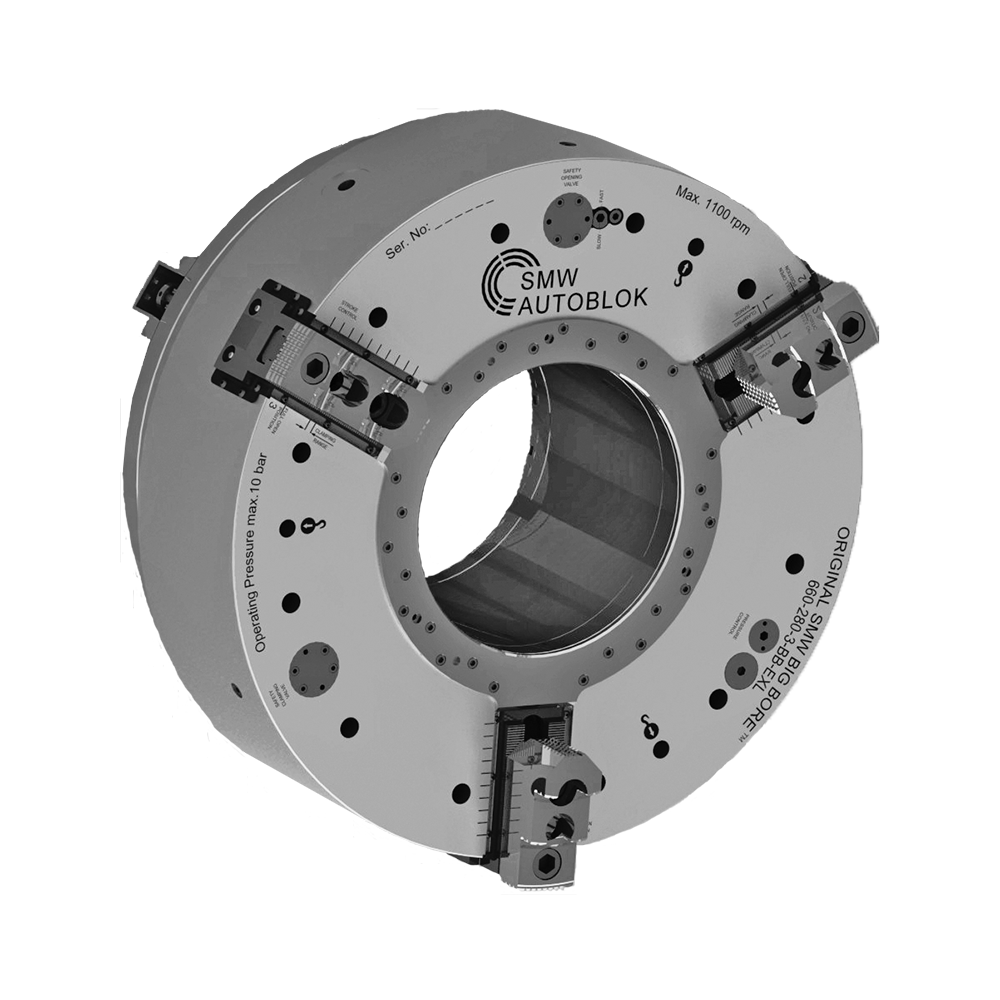

BIG BORE BB-EXL2G

INCH serration

Front-end pneumatic power chucks

• extra large through hole Ø 191 - 390 mm
• Chuck size 510-900
• 3 jaws
• Extended jaw stroke

BIG BORE BB-AZ2G

INCH serration

Front-end pneumatic power chucks

• extra large through hole Ø 275 - 560 mm
• Chuck size 685-1000
• Self centering or compensating clamping
• Chuck with extra long rapid and clamping stroke - 3 jaws

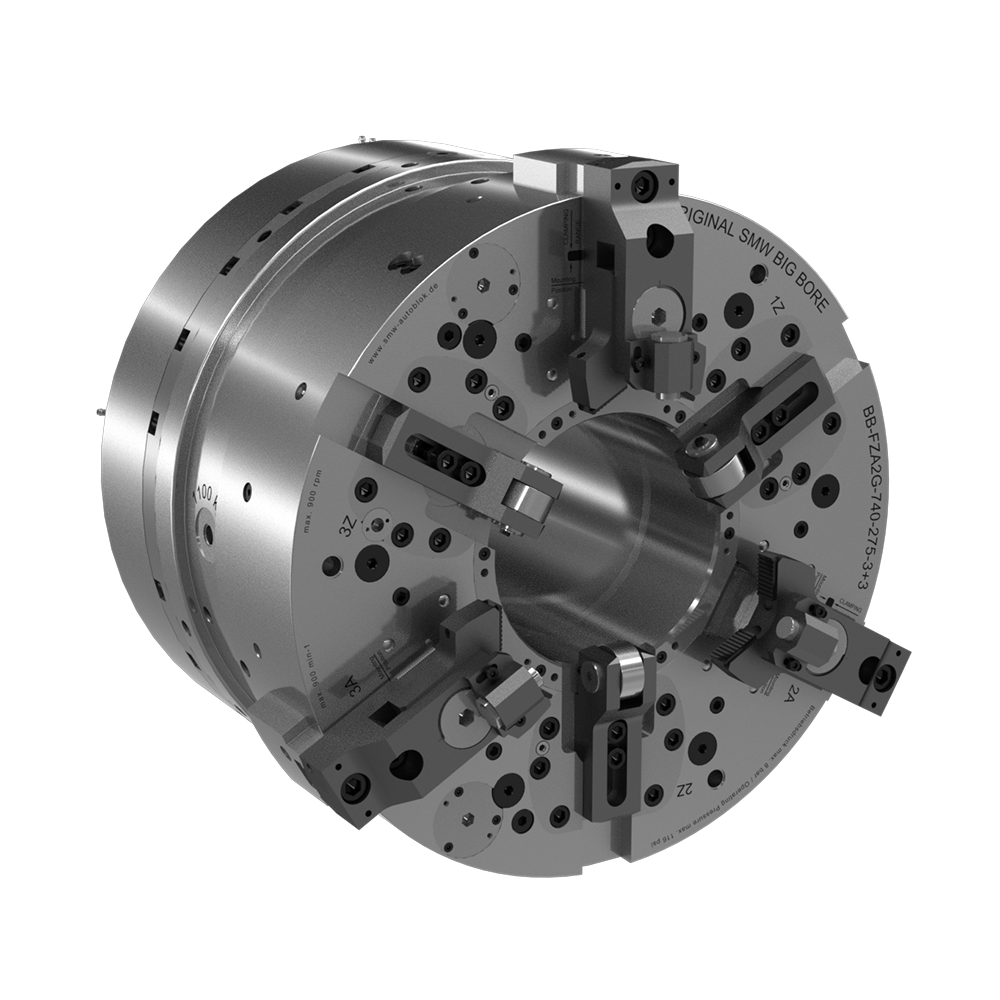

BIG BORE BB-FZA2G

INCH serration

Front-end pneumatic 6-jaw sequence chucks

• EXTRA large through hole Ø 275 - 390 mm
• Chuck size 740-920
• 3 integrated centering jaws and 3 compensating jaws

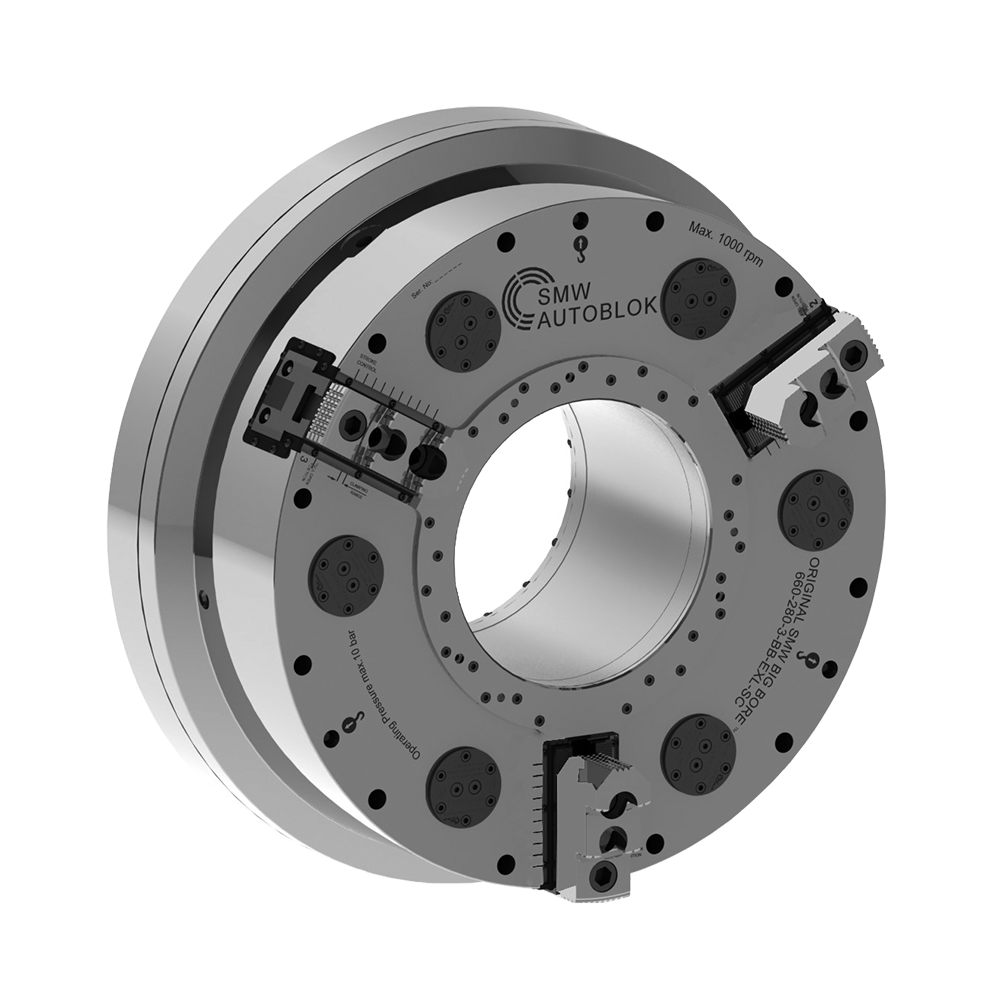

BIG BORE BB-EXL-SC2G

INCH serration

Front-end spring clamp power chucks

• EXTRA large through hole Ø 191 - 390 mm
• Chuck size 510-900
• Clamping with gas spring
• Extra long rapid and clamping stroke

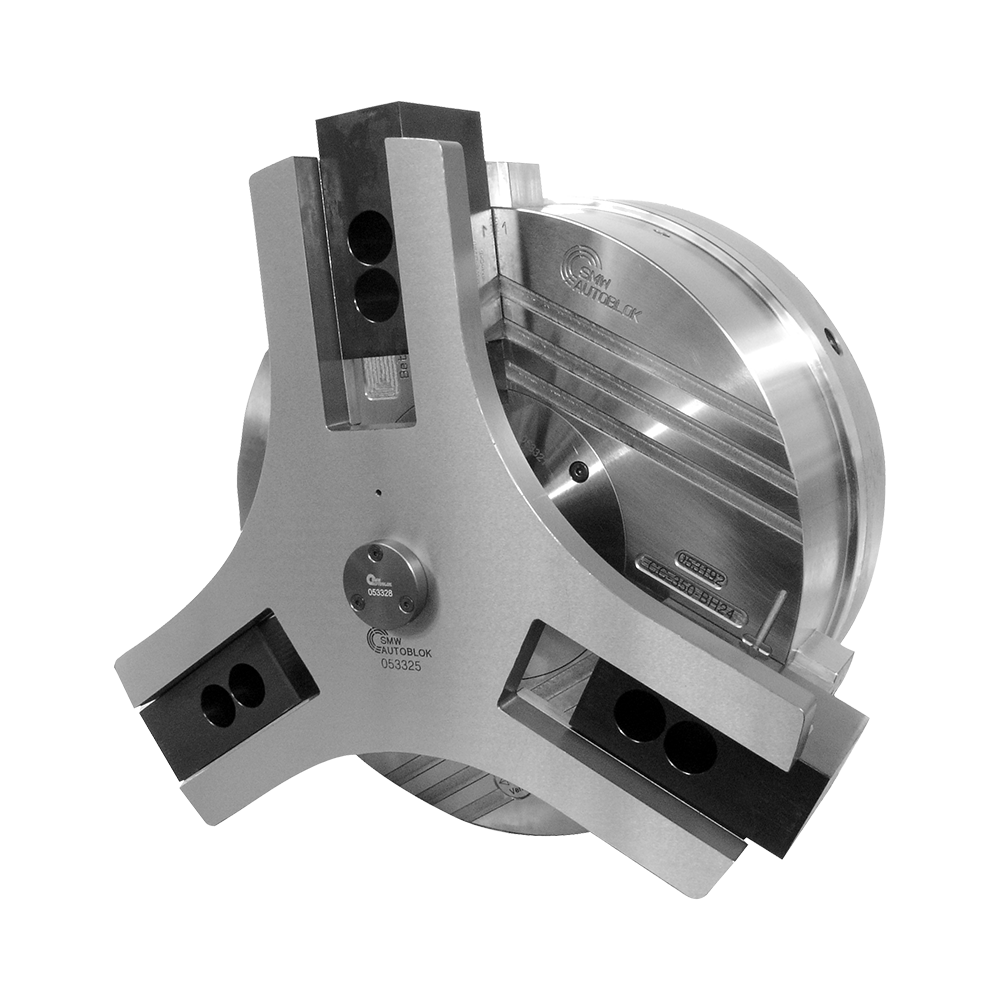

CC

INCH serration

Stationary centering and dampening chuck, pneumatic Ø 240 - 470 mm

• With integrated dampener

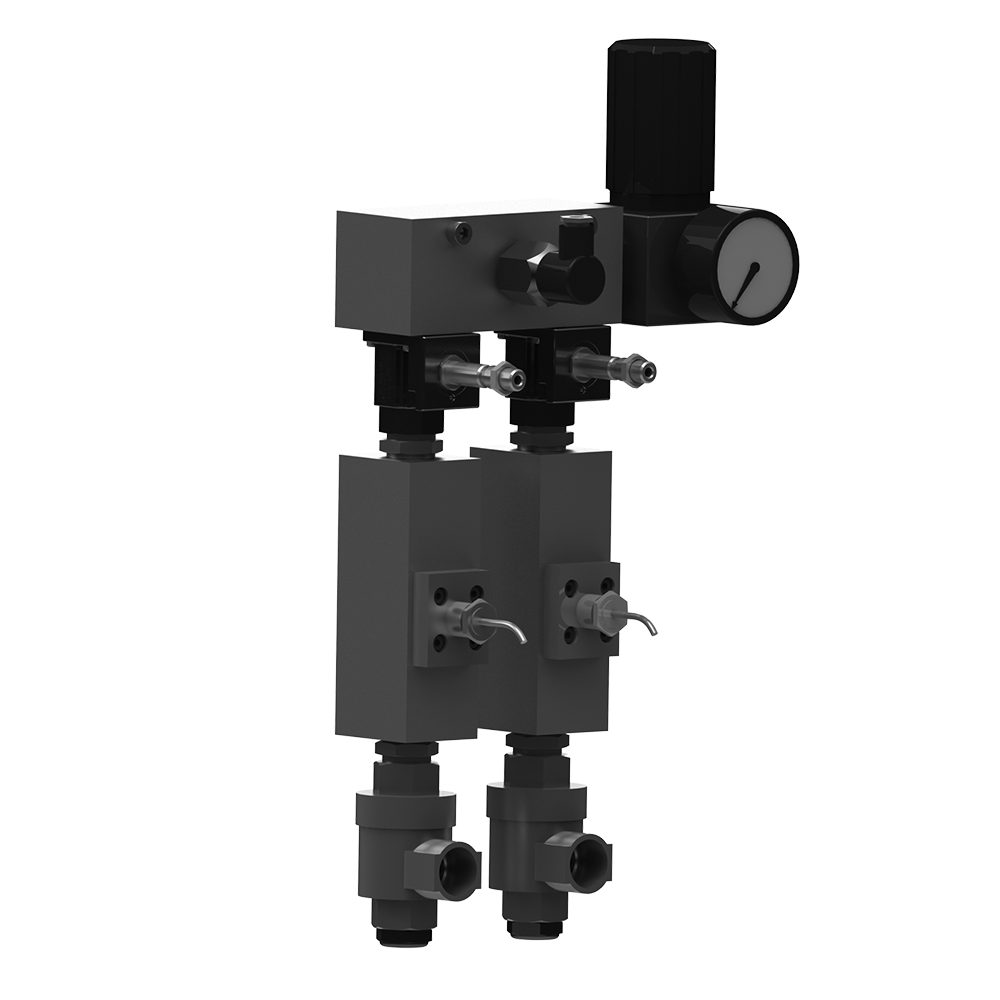

AC-BB

Control unit for SP and Big Bore chucks

1/2“ Design - 3/4“ Design

Electronic safety control unit for pneumatic chucks basic version

• Pneumatic diagram
• Wiring diagram
• Electronic safety control unit
• For SP and Big Bore chucks
• Without pressure control
• Without stroke control

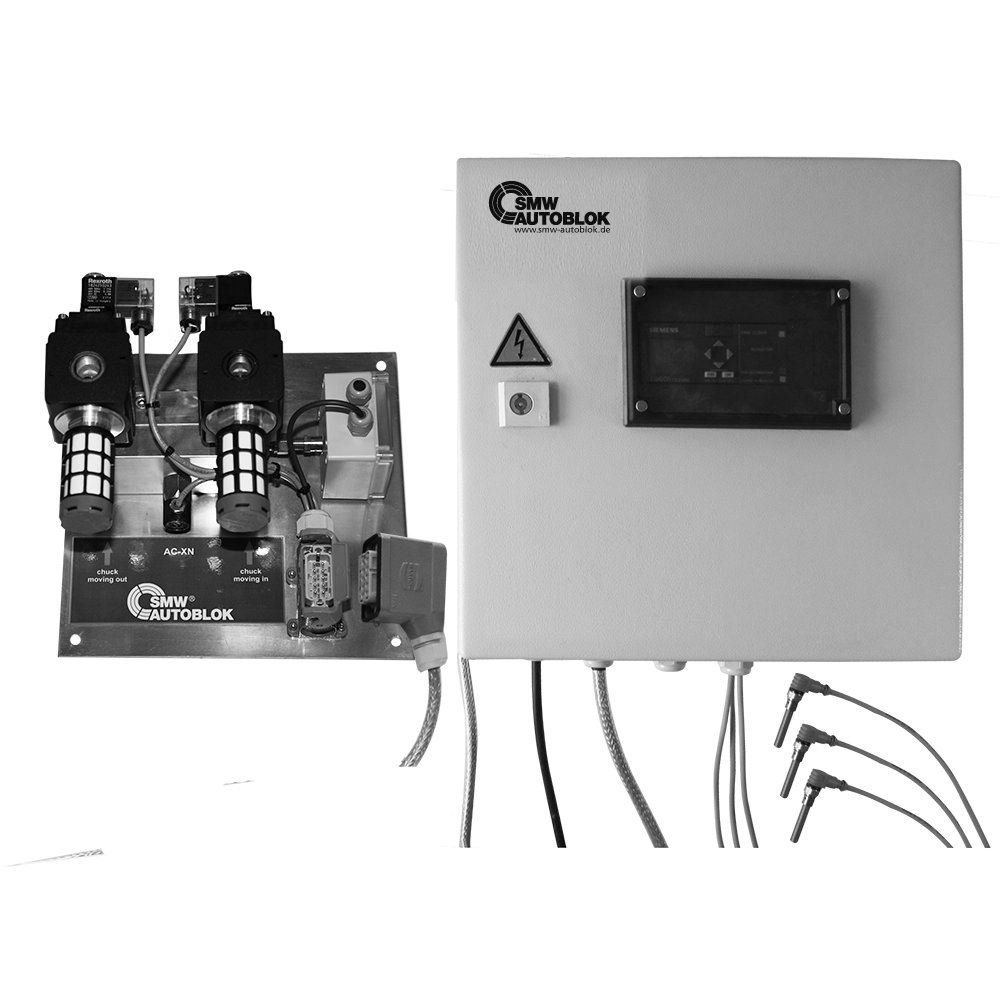

AC-XN

Control unit for pneumatic chucks

1/2“ Design - 3/4“ Design

Electronic safety control unit for pneumatic chucks for all commen voltages

• Pneumatic diagram
• Electric diagram

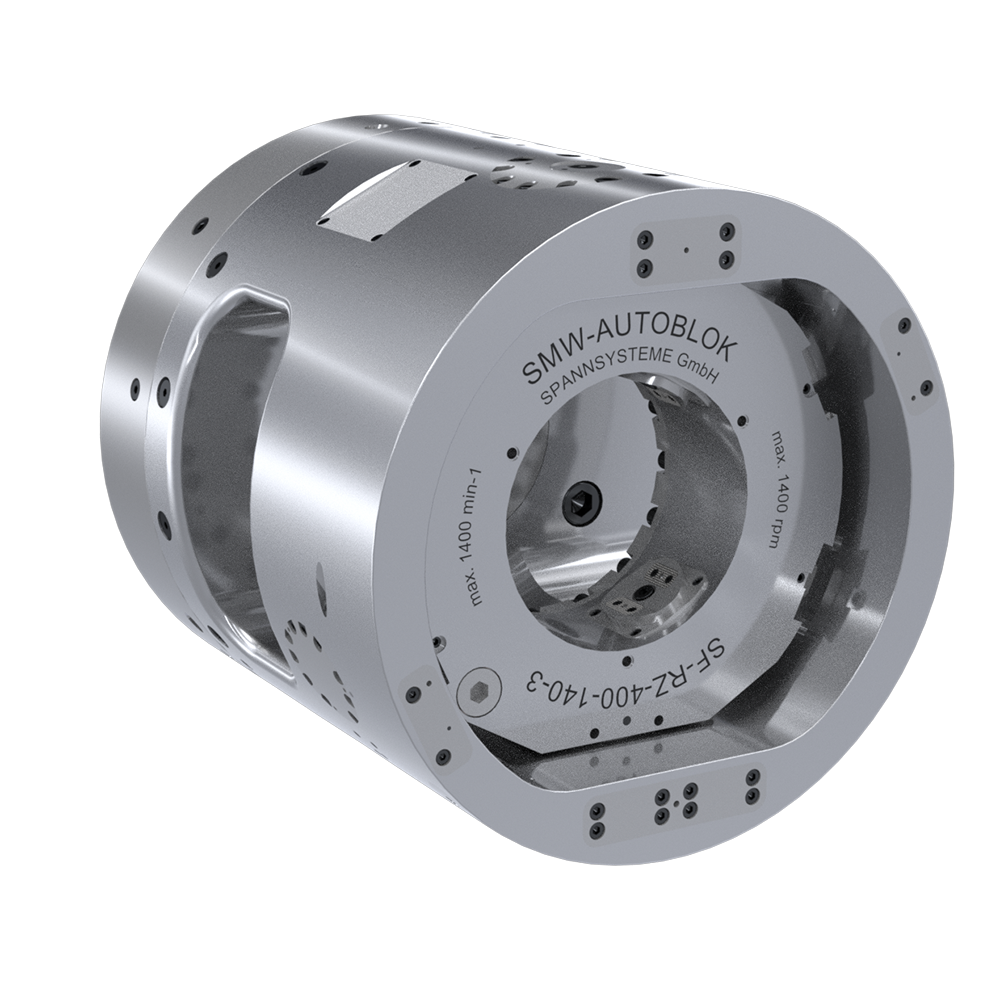

SF-RZ

Tongue & groove

2 Position hydraulic ring indexing chuck

• 3 self-centering jaws
• Large evacuation windows for easy chip flow
• Fullyautomaticandcontrolledindexing

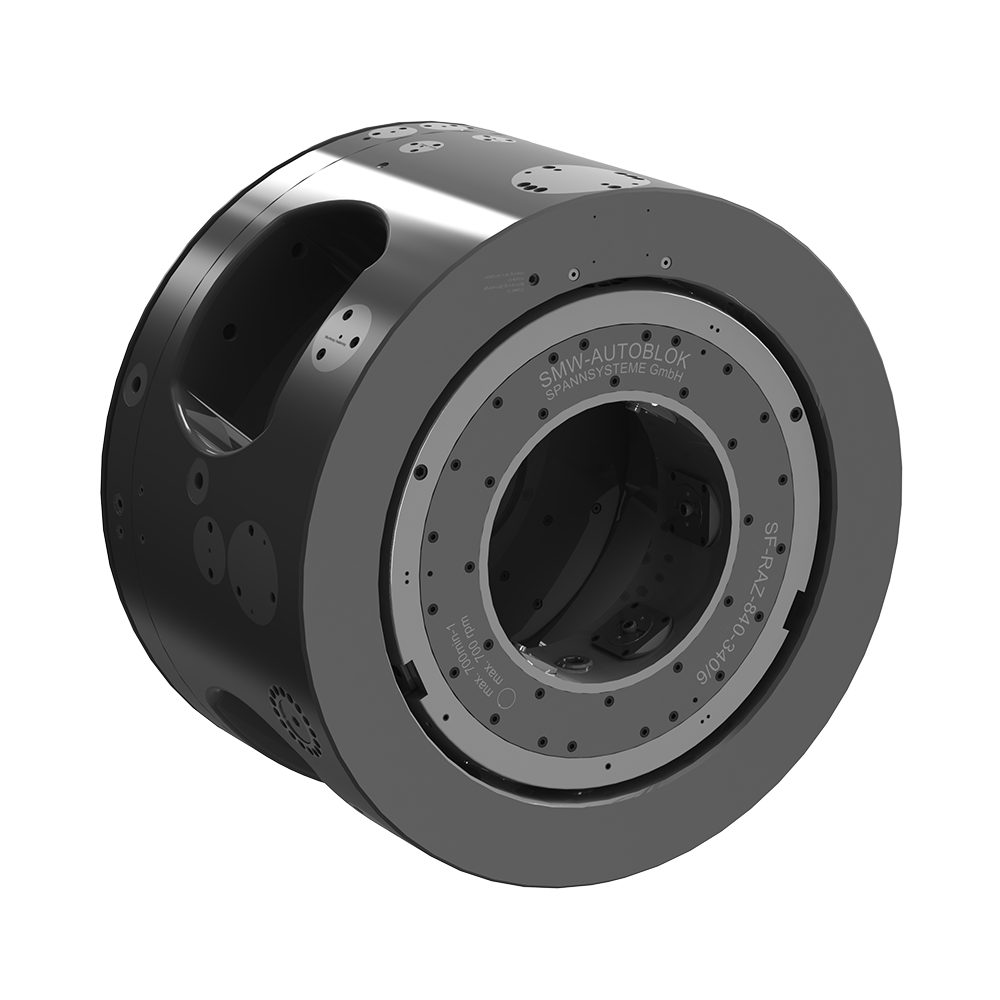

SF-RAZ

Tongue & groove

2 Position hydraulic ring indexing chuck

• 3 self centering and 3 compensating jaws
• Large evacuation windows for easy chip flow
• Fully automatic and controlled indexing
• Hydraulic actuation

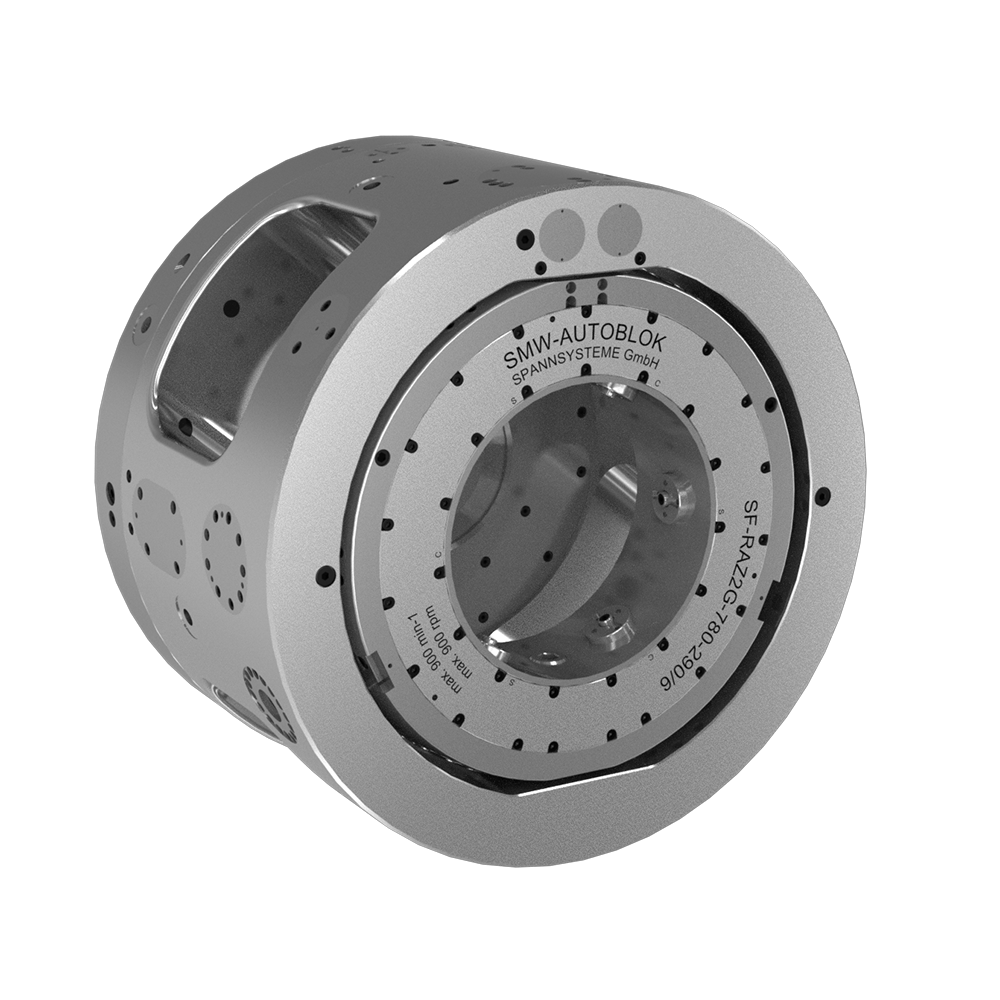

SF-RAZ2G

Tongue & groove

2 Position hydraulic ring indexing chuck

• 3 self centering and 3 compensating jaws
• Very compact design
• Fully automatic and controlled indexing
• Hydraulic actuation

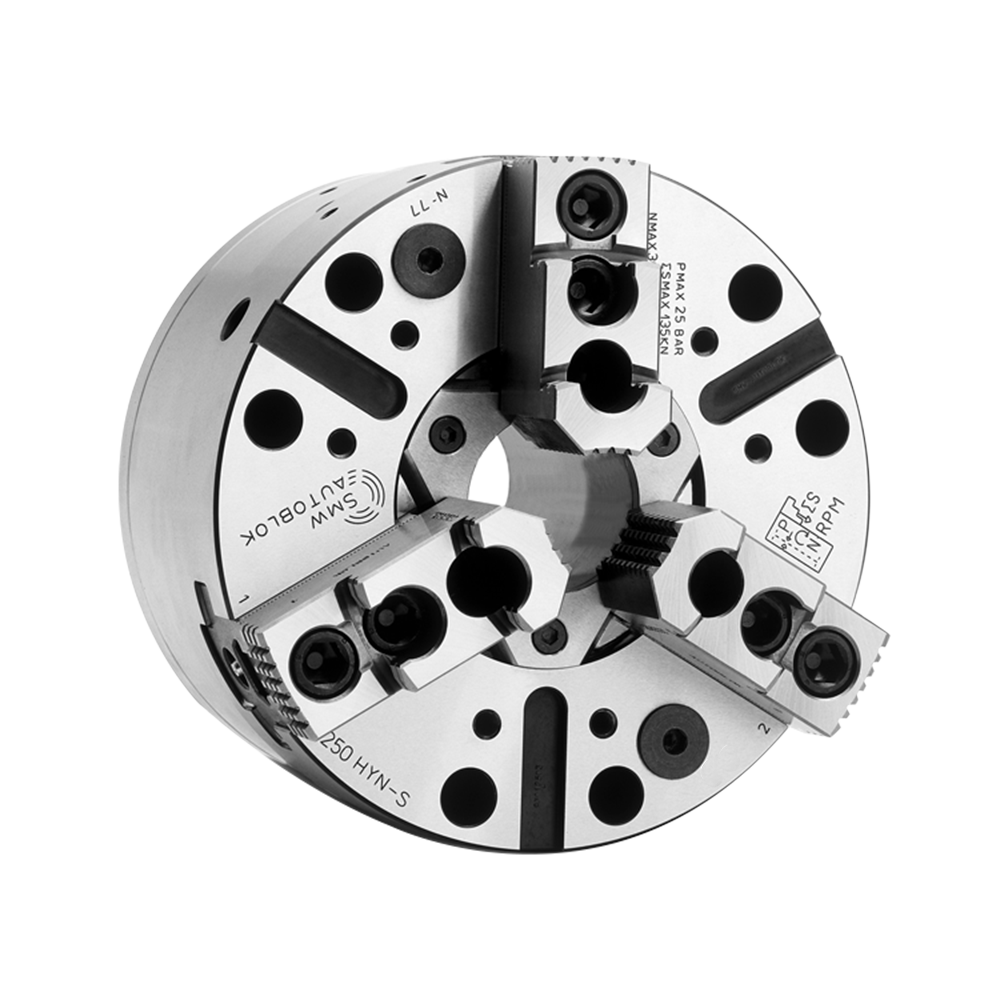

HYND-S

INCH serration

Hydraulic front end chuck Ø 180 - 400 mm

• Oil feed through spindle wall
• 3 and 4 jaws

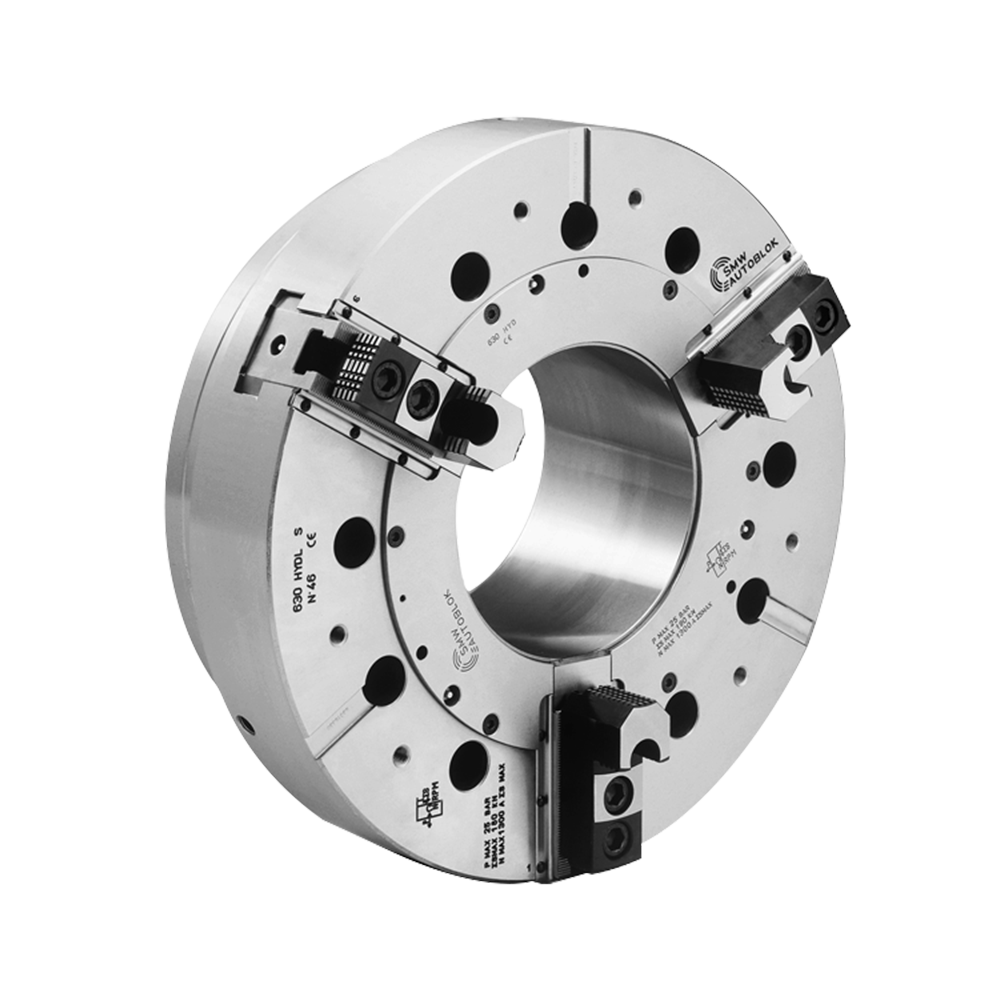

HYDL-S

long stroke

INCH serration

Hydraulic front end chuck Ø 500 - 800 mm

• Oil feed through spindle wall
• 3 jaws
