Pneumatic/hydraulic front-end chucks / Control units

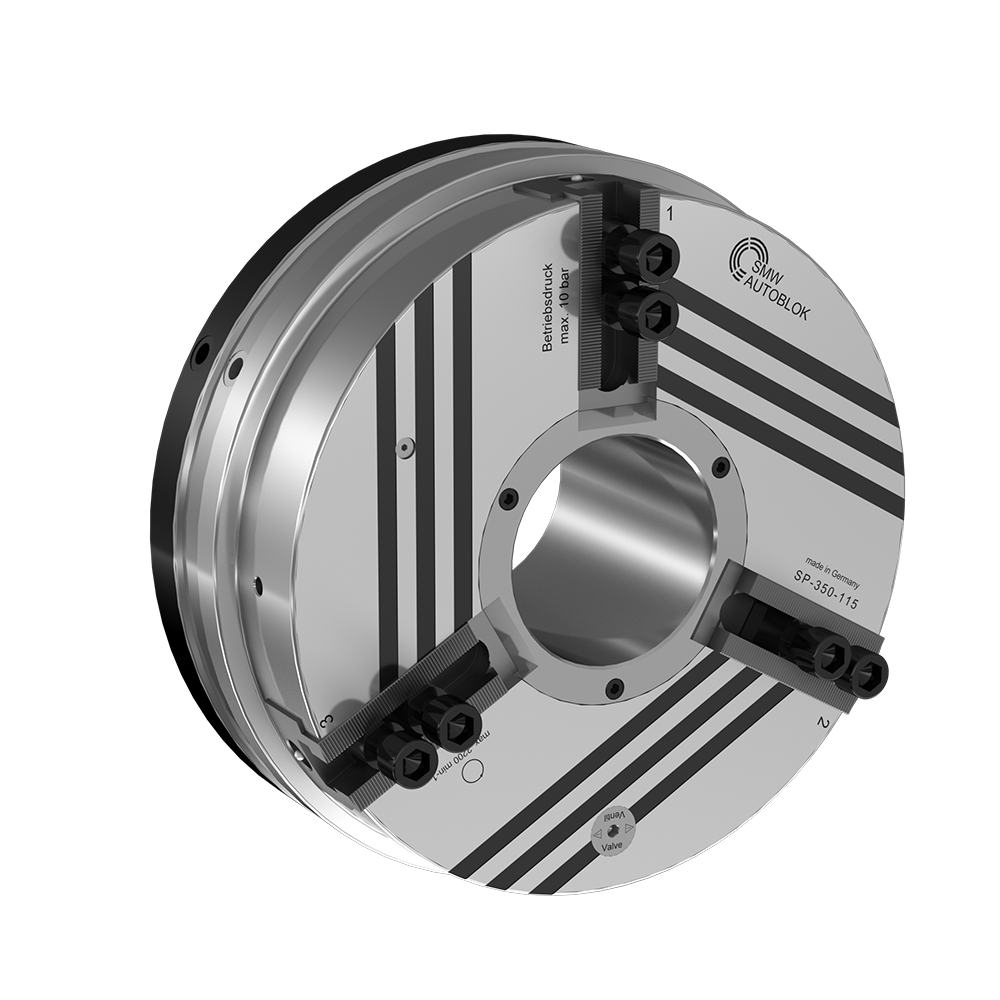

SP + SP-ES + SP-L

SP + SP-ES + SP-L

INCH serration

Front-end pneumatic power chucks extra large through hole Ø 26 - 115 mm

  • EXTRA large through hole
  • 3 jaws, chuck size 125-350
  • SP-ES: chuck with rapid and clamping stroke
  • SP-L: chuck with long jaw stroke
BIG BORE BB-N

BIG BORE BB-N

INCH serration

Front-end pneumatic power chucks extra large through hole Ø 140 - 410 mm

  • Chuck size 400-800
  • Standard jaw stroke
  • 3 jaws
BIG BORE BB-N-ES

BIG BORE BB-N-ES

INCH serration

Front-end pneumatic power chucks

  • extra large through hole Ø 140 - 560 mm
  • Chuck size 400-1000
  • Extended jaw stroke
  • 3 jaws
BIG BORE BB-SC

BIG BORE BB-SC

INCH serration

Front-end spring clamp power chucks

  • EXTRA large through hole Ø 275 - 565 mm
  • Chuck size 600-1020
  • Clamping with spring packs
  • Rapid and clamping stroke

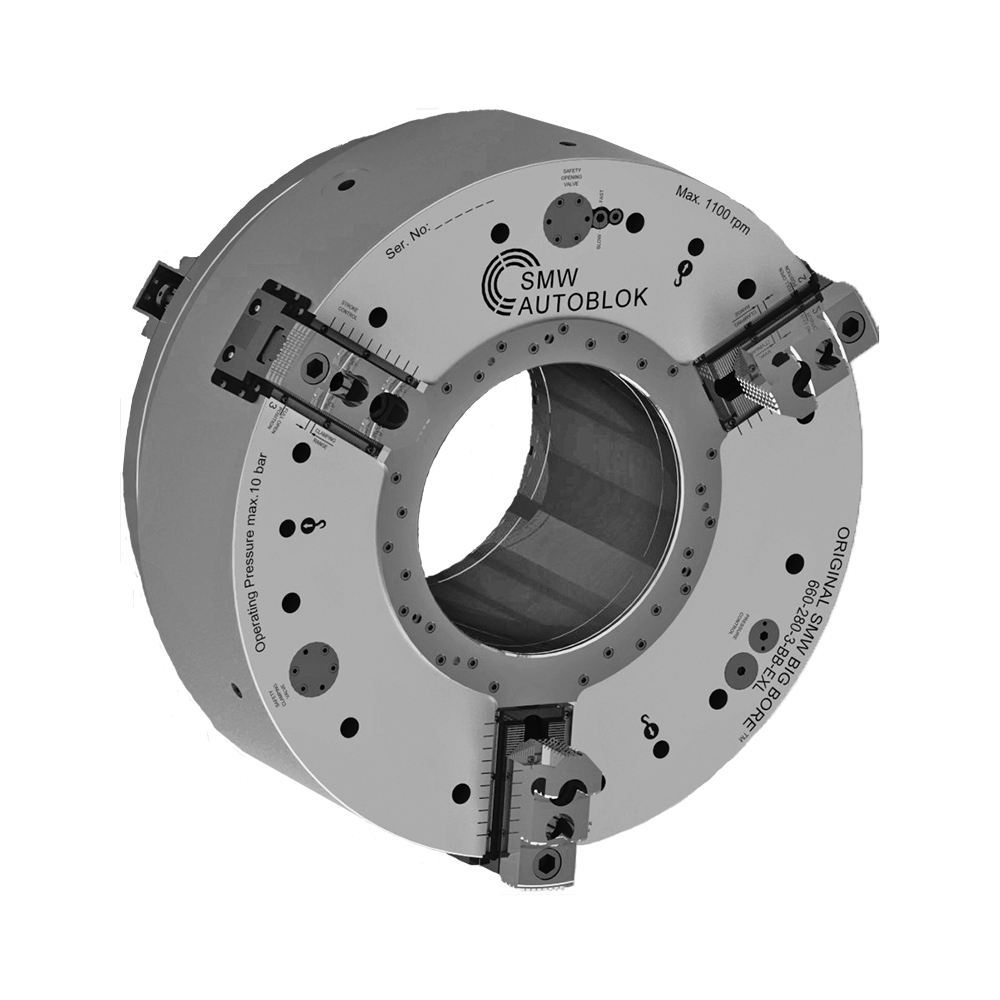

BIG BORE BB-EXL2G

BIG BORE BB-EXL2G

INCH serration

Front-end pneumatic power chucks

  • extra large through hole Ø 191 - 390 mm
  • Chuck size 510-900
  • 3 jaws
  • Extended jaw stroke
BIG BORE BB-AZ2G

BIG BORE BB-AZ2G

INCH serration

Front-end pneumatic power chucks

  • extra large through hole Ø 275 - 560 mm
  • Chuck size 685-1000
  • Self centering or compensating clamping
  • Chuck with extra long rapid and clamping stroke - 3 jaws
BIG BORE BB-FZA2G

BIG BORE BB-FZA2G

INCH serration

Front-end pneumatic 6-jaw sequence chucks

  • EXTRA large through hole Ø 275 - 390 mm
  • Chuck size 740-920
  • 3 integrated centering jaws and 3 compensating jaws

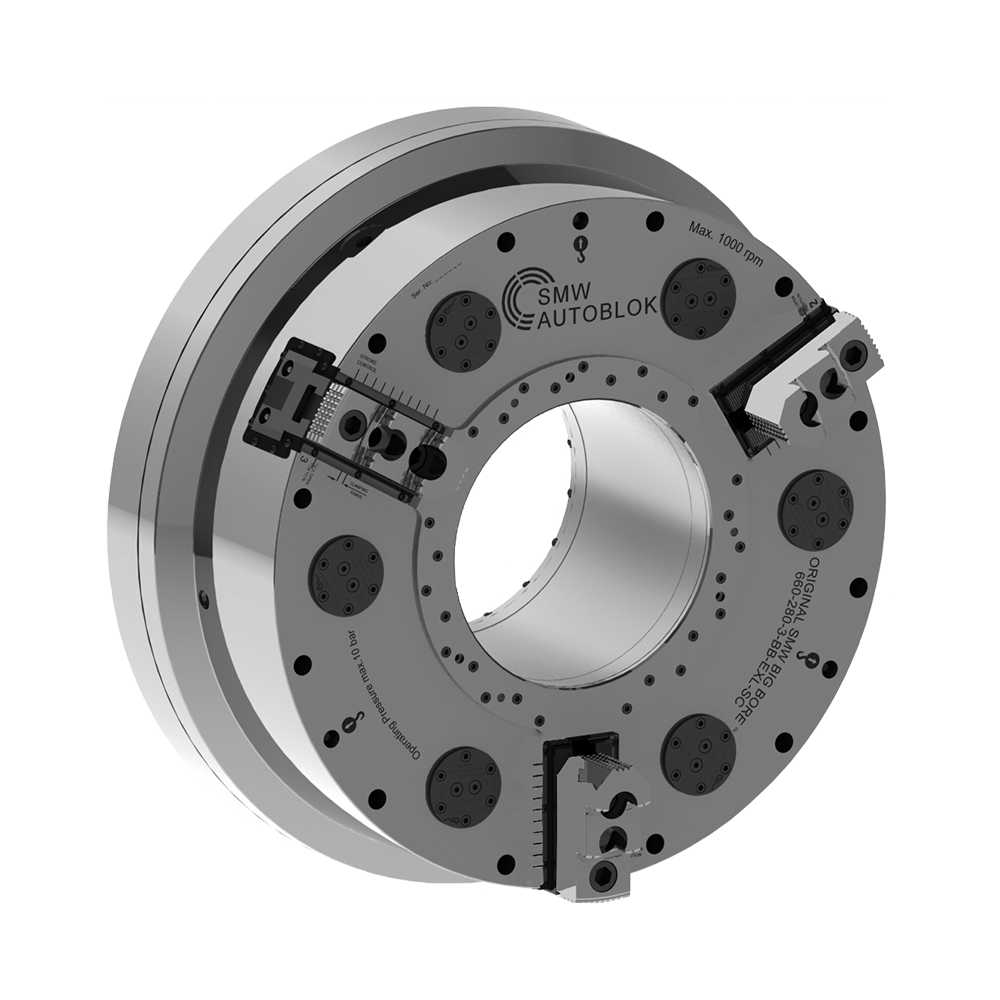

BIG BORE BB-EXL-SC2G

BIG BORE BB-EXL-SC2G

INCH serration

Front-end spring clamp power chucks

  • EXTRA large through hole Ø 191 - 390 mm
  • Chuck size 510-900
  • Clamping with gas spring
  • Extra long rapid and clamping stroke

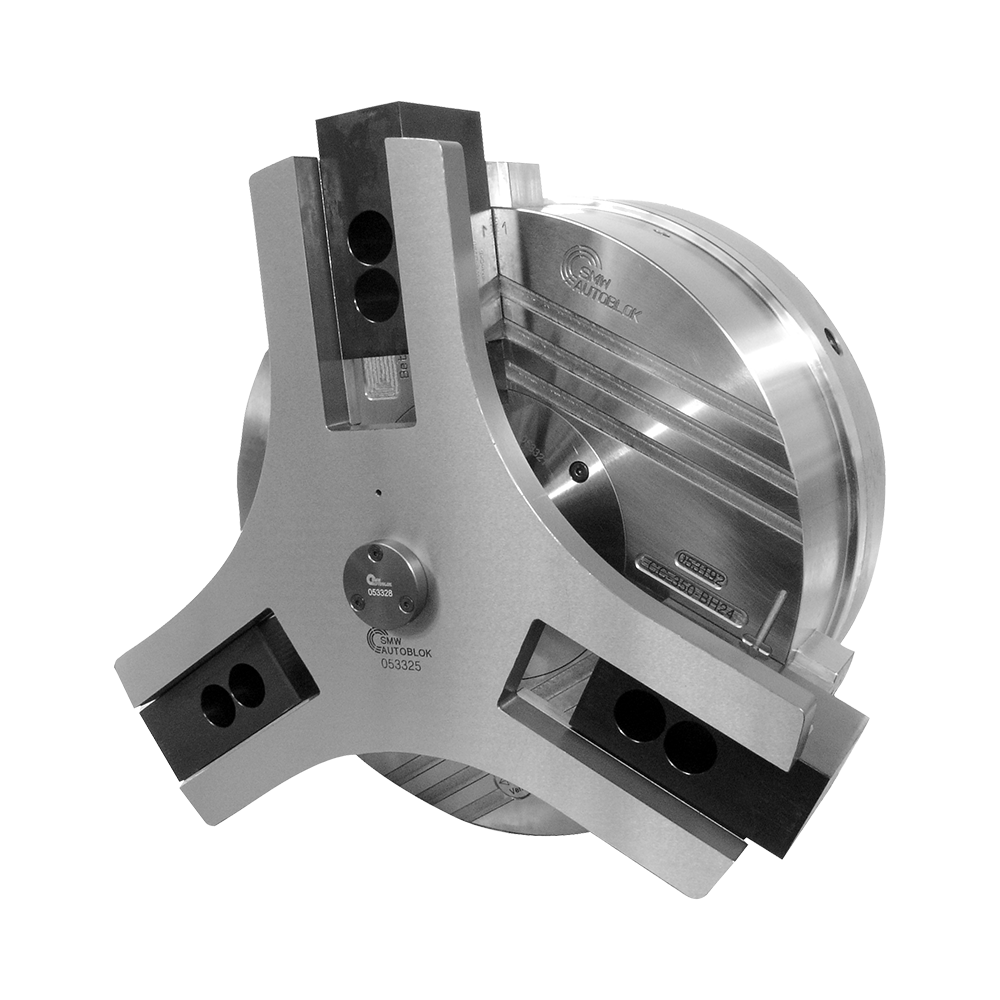

CC

CC

INCH serration

Stationary centering and dampening chuck, pneumatic Ø 240 - 470 mm

  • With integrated dampener
AC-BB

AC-BB

Control unit for SP and Big Bore chucks

1/2“ Design - 3/4“ Design

Electronic safety control unit for pneumatic chucks basic version

  • Pneumatic diagram
  • Wiring diagram
  • Electronic safety control unit
  • For SP and Big Bore chucks
  • Without pressure control
  • Without stroke control
AC-XN

AC-XN

Control unit for pneumatic chucks

1/2“ Design - 3/4“ Design

Electronic safety control unit for pneumatic chucks for all commen voltages

  • Pneumatic diagram
  • Electric diagram
SF-RZ

SF-RZ

Tongue & groove

2 Position hydraulic ring indexing chuck

  • 3 self-centering jaws
  • Large evacuation windows for easy chip flow
  • Fullyautomaticandcontrolledindexing
SF-RAZ

SF-RAZ

Tongue & groove

2 Position hydraulic ring indexing chuck

  • 3 self centering and 3 compensating jaws
  • Large evacuation windows for easy chip flow
  • Fully automatic and controlled indexing
  • Hydraulic actuation

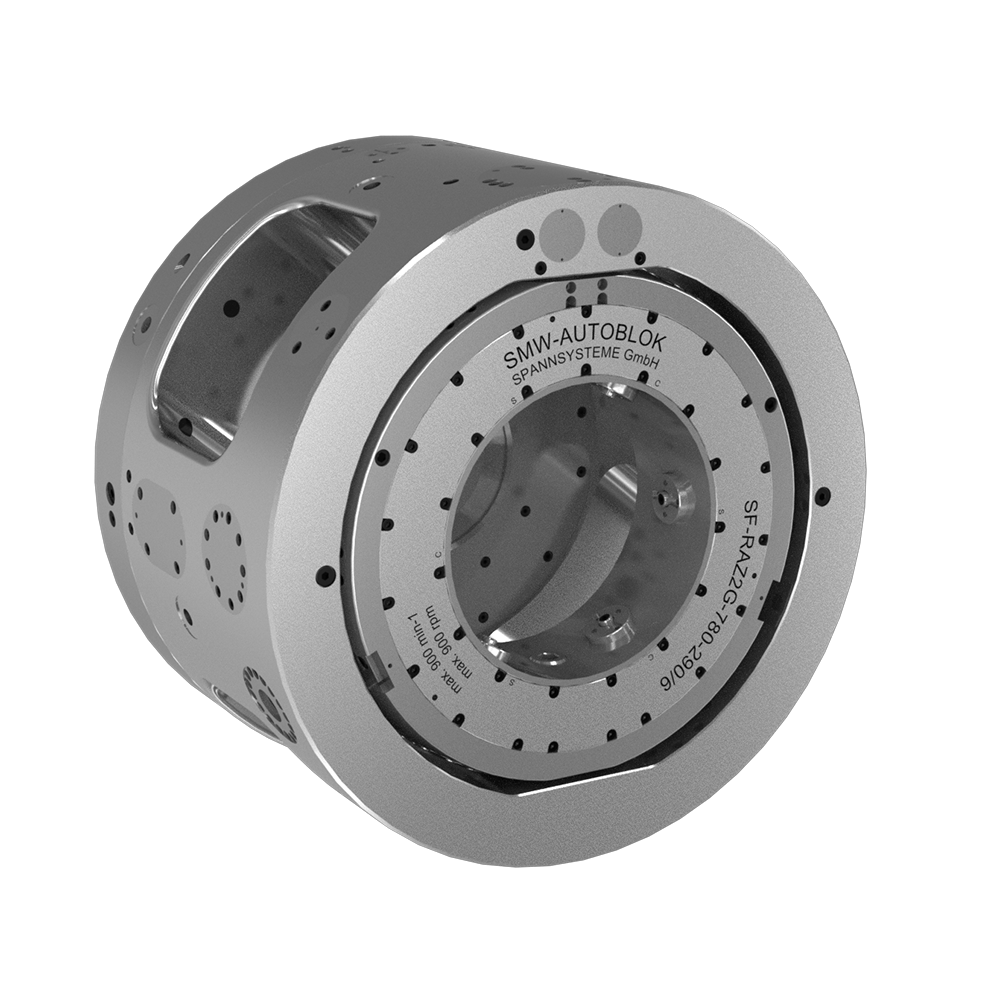

SF-RAZ2G

SF-RAZ2G

Tongue & groove

2 Position hydraulic ring indexing chuck

  • 3 self centering and 3 compensating jaws
  • Very compact design
  • Fully automatic and controlled indexing
  • Hydraulic actuation

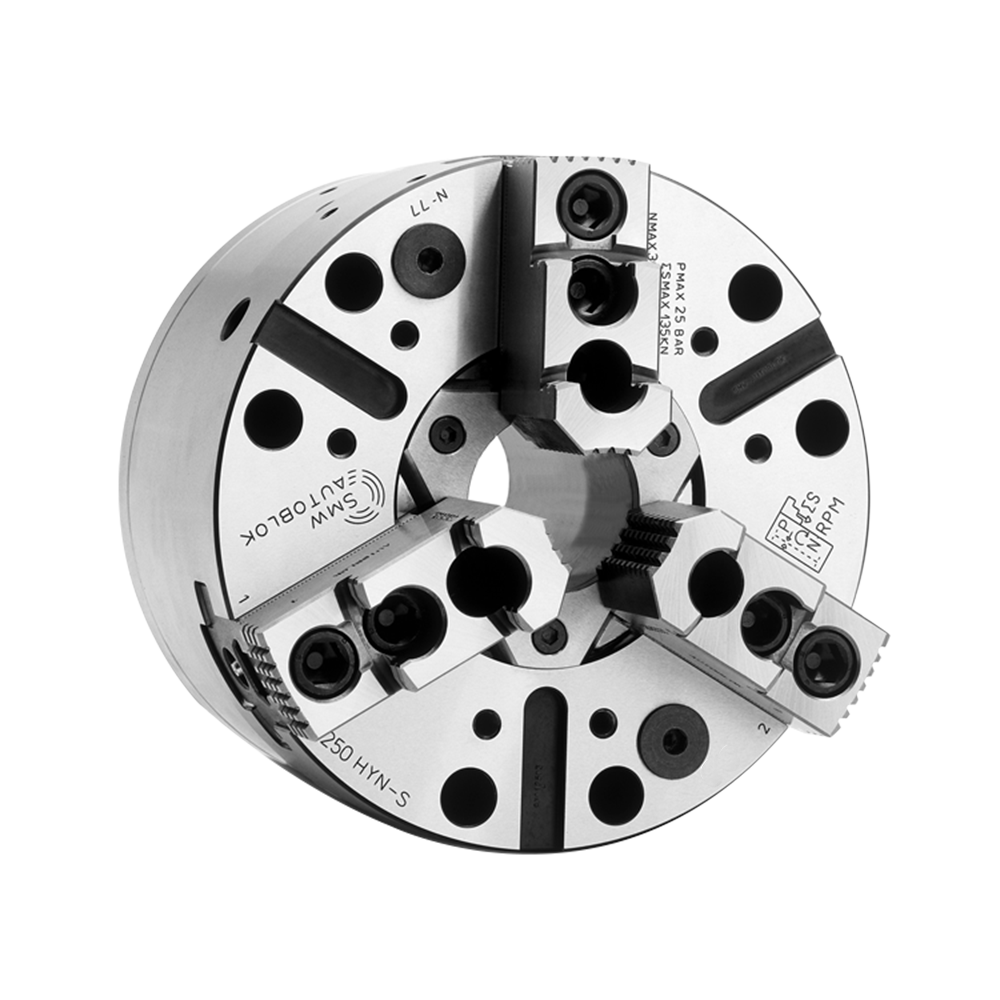

HYND-S

HYND-S

INCH serration

Hydraulic front end chuck Ø 180 - 400 mm

  • Oil feed through spindle wall
  • 3 and 4 jaws

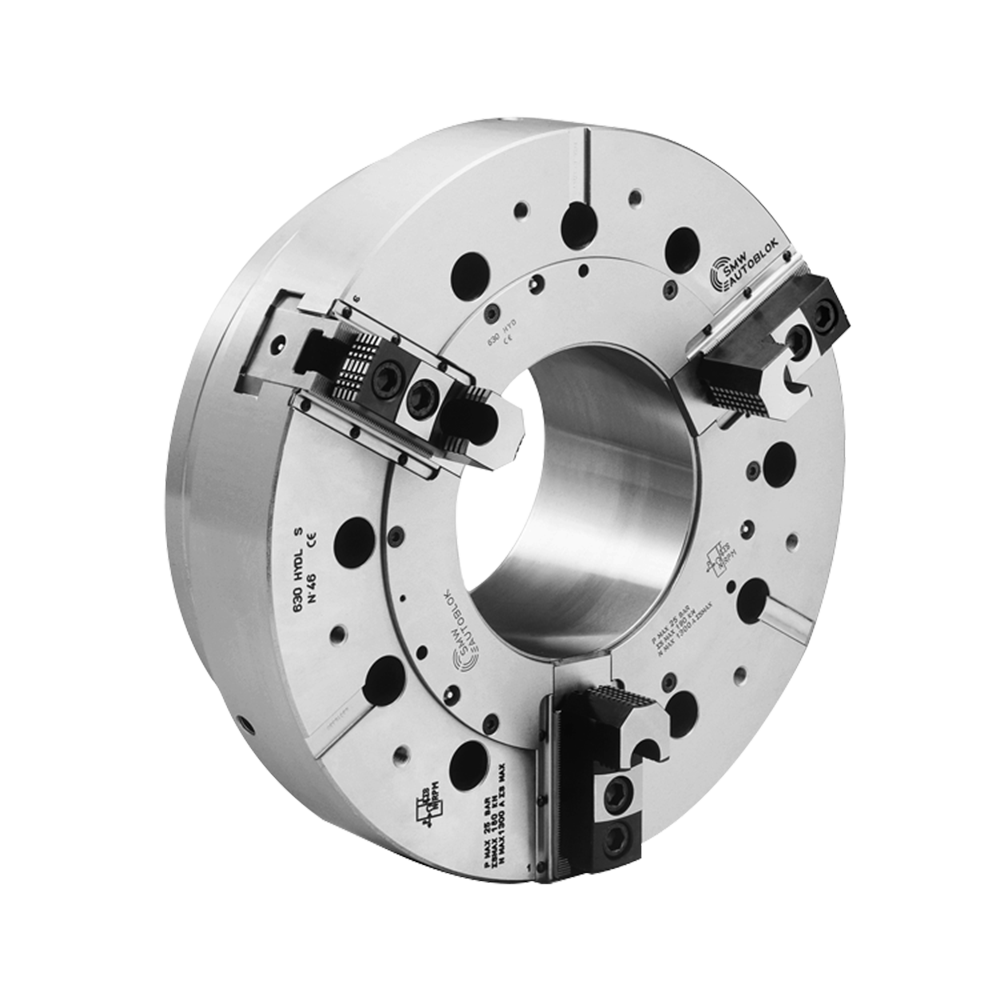

HYDL-S

HYDL-S

long stroke

INCH serration

Hydraulic front end chuck Ø 500 - 800 mm

  • Oil feed through spindle wall
  • 3 jaws
